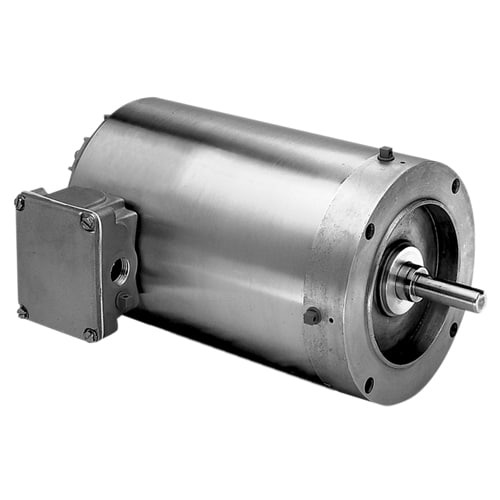

1 HP U.S. Motors Stainless Steel 56HC 1750 RPM, TENV, 1750 RPM, Three Phase C-Face AC Motor | 230 / 460 VAC | 2.9 Amps @ 230 VAC 1.4 Amps @ 460 VAC | 60 Hz WDS1S2AHC

Discount

-19% $ 1170 39 List: ~~$1453.00~~

CALL OR EMAIL US TO CHECK AVAILABILITY.

Need Member, Reseller, or OEM Pricing?

Estimated Repair Price: $380.00+ (Our Minimum)

Request a Repair Quote

Description

Model_Number:	BK15
PRODUCT NAME:	1 HP – TE – 1750
PHASETYPE:	3_PHASE
MOTOR ENCLOSURE:	TE
HORSEPOWER:	1
KILOWATTS:	0.7
POLES:	4
NUMBER SPEEDS:	1
RPM:	1750
RPM 2:	1750
RPM 3:	1735
HERTZ:	60
VOLTS PRIMARY:	208-230/460
VOLTS :	460
VOLTS 2:	230
VOLTS 3:	208
FRME :	56
SHAFT CODE:	HC
MOUNTING:	HORZ-FOOTED
ASSEMBLY POSITION:	F-1
MOTOR TYPE:	SSN
AMBIENT:	40
ROTATION:	DUAL
SERVICE FACTOR:	1.15
STARTCAPMFD:	N\A
SHIPPING WEIGHT:	39
BREAKDOWN TORQUE:	515
BREAKDOWN TORQUE UOM:	PERCENT OF FLT
LOCKED ROTOR TORQUE:	403
LOCKED ROTOR TORQUE UOM:	PERCENT OF FLT
INSULATION CLASS:	F
KVA CODE LETTER:	M
LOCKED ROTOR AMPS:	13.5
NEMA NOMINAL EFFICIENCY:	85.5
FULL LOAD AMPS PRIMARY:	3.1-2.9/1.4
SERVICE FACTOR AMPS PRIMARY:	3.4-3.2/1. 6

DATE:

8/22/2019

P.O. NO.:

Order/Line NO.:

TO:

Model Number:	BK15
Catalog Number:	WDS1S2AHC
WDS1S2AHC,TENV,STD,AC MTR
60,208-230(ALT DOE WDS1P2AHC)
SSN,1HP,4P,56HC

REVISIONS:

ALL DOCUMENTS HEREIN ARE CONSIDERED CERTIFIED BY NIDEC MOTOR CORPORATION.

THANK YOU FOR YOUR ORDER AND THE OPPORTUNITY TO SERVE YOU.

Features:

HorsePower . . . . . . . . 1.00

Enclosure. . . . . . . . . TE

Poles. . . . . . . . . . . 04/00

RPM (Full Load). . . . . . 1750

Motor Frame Size . . . . . 56HC

Phase. . . . . . . . . . . 3

Voltage. . . . . . . . . . 460-230-208

Motor Type Code. . . . . . SSN

Rotor Inertia (LB-FT²)

Bearing Number PE (Shaft)

Bearing Number SE (OPP)

MODEL NO.	CATALOG NO.	PHASE	TYPE	FRAME
BK15	WDS1S2AHC	3	SSN	56HC

ORDER NO.

LINE NO.

MPI:	69007	69008	69009
HP:	1	1	1
POLES:	4	4	4
VOLTS:	460	230	208
HZ:	60	60	60
SERVICE FACTOR:	1.15	1.15	1.15
EFFICIENCY (%):
S.F.	85.3	85.3	84.1
FULL	85.5	85.5	84
3/4	84.9	84.9	85.2
1/2	81.9	81.9	83.2
1/4	72.3	72.3	74.9
POWER FACTOR (%):
S.F.	79.3	79.3	83.2
FULL	76	76	80.6
3/4	67.7	67.7	73.7
1/2	54.8	54.8	61.4
1/4	35.5	35.5	40.7
NO LOAD	9	9	9.5
LOCKED ROTOR	64.2	64.2	62.8
AMPS:
S.F.	1.6	3.2	3.4
FULL	1.4	2.9	3.1
3/4	1.2	2.4	2.5
1/2	1	2.1	2
1/4	0.9	1.8	1.7
NO LOAD	0.9	1.8	1.6
LOCKED ROTOR	13.5	26.9	23.8
NEMA CODE LETTER	M	M	K
NEMA DESIGN LETTER	B	B	B
FULL LOAD RPM	1750	1750	1735
NEMA NOMINAL / EFFICIENCY (%)	85.5	85.5	84
GUARANTEED EFFICIENCY (%)	82.5	82.5	81.5
MAX KVAR	0.6	0.6	0.5
AMBIENT (°C)	40	40	40
ALTITUDE (FASL)	3300	3300	3300
SAFE STALL TIME-HOT (SEC)	21	21	28
SOUND PRESSURE (DBA @ 1M)	54	54	54
TORQUES:
BREAKDOWN{% F.L.}	515	515	410
LOCKED ROTOR{% F.L.}	403	403	315
FULL LOAD{LB-FT}	3	3	3
