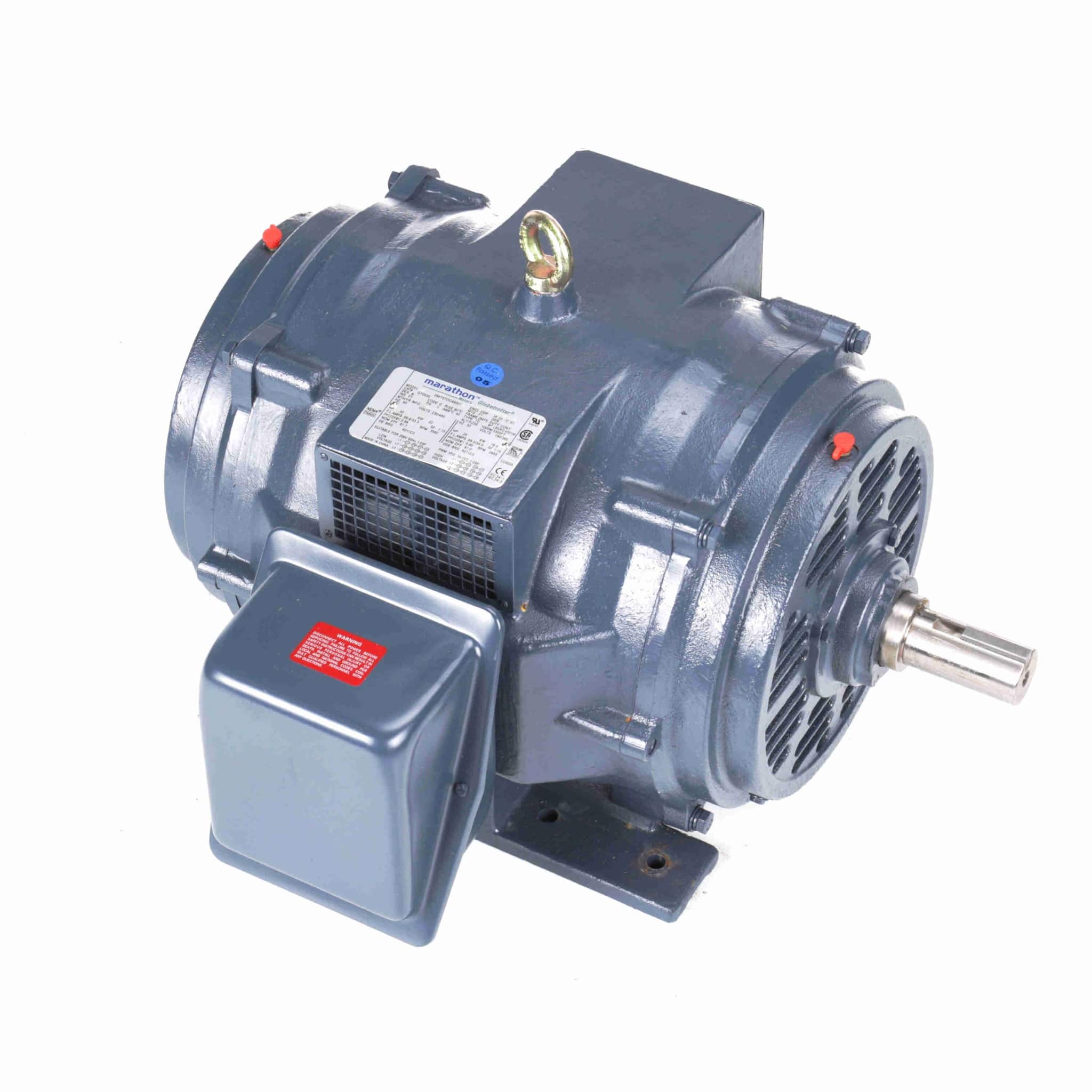

General Purpose Motor, 10 HP, 3 Ph, 60 Hz, 208/416 V, 1800 & 1800 RPM, 215T Frame, DPAUTHENTIC FACTORY SEALED, FULL WARRANTY

General Purpose Motor, 10 HP, 3 Ph, 60 Hz, 208/416 V, 1800 & 1800 RPM, 215T Frame, DP

$ 1934 00

CALL OR EMAIL US TO CHECK AVAILABILITY.

Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Need Member, Reseller, or OEM Pricing?

Need a quote for multiple items? Add each item to your cart, then request a quote from the cart page.

Estimated Repair Price: $680.00+ (Our Minimum)

Request a Repair Quote

Product Specifications

ManufacturerMarathon Electric
SKU141287.00
Enclosure:IP22
Horsepower10.0 HP
Input Voltage(s):208 VAC Input,
416 VAC Input
Input Phase:Three Phase Input
RPM:1765
Frequency60 Hz
Rated Current:29 Amps @ 208 VAC Input,
14.5 Amps @ 416 VAC Input,
Mounting TypeRigid Base - Foot Mounted (B3)
Frame:215T
Frame MaterialRolled Steel
Service Factor1.15
Height20 in
Width24 in
Depth24 in
Weight138 lbs
