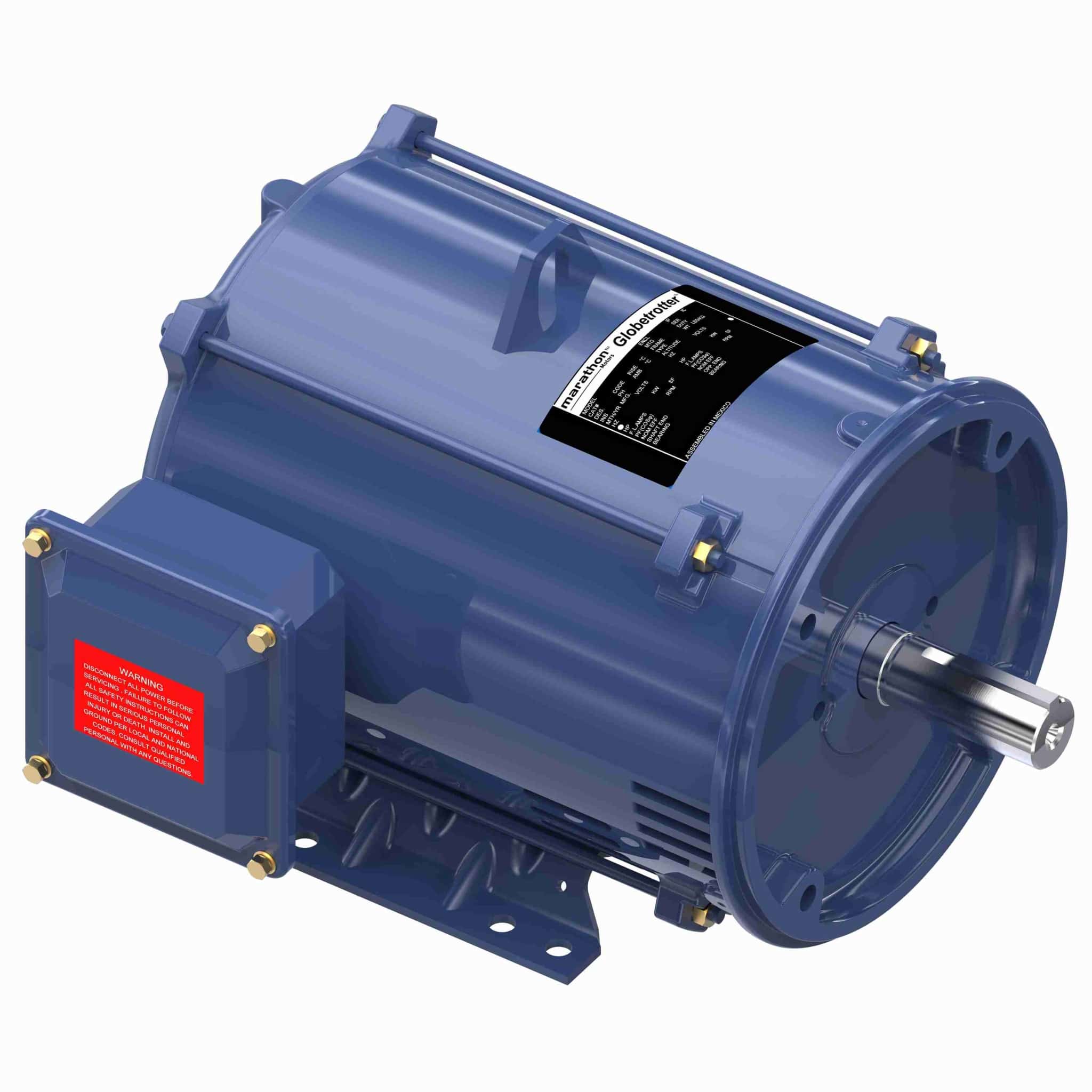

General Purpose Motor, 100 & 75 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 404TC Frame, DPAUTHENTIC FACTORY SEALED, FULL WARRANTY

General Purpose Motor, 100 & 75 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 404TC Frame, DP

$ 14525 28

In Stock

Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Need Member, Reseller, or OEM Pricing?

Need a quote for multiple items? Add each item to your cart, then request a quote from the cart page.

Estimated Repair Price: $4,357.58 - $10,167.70

Request a Repair Quote

Product Specifications

ManufacturerMarathon Electric
SKU404TTDCD6028
Enclosure:IP22
Horsepower75.0 HP,
100.0 HP
Input Voltage(s):208 - 230 VAC Input,
460 VAC Input
Input Phase:Three Phase Input
RPM:1487, 1788
Frequency60 Hz
Rated Current:250 Amps @ 208 - 230 VAC Input,
125 Amps @ 460 VAC Input,
Mounting TypeRigid Base - Foot Mounted (B3)
Frame:404TC
Frame MaterialCast Iron
Service Factor1.15
Height34.14 in
Width36 in
Depth36 in
Weight1219 lbs
