Product Specifications

Model #	1101095698-10
Height	30 in
Width	31 in
Depth	43 in
Weight	1350 lbs
Learn More	You can hover your mouse over highlighted product specs to learn more.

Description

MACCUSTOMMOTOR 14wk delivery

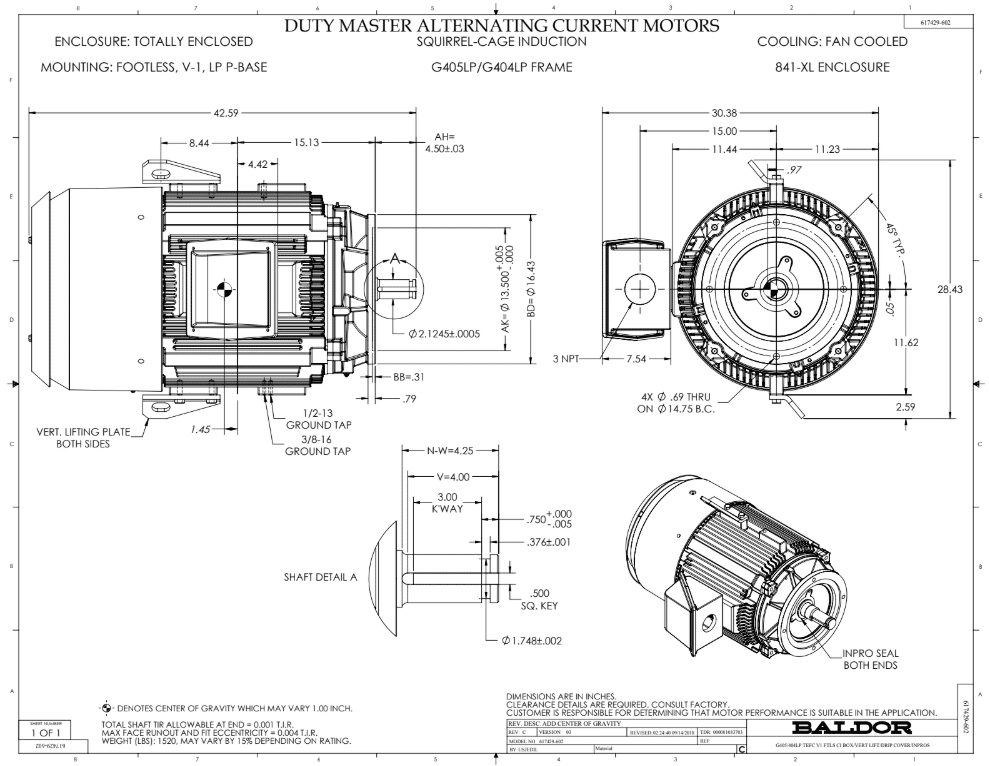

Baldor 100HP 1800 405LP TEFC – 1101095698-10

Basic Configuration: Medium AC Motors
Power
100 HP

Enclosure
TEFC

Enclosure Enhancement / Ingress Protection

Severe Duty / IP55

Efficiency
Premium Eff. (NEMA 12-12)

Frame Size
405LP

Duty
CONT

Speed (RPM)
1800

Bearing Type
Ball / Thrust

Phase/Hertz/Voltage
3 / 60 / 460

Insulation System Insulation
H
Service Factor
1.15

Division
None

Class 1, Group / Class 2, Group
None / None

Temp Code
None

Motor Standard
NEMA-T

Design Letter
B
Ambient (oC)
40
Altitude (ft)
3300

BASIC CONFIGURATION
Partial Motor Design No
Frame Band 316
Customer Application General Industrial
Temp Code None
ELECTRICAL
Ambient Minimum -25C
Winding Type Random
Starting Method Standard Start
Standard NEMA Inertia 441
Motor Space Heater Yes
Space Heater Rated for 1Ph/50-60Hz/100-125V
Space Heater Operating Voltage 115

Maximum Sheath Temperature Standard(140 Deg C)
Space Heater Qty 1
Space Heater To Main Cbox No
ACB Space Heater Placement Auxillary Conduit Box 1
MOUNTING
Mounting Flange – DE P-Base
Mounting Position V-1
Frame Mounting Footless
Drive Method Direct
Mounting Orientation Vertical
P-Base Diameter 16.5 in – LP
Thrust Type Medium – LP
Thrust Direction Down
P-Base Thrust Reqd 1830.00
P-Base B10 Bearing Life 100,000 Hrs (11.4 Yrs)
Vertical Lifting Required Yes
Shaft – Special Material 17-4PH Stainless
Shaft Extension LP
BEARINGS
Drive End Seal Inpro
Opposite Drive End Seal Inpro
Lube Type Grease
Grease Type Exxon Polyrex EM
Grease Fittings Rqd Yes
Grease Fitting Type Alemite 1610 or equal
Grease Relief Fittings Rqd Yes
Relief Fitting Type Alemite
MECHANICAL
Balance Ultra-Standard (0.08 in/sec)
Rotation Facing ODE Bi-directional
Fan Material Standard
Ingress Protection IP55
Drip Cover Required Yes
Drip Cover Type Footless with Vert. Lifting
Paint System Two Coat Epoxy (C3)
Paint Color Specification Standard Epoxy
Paint Color Charcoal Gray Metallic
Baldor-Reliance Paint Spec No 004824-007CCZ / MG1025G05
Frame Grounding Required Yes
Ground Pad Type Drilled & Tapped Hole in Frame
Ground Pad Location Frame – same side as main CB
Auto Drain Type “T” Drain – Stainless Steel
MONITORING DEVICES
Winding Thermostat Yes
Winding Thermostat Type High Limit
Thermostat High Limit Contacts Normally Closed

Winding Thermostat Qty 3 Total – One per Phase
Wdg Thermostat To Main Cbox No
CONDUIT BOX
Main Conduit Box Required
Main Conduit Box Location Standard (side)
Main Conduit Box Material Cast Iron
Main Conduit Box Size Standard Oversize
Terminal Panel No
Lead Entry Location Toward Feet – Down
Conduit Box Auto Drain Yes
Grounding Yes
Bus Bars / Standoffs No
Auxiliary Conduit Box Required Conduit Box Required
How many Aux Conduit Boxes 1
Auxiliary Conduit Box 1 Size Std (180-3/4)
Auxiliary Conduit Box 1 Loc ODE – Same Side as Main CB
