Product Specifications
| Model # | IDVSNM3661T | ||
| Height | 14 in | ||
| Width | 14 in | ||
| Depth | 20 in | ||
| Weight | 112 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
20
Save $603
603$
20%
603
$
NEW, FACTORY SEALED!

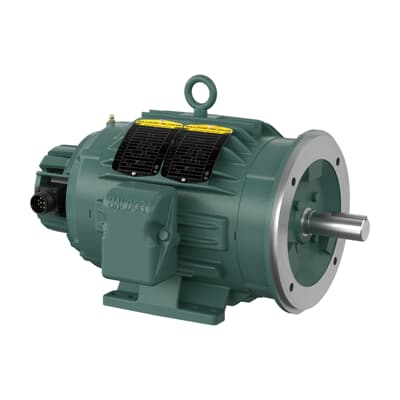

Baldor 3HP, 1760 RPM, 3PH, 60HZ, 182TC FRAME, TENV, F1 MOUNT, IDVSNM3661T
Discount
-20%
$
2440
03
List: $3043.00
In Stock
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $732.01 - $1,708.02
Description
Catalog Number IDVSNM3661T
Enclosure TENV
Frame 182TC
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group None
Haz Area Division Not Applicable
Motor Letter Type Three Phase
Output @ Frequency 3.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals UR
CSA
CSA
Ambient Temperature40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage4.300 A @ 460.0 V
8.600 A @ 230.0 V
8.600 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Front Face Code Encoder/Feedback Device
Front Shaft Indicator No Key Or Flat
Heater Indicator No Heater
High Voltage Full Load Amps4.3 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed6000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 0636M
Mounting Arrangement F1
Number of Poles 4
Overall Length 17.85 IN
Power Factor 73
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor1.00
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device – Bearing None
Thermal Device – Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
