Description
| Catalog Number | A36-6924-0043 | Output | 40.000 HP | ||
|---|---|---|---|---|---|
| Alternate Catalog Number | RPM | 1190 | Pallet Quantity | 0 | |
| Specification Number | A36-6924-0043 | Frame | 364T | Weight | 908.000 LB |
| Multiplier | CM | Enclosure | TEFC | Item Type | MOTOR |
| Manufacturing Plant | Voltage | 460 | Poles | 06 | |
| Class | CUSTOM | Type | A36062M | Status | Active |
| Commodity Code | 8501528040 | Origin | US |
Enclosure TEFC
Frame 364T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group None
Haz Area Division Not Applicable
Motor Letter Type Three Phase
Output @ Frequency40.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1200 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
Agency Approvals CSA EEV
CCSA US
CCSA US
Ambient Temperature40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Mobil SHC 220 (Athens Only)
Current @ Voltage49.400 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load94.1 %
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Heater Indicator No Heater
High Voltage Full Load Amps49.4 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating IP55
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size3 @ 4 AWG
Motor Standards NEMA
Motor Type A36062M
Mounting Arrangement F2
Number of Poles 6

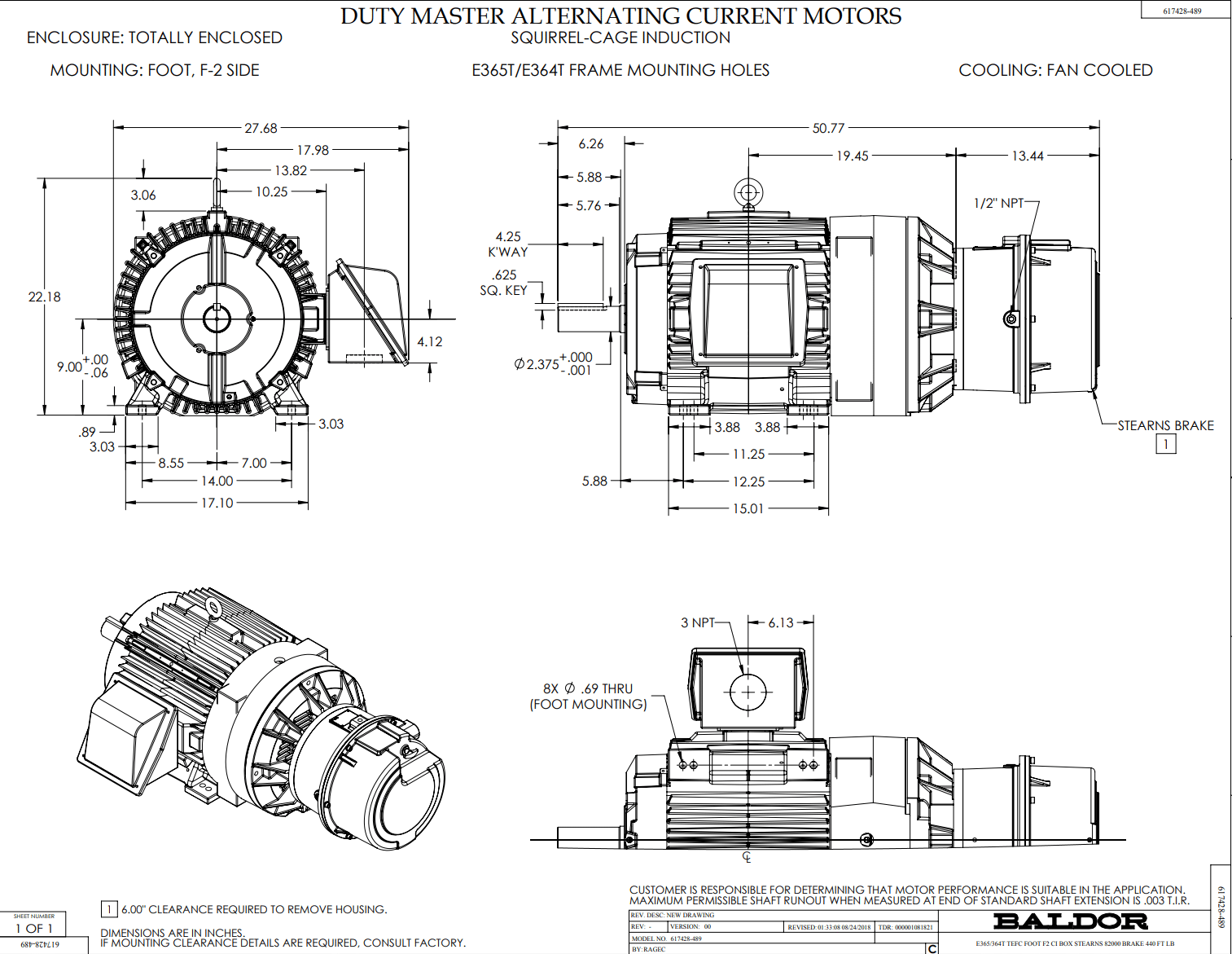

Overall Length 50.77 IN
Power Factor80
Product Family General Industrial
Pulley End Bearing Type Roller
Pulley Face Code Standard
Service Factor 1.00
Shaft Diameter2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed1190 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device – Winding None
