Product Specifications
| Model # | IDDRPM405004R2 | ||
| Height | 35 in | ||
| Width | 46 in | ||
| Depth | 50 in | ||
| Weight | 2230 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
28
Save $23,703
23703$
28%
23703
$
NEW, FACTORY SEALED!
Baldor 500HP 1750 460V RL4034 DPFV F1 – IDDRPM405004R2 – CALL BEFORE ORDERING
Discount
-28%
$
60619
09
List: $84322.00
CALL OR EMAIL US TO CHECK AVAILABILITY.
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $18,185.73 - $42,433.36
Description
Baldor 500HP 1750 460V RL4034 DPFV F1 – IDDRPM405004R2
8-16wk Delivery
Catalog Number IDDRPM405004R2
Enclosure DPFV

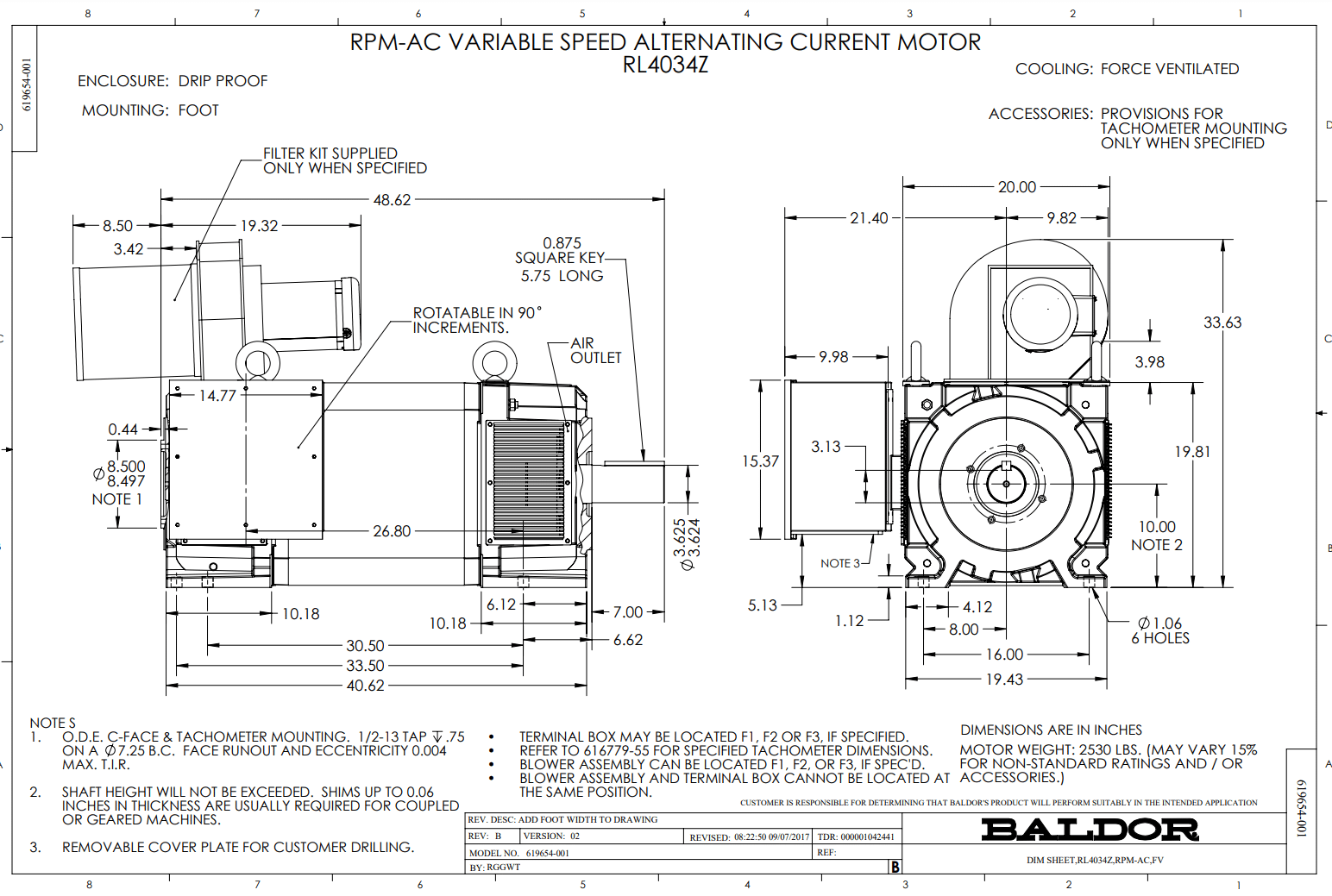

Frame RL4034Z
Frame Material Exposed Laminations
Frequency 60.00 Hz
Output @ Frequency 500.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ
Agency Approvals CCSA US
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage5 59.000 A @ 460.0 V
Duty Rating CONT
Feedback Device ENCODER
Frame Prefix RL
Heater Indicator No Heater
High Voltage Full Load Amps 559.0 a
Insulation Class H
IP Rating NONE
Motor Standards NEMA
Mounting Arrangement F1
Overall Length 57.12 IN
Product Family General Industrial
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.00
Shaft Diameter 3.624 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1778 rpm
Starting Method Full Voltage
Thermal Device – Bearing None
Thermal Device – Winding Normally Closed Thermostat
Certifications:
