Product Specifications
| Model # | F40-A000-0270 | ||
| Height | 37 in | ||
| Width | 37 in | ||
| Depth | 54 in | ||
| Weight | 2160 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
24
Save $10,360
10360$
24%
10360
$
NEW, FACTORY SEALED!
Baldor 60HP 240/460V FL4034 TEAO V3 – F40-A000-0270 – CALL BEFORE ORDERING
Discount
-24%
$
33670
40
List: $44030.53
CALL OR EMAIL US TO CHECK AVAILABILITY.
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $10,101.12 - $23,569.28
Description
F40-A000-0270 60HP,240,460V,FL4034,TEAO,V3
16-18wk Delivery
Enclosure TEAO

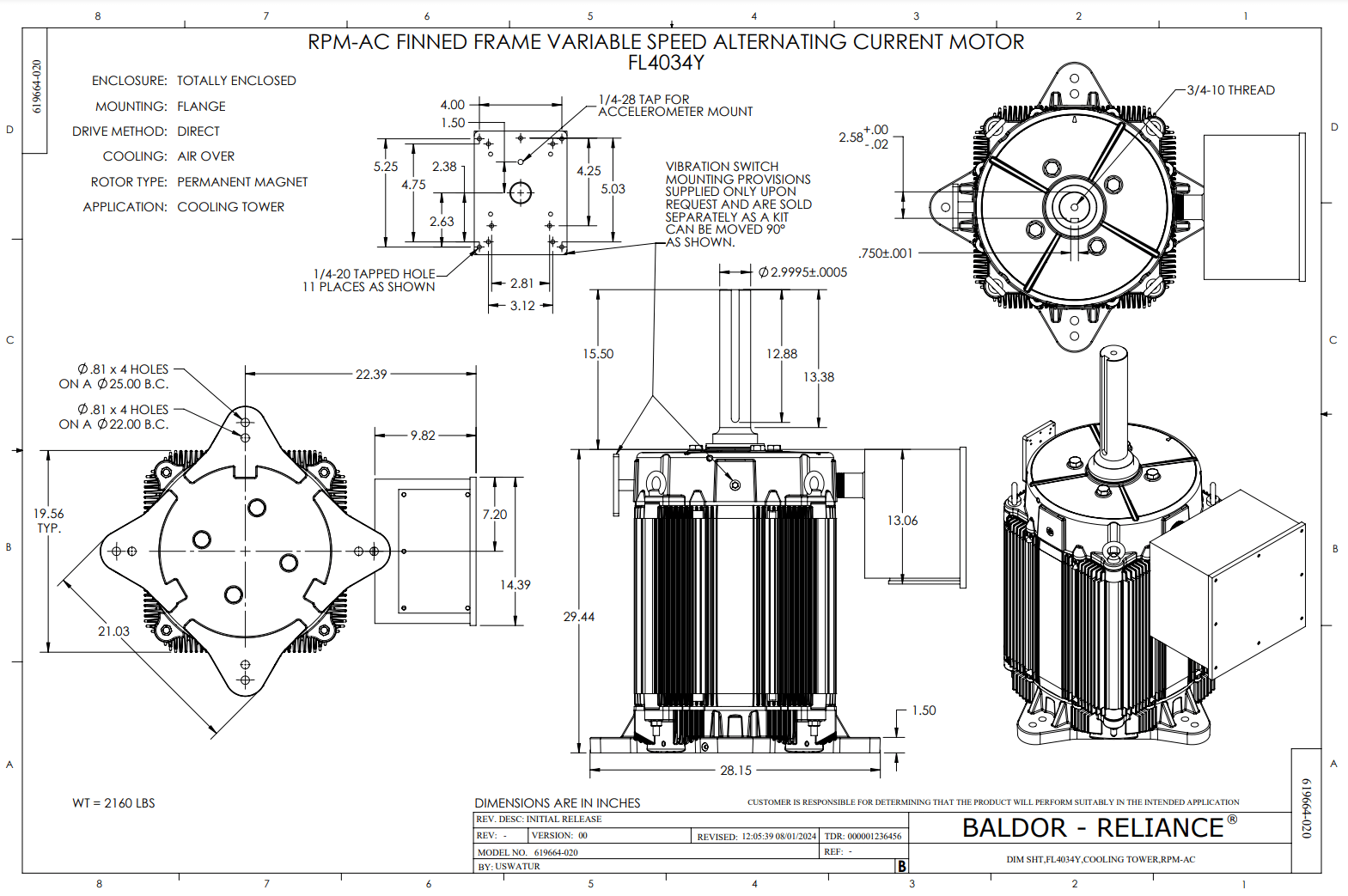

Frame FL4034Y
Frame Material Exposed Laminations
Frequency 16.00 Hz
Output @ Frequency 60.000 HP @ 16 HZ
Phase 3
Synchronous Speed @ Frequency 750 RPM @ 16 HZ
Voltage @ Frequency 460.0 V @ 16 HZ
Agency Approvals C UR US
CCSA US
WEEE
CCSA US
WEEE
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Mobiltemp SHC 32
Current @ Voltage 68.100 A @ 460.0 V
Duty Rating CONT
Feedback Device NO FEEDBACK
Frame Prefix FL
Heater Indicator Heater Included, 120 V
High Voltage Full Load Amps68.1 a
Insulation Class H
Motor Standards NEMA
Mounting Arrangement V3
Overall Length 44.94 IN
Product Family Cooling Tower Direct Drive
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.00
Shaft Diameter 2.999 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed240 rpm
Starting Method Full Voltage
Thermal Device – Bearing None
Thermal Device – Winding Normally Closed Thermostat
Certifications:
