Description
Key Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-365T models steel frame, 404T-449T models cast iron frame
- Inverter Duty 20:1 Variable Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
- 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
Specifications
| Phase | 3 | Output HP | 30 & 25 Hp |
| Output KW | 22.4 & 18.7 kW | Voltage | 230/460 & 190/380 V |
| Speed | 1775 & 1475 rpm | Service Factor | 1.15 & 1.15 |

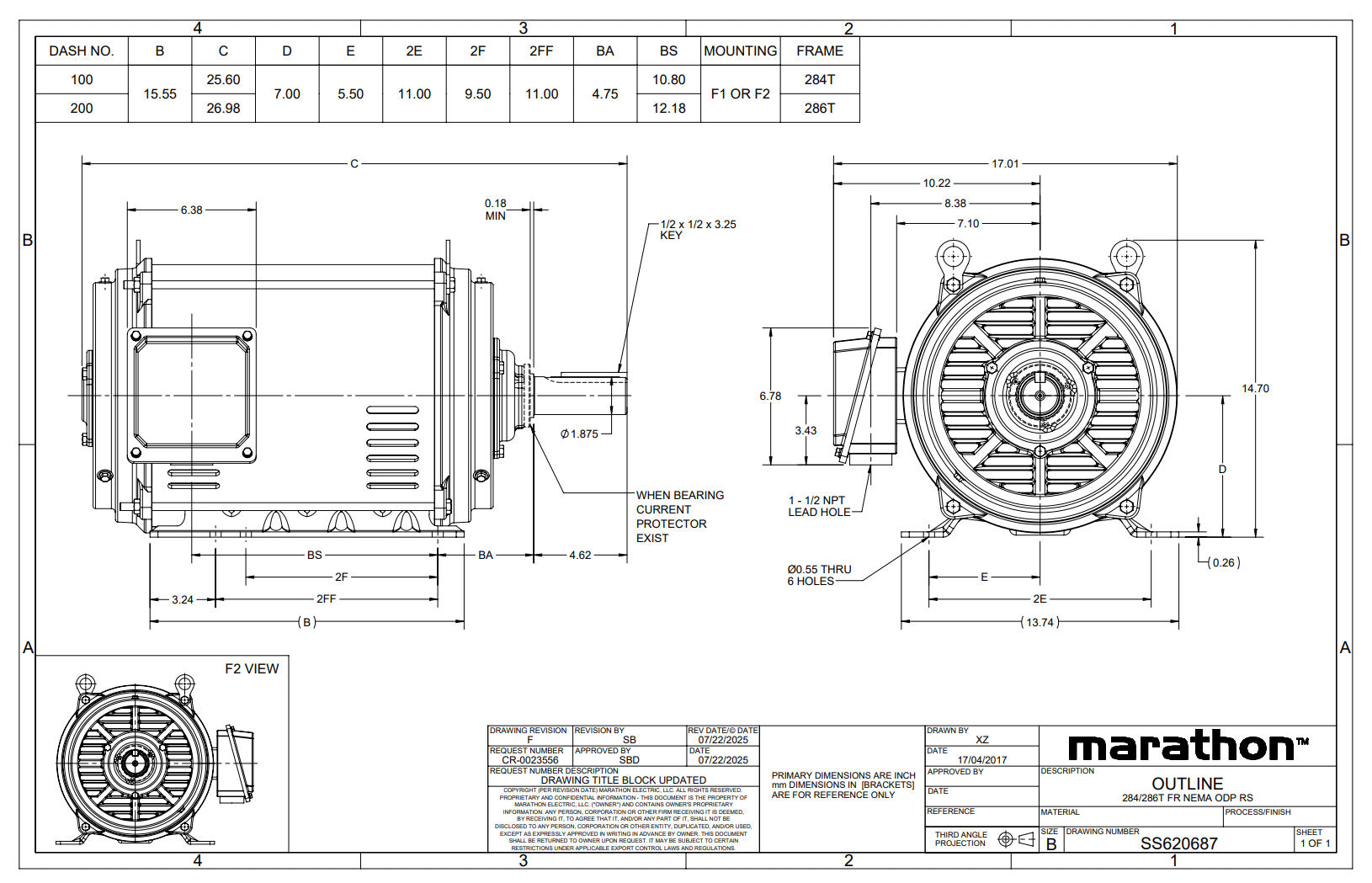

| Frame | 286T | Thermal Protection | No Protection |
| Efficiency | 94.1 & 93 % | Ambient Temperature | 40 °C |
| Frequency | 60 & 50 Hz | Current | 73/36.5 & 73/36.5 A |
| Power Factor | 82 | Duty | Continuous |
| Insulation Class | F | Design Code | B |
| KVA Code | G | Drive End Bearing Size | 6311 |
| Opp Drive End Bearing Size | 6210 | Enclosure | Drip Proof |
| UL | Recognized | CSA | Y |
| CE | Y | IP Code | 22 |
| Number of Speeds | 1 |
