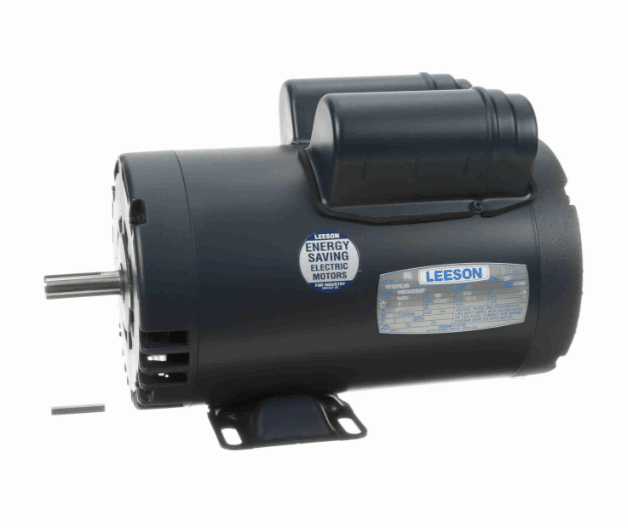

Leeson Air Compressor Motor, 5 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56Y Frame, DP - 111275.00
On Sale
Sale!
%
Off
34
Save $442
442$
34%
442
$
NEW, FACTORY SEALED!

Leeson Air Compressor Motor, 5 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56Y Frame, DP – 111275.00

Discount
-34% $ 857 34 List: $1299.00

In Stock

Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Need Member, Reseller, or OEM Pricing?

Estimated Repair Price: $680.00+ (Our Minimum)

Request a Repair Quote

Product Specifications

Model #111275.00
Height8 in
Width8 in
Depth14 in
Weight47 lbs
Learn MoreYou can hover your mouse over highlighted product specs to learn more.

Description

Part #:111275.00



Catalog #:111275.00



Model #:P6K34DB5F
  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
  • Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
  • Heavy-duty construction ensures motor durability.

Nameplate Specifications

Phase: 1 Output HP: 5 Hp
Output KW: 3.7 kW Voltage: 230 V
Speed: 3450 rpm Service Factor: 1
Frame: 56Y Enclosure: Drip Proof
Thermal Protection: Manual Efficiency: 82.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 20.8 A Power Factor: 95
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: E
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22
Number of Speeds: 1
