Product Specifications
| Model # | 128001.00 | ||
| Height | 10 in | ||
| Width | 11 in | ||
| Depth | 19 in | ||
| Weight | 87 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
54
Save $2,589
2589$
54%
2589
$
NEW, FACTORY SEALED!

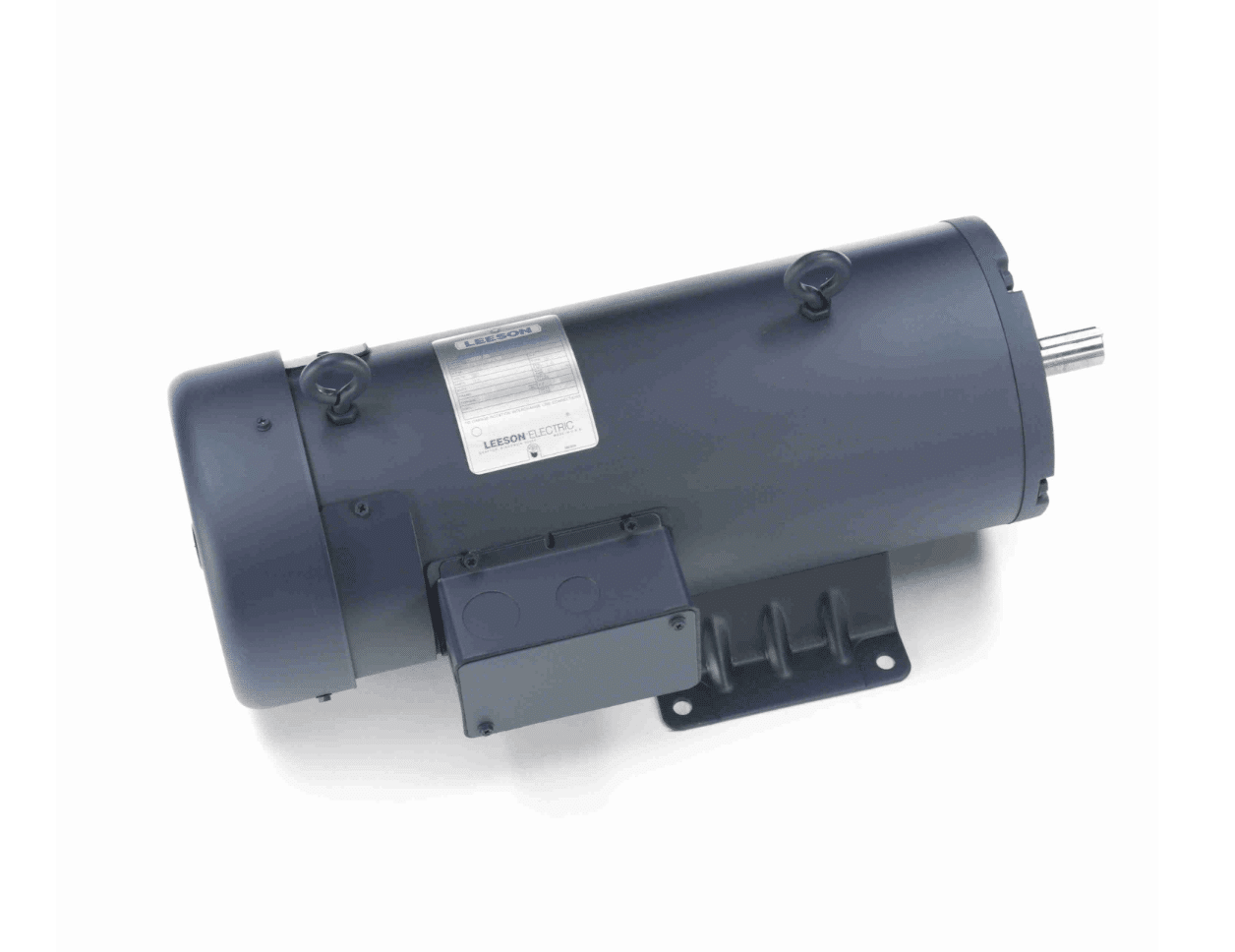

LEESON SCR Motor, 2 HP, 180 V, 1750 RPM, KS182TC Frame, TEFC – 128001.00
Discount
-54%
$
2196
97
List: $4786.00
In Stock
Description
KEY FEATURES
- UL and CSA Listed, Meeting NEMA MG1 standards.
- Brush holder design provides easy access for motor maintenance.
- Permanent magnet design ensures higher motor efficiency.
- Permanently lubricated sealed bearings extend the lifetime of the motor.
- Compatible with PWM or SCR type controllers.
- LEESON® motors. Motors and solutions at our core™
Nameplate Specifications
| Output HP: | 2 Hp | Output KW: | 1.5 kW |
| Voltage: | 180 V | Speed: | 1750 rpm |
| Service Factor: | 1.0 | Frame: | KS182TC |
| Enclosure: | Totally Enclosed Fan Cooled | Thermal Protection: | No Protection |
| Efficiency: | 78.8 % | Ambient Temperature: | 40 °C |
| Current: | 9.5 A | Duty: | Continuous |
| Insulation Class: | H | Drive End Bearing Size: | 6205 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Y | CE: | N |
