Overview

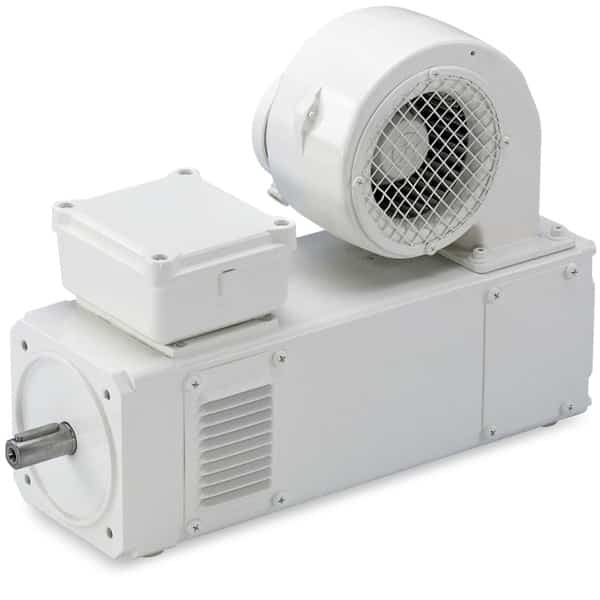

DC shunt-wound motor
Type MGFQUGX0-10022
Rated power 11.2 kW
Rated speed 2,950 r/min
Rated armature voltage 460 V
Rated armature current 27.5 A
Excitation – rated voltage 360 V
Excitation – rated current 1.3 A
Enclosure IP23S
Temperature class F
Operating mode S1
Motor protection Therm. cont. as NC contact
Terminal box position -2 – at the top
Motor design B34 C160
Cooling Blower 3~ 380 – 460 V AC
Rated fan current 0.11 A
Fan mounting radial
Fan position on the top
Fan worm to the front
Colour Primed
Weight / unit 65.000 KG / 143.301 LB
The delivery time is approximately 43 working days
