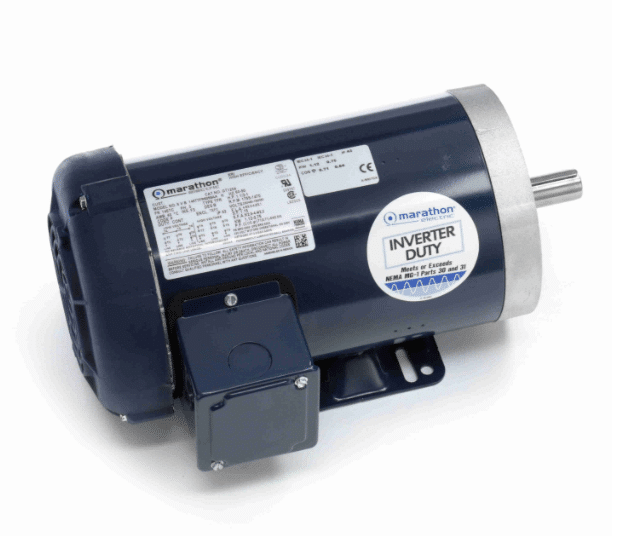

Marathon Globetrotter® General Purpose Motor, 1.50 & 1 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 145TC Frame, TEFC - GT1204
On Sale
Sale!
%
Off
70
Save $1,025
1025$
70%
1025
$
NEW, FACTORY SEALED!

Marathon Globetrotter® General Purpose Motor, 1.50 & 1 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 145TC Frame, TEFC – GT1204

Discount
-70% $ 439 16 List: $1464.00

In Stock

Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Need Member, Reseller, or OEM Pricing?

Estimated Repair Price: $680.00+ (Our Minimum)

Request a Repair Quote

Product Specifications

Model #GT1204
Height8.12 in
Width10.50 in
Depth16.38 in
Weight44 lbs
Learn MoreYou can hover your mouse over highlighted product specs to learn more.

Description

Marathon Globetrotter® General Purpose Motor, 1.50 & 1 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 145TC Frame, TEFC – GT1204



Part #:145TTFR6058



Catalog #:GT1204



Model #:145TTFR6058AA

Nameplate Specifications

Phase: 3 Output HP: 1.50 & 1 Hp
Output KW: 1.1 & 0.75 kW Voltage: 230/460 & 190/380 V
Speed: 1755 & 1470 rpm Service Factor: 1.15 & 1.15
Frame: 145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 86.5 & 85 %
Ambient Temperature: 40 °C Frequency: 60 & 50 Hz
Current: 4.6/2.3 & 4.2/2.1 A Power Factor: 71
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: P
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1
AN16GN0ABSACE 15 RE 13
