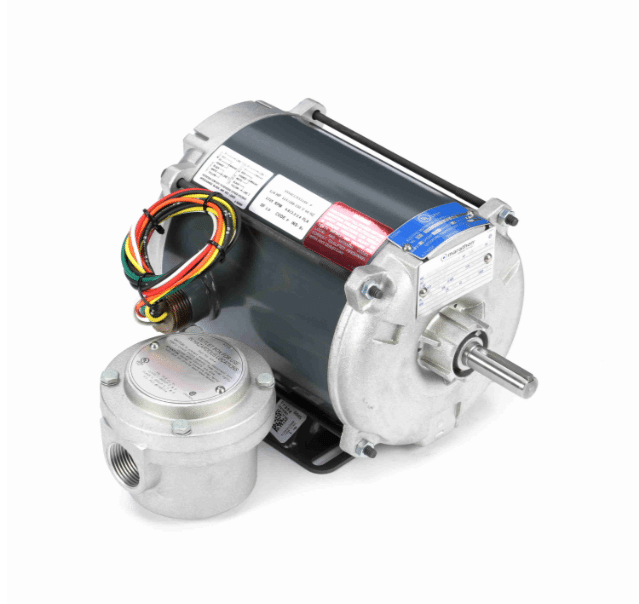

Marathon Hazardous Duty® Explosion Proof Motor, 0.25 HP, 1 Ph, 60 Hz, 115/230 V, 1800 RPM, 56 Frame, EPNV – G639

Discount

-41% $ 706 41 List: ~~$1190.00~~

In Stock

Need Member, Reseller, or OEM Pricing?

Estimated Repair Price: $680.00+ (Our Minimum)

Model #	56C17E5314H
Height	10 in
Width	12 in
Depth	12 in
Weight	26 lbs
Learn More	You can hover your mouse over highlighted product specs to learn more.

Description

Part #:056C17E5314

Catalog #:G639

Model #:56C17E5314H

Electrical Type:	Capacitor Start Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	11.97 in
Frame Length:	6.31 in	Shaft Diameter:	0.625 in
Shaft Extension:	2 in	Assembly/Box Mounting:	F1 ONLY

Phase:	1	Output HP:	0.25 Hp
Output KW:	0.19 kW	Voltage:	115/230 V
Speed:	1725 rpm	Service Factor:	1.00
Frame:	56	Enclosure:	Explosion Proof Non Ventilated
Thermal Protection:	Automatic	Efficiency:	65 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	4.8/2.4 A	Power Factor:	60
Duty:	Continuous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	P
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	UL Listed And CSA Certified	CSA:	Y
CE:	N	IP Code:	54
Number of Speeds:	1	Hazardous Location:	DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B
