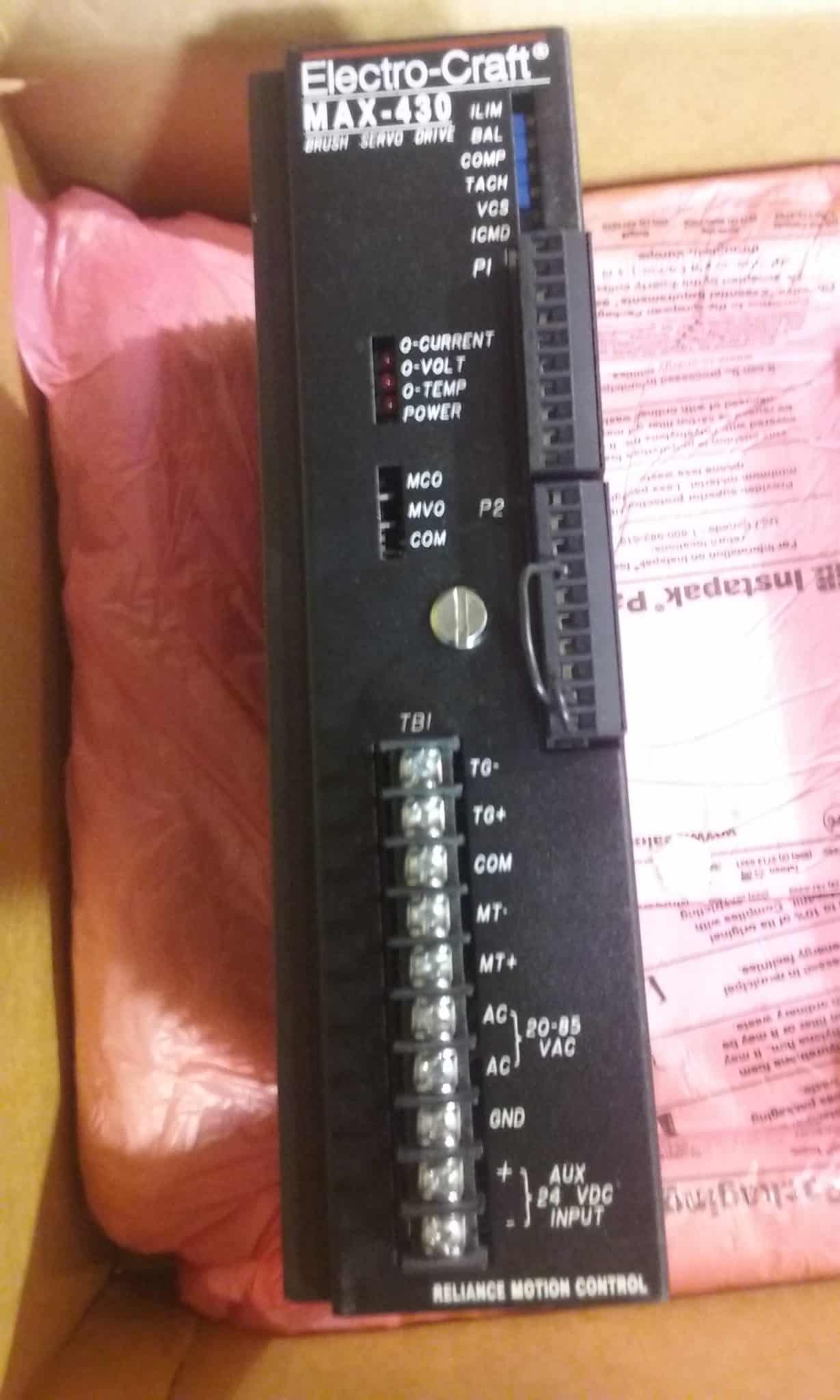

Electrocraft Servo Drive- Max430
Surplus Guarantee
All surplus equipment provided by Precision Electric comes with a 30 day guarantee or your money back. All equipment is in working condition and tested prior to shipping from our facility. If you have any questions or concerns do not hesitate to contact us.
Product Overview
MAX-430 series drives are designed to drive permanent magnet, brushtype, DC servo motors. The drives and motors are intended for use in a broad range of industrial servo applications, including machine tool and robotic applications, and are used in torque, velocity and position type servo systems. Each drive is a self-contained unit, ready for mechanical installation and electrical interconnections to the AC power transformer, motor-tachometer, and controller. The Electro-Craft MAX-430 is a controllable power source for brushtype, DC servo motors. Usually configured as a controlled velocity system, the drive interfaces with a controller which provides an analog voltage signal proportional to the desired motor velocity. The MAX-430 drive can also operate in torque mode (or current mode), such that a controller provides an analog voltage signal proportional to the desired motor torque. Refer to the “System Functional Diagram” shown below. The MAX-430 drive contains circuitry for protection of both motor and drive from effects of various overload and short circuit conditions. The command signal to the power drive can be monitored at the ICMD output. The MAX-430 is a 16 kHz pulse-width modulation (PWM), switching type drive that reduces system power losses. Motor speed is precisely controlled down to a maximum torque, low velocity condition.
