Product Specifications
| Model # | D12CP2PH9 | ||
| Height | 8 in | ||
| Width | 8 in | ||
| Depth | 12 in | ||
| Weight | 25 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
41
Save $249
249$
41%
249
$
NEW, FACTORY SEALED!

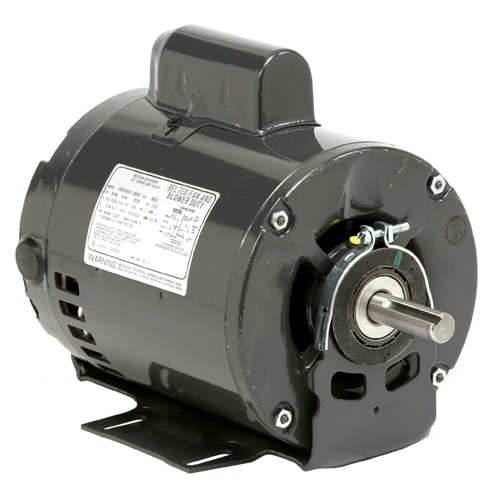

US-Nidec D12CP2PH9 General Purpose Motor
Discount
-41%
$
360
34
List: $608.85
In Stock
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $680.00+ (Our Minimum)
Description
Phase: Single | Electrical Type: CAP START / CAP RUN | Capacitor Run MFD: 30.00 MFD | Capacitor Start MFD: 709.50 MFD | Capacitor Run Voltage: 370 V | HP: 1/2 | KW: 0.4 | Stack: 2.5″” | RPM: 1725 | Frame: 56H | Diameter: 6.5″” | Enclosure: ODP | Voltage: 115/230 | Rotation: REV | Overload Protection: None | Shaft Type: Single | Bearings: Ball / Ball | Material: Rolled Steel | Speeds: 1 | Amperage: 5.0/2.6 | Service Factor: 1.25 | Efficiency: 76.20% | Mounting Type: Resilient Base | Frequency: 60 HZ | Capacitor Start Capacitor Run | General Purpose | Open Dripproof (ODP) | Single Speed | Resilient Base
Features
- Ambient Temperature:
40°C - Insulation Class:
B - Poles:
4 - Breakdown Torque:
67.48 OZ/FT - Full Load Amps Primary:
5.0/2.6 - Locked Rotor Amps:
42.83 - Locked Rotor Torque:
112.30 OZ/FT - Service Factor Amperage Primary:
5.9/3.0
Details
Capacitor Start Capacitor Run
General Purpose
Open Dripproof (ODP)
Single Speed
Resilient Base
Specifications
| Phase | Single |
|---|---|
| Electrical Type | CAP START / CAP RUN |
| Capacitor Run MFD | 30.00 MFD |
| Capacitor Start MFD | 709.50 MFD |
| Capacitor Run Voltage | 370 V |
| HP | 1/2 |
| KW | 0.4 |
| Stack | 2.5″” |
| RPM | 1725 |
| Frame | 56H |
| Diameter | 6.5″” |
| Enclosure | ODP |
| Voltage | 115/230 |
| Rotation | REV |
| Overload Protection | None |
| Shaft Type | Single |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
| Speeds | 1 |
| Amperage | 5.0/2.6 |
| Service Factor | 1.25 |
| Efficiency | 76.20% |
| Mounting Type | Resilient Base |
| Frequency | 60 HZ |
Certifications:
