US-Nidec High Torque Motor 7.5 HP - TE - 1740 RPM - FD7CM2K21
On Sale
Sale!
%
Off
4
Save $78
78$
4%
78
$
NEW, FACTORY SEALED!

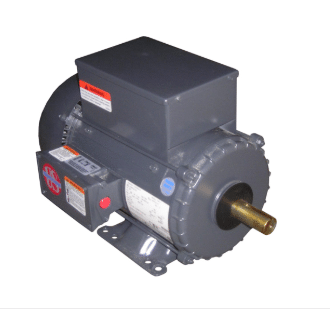

US-Nidec High Torque Motor 7.5 HP – TE – 1740 RPM – FD7CM2K21

Discount
-4% $ 1859 32 List: $1937.00

In Stock

Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Need Member, Reseller, or OEM Pricing?

Estimated Repair Price: $680.00+ (Our Minimum)

Request a Repair Quote

Product Specifications

Model #FD7CM2K21
Height24 in
Width29 in
Depth42 in
Weight166 lbs
Learn MoreYou can hover your mouse over highlighted product specs to learn more.

Description

Model_Number

F853
PRODUCT NAME

7.5 HP – TE – 1740
PHASETYPE

1_PHASE
MOTOR ENCLOSURE

TE
HORSEPOWER

7.5
POLES

4
NUMBER SPEEDS

1
RPM

1740
HERTZ

60
VOLTS PRIMARY

230
VOLTS

230
FRME

215
SHAFT CODE

T
MOTOR TYPE

TMA
OPPOSITE END BEARING

6205-2Z-J/C3
SHAFT END BEARING

6208-2Z-J/C3
AMBIENT

40
SERVICE FACTOR

1
STARTCAPMFD

N\A
SHIPPING WEIGHT

95
INSULATION CLASS

F
KVA CODE LETTER

G
NEMA NOMINAL EFFICIENCY

86.1
FULL LOAD AMPS PRIMARY

30.0
KD SCREW KIT 3P3AUA489002B3093
