Product Specifications
| Model # | 01018ET3E215TF2-W22 | ||
| Height | 12 in | ||
| Width | 12 in | ||
| Depth | 12 in | ||
| Weight | 177 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
14
Save $175
175$
14%
175
$
NEW, FACTORY SEALED!

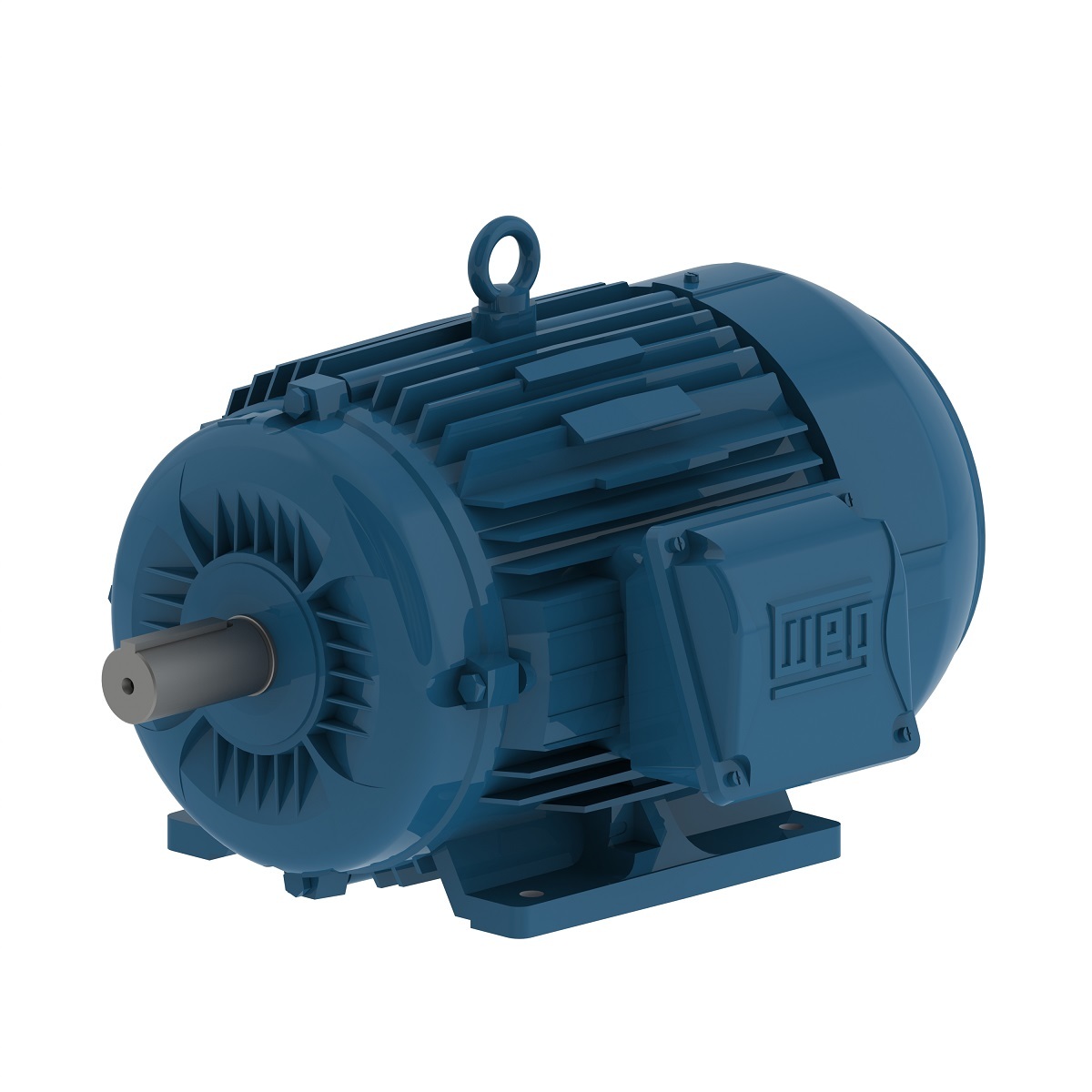

WEG 10 HP 4P 213/5T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted, 01018ET3E215TF2-W22
Discount
-14%
$
1097
84
List: $1273.00
In Stock
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $680.00+ (Our Minimum)
Description
WEG 10 HP 4P 213/5T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted, 01018ET3E215TF2-W22
With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 10 HP |
|---|---|
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-2 |
| Terminal box¹ | Right position |
| Enclosure | IC411 – TEFC |
Certifications:
