Product Specifications
| Model # | 00518ES1E184TC-W22 | ||
| Height | 12 in | ||
| Width | 12 in | ||
| Depth | 12 in | ||
| Weight | 122 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
17
Save $186
186$
17%
186
$
NEW, FACTORY SEALED!

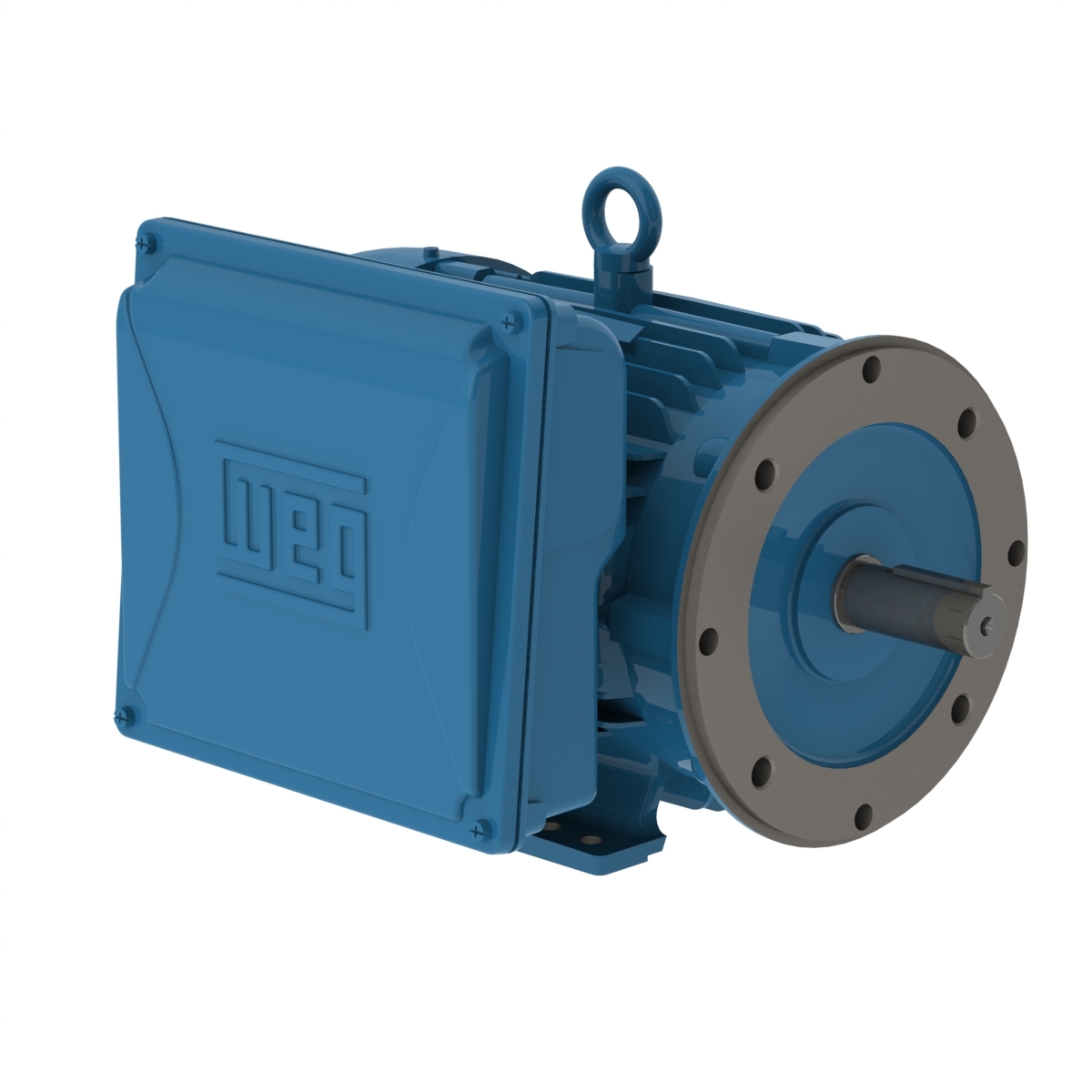

WEG 5HP 4P 182/4TC 1Ph 208-230/460 V 60 Hz IC411, TEFC, Foot-mounted, Model# 00518ES1E184TC-W22
Discount
-17%
$
917
25
List: $1103.00
In Stock
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $680.00+ (Our Minimum)
Description
WEG 5HP 4P 182/4TC 1Ph 208-230/460 V 60 Hz IC411, TEFC, Foot-mounted, Model# 00518ES1E184TC-W22
Electric Motors
| Frame | 182/4TC |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1730 rpm |
| Slip | 3.89 % |
| Rated voltage | 208-230/460 V |
| Rated current | 23.0-21.4/10.7 A |
| L. R. Amperes | 150-139/69.5 A |
| LRC | 6.5x(Code H) |
| No load current | 6.90-8.00/4.00 A |
| Rated torque | 15.2 ft.lb |
| Locked rotor torque | 330 % |
| Breakdown torque | 235 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 0.4357 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 122 lb |
Certifications:
