ABB ACS800

/in , /by

ABB ACS800ABB ACS800 industrial drives provide scalable motor control from standard to demanding applications for a wide range of industries, especially in the process industries such as pulp and paper, metals, mining, cement, power, chemical, oil and gas. ABB ACS800 drives are packed with advanced drive technology developed by ABB engineers and are capable of tackling even the most demanding requirements.

ABB ACS800 drives offer a wide voltage and power range with various drive configurations and options that enable one drive platform to be used for all needs.ABB ACS800 industrial drives are available both as complete AC drives and as modules to meet the requirements of the users, Original Equipment Manufacturers and system integrators.

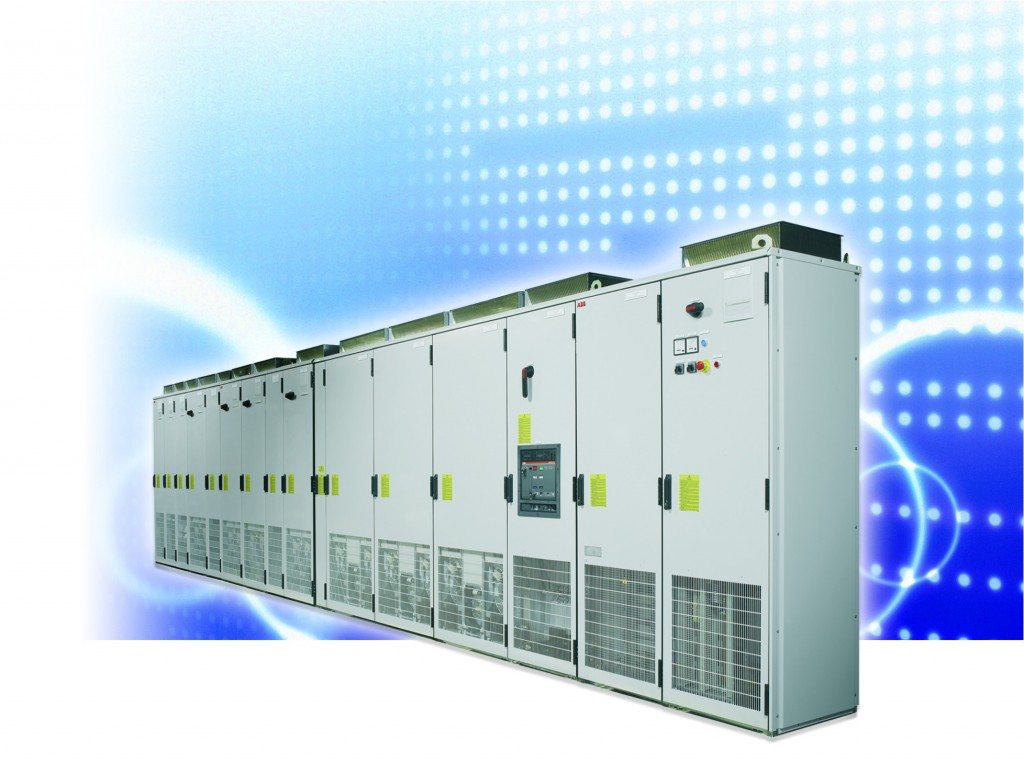

The ABB ACS800 single drive configuration contains a rectifier, DC link and an inverter in one single AC drive unit. The ABB ACS800 single drives are complete AC drives that can be installed without any additional cabinet or enclosure.ABB ACS800 single drives are available as wall-mounted, free-standing and cabinet-built constructions. The protection degree of the ABB ACS800 single drives are at least IP21, but higher protection degrees are available as an option.

ABB ACS800-04 and ABB ACS800-14

ABB ACS800ABB ACS800 industrial drive modules are meant for system integrators and/or machine builders who are making their own applications, which include the cabinet structure as well as the software features needed. ABB ACS800 industrial drive modules include everything that is required for a complete drive, and there is always a built-in harmonic filtering choke on the ABB ACS800. There is also a wide selection of built in options such as EMC filtering and different I/O andcommunication options. All the modules can be mounted side by side in the ABB ACS800.

The ABB ACS800 modules are designed for cabinet assembly and cabinet assembly documentation is included. The flexibility and programmability of the ACS800 modules make them very viable for various application needs in different areas of industry.ABB ACS800-04 drives are single drive modules that are optimized for building into customers own cabinets. They have been designed to minimize the cabinet space used, make cabinet assembly as easy as possible, and give maximum flexibility. ABB ACS800-04 power ranges are from 0.55 to 1900 kW. All the ABBACS800-04 drives, regardless of the power and voltage, have the same customer interface and I/O system design which makes training easier.

ABB ACS800The ABB ACS800-04 units also have everything necessary built-in the; that includes, built-in chokes for harmonic filtering as standard, built-in braking chopper and built-in EMC filtering (both are optional in some frame sizes), making cabinet assembly easier. There is also a wide selection of different I/O and communications options.

The ABB ACS800-14 drives are regenerative single drive modules equipped with active supply unit. They are full performance regenerative drives in a compact package. All important features and options including LCL line filter module(s), IGBT supply module(s), inverter module(s), common mode filters are in the package. The ABB ACS800-14 power ranges are from 75 to 1700 kW. All the ABB ACS800-14 drives, regardless of the power and voltage, have the same customer interface and I/O, making system design and training easier.

To learn more about the ABB ACS800 drives or to download technical documentation for the ABB ACS800, please visit the ABB Website.
