Circuit Board Repair: Cut Downtime, Control Costs
Estimated reading time: 6 minutes
Downtime hurts revenue, reputation, and worker confidence. Consequently, facility managers scramble when a drive control card or PLC module fails without warning. Instead of ordering a replacement that may arrive next quarter, progressive teams choose circuit board repair. The process restores the original assembly, keeps firmware intact, and avoids tedious re‑programming. Moreover, repaired hardware slides back into its rack within days, shrinking lost production hours according to research and cutting express freight charges.
Because our technicians work at component level under high‑magnification microscopes, we replace only what failed and any nearing‑end‑of‑life companions. As a result, the refurbished board often exceeds original reliability. Equally important, the choice supports sustainability by diverting electronics from landfills. Plant engineers appreciate that one decision satisfies budgetary, operational, and environmental objectives.
This article explains why industrial boards fail, how a professional restoration workflow resolves those faults, which protective products bolster long‑term operation, and where to start the repair request. Furthermore, the discussion highlights why boards coated with conformal film often remain non‑repairable and why limited access to the host machine can constrain bench testing. Nevertheless, knowing these constraints lets planners set realistic timelines and keep critical spares on hand. By the end, you will know exactly how to secure a no‑cost evaluation and generate a packing slip in under two minutes.
Root Causes of Industrial Board Failure
Industrial control electronics never rest in friendly office cubicles. Instead, they spend years inside sweltering enclosures and vibrating machines. Because heat accelerates chemical evaporation, electrolytic capacitors dry out, causing voltage rails to sag and microcontrollers to reset. Likewise, airborne oil mist attracts dust that forms conductive tracks, leading to leakage currents and blown fuses. Moreover, high inductive loads generate lightning‑like transients that punch through gate drivers and scorch multilayer traces.
Vibration introduces a second destructive force. Over millions of cycles, it cracks lead‑free solder joints around large relays and power resistors. Consequently, intermittent stoppages appear, confusing operators who see faults clear after a gentle tap. Thermal cycling magnifies the problem because aluminium expands twice as quickly as fibreglass, so plated vias develop micro‑fractures that disconnect entire signal nets. Additionally, boards sprayed with thick silicone conformal coating trap moisture beneath scratches, corroding pads yet foiling later solder rework attempts. Data from Titoma shows why silicone layers complicate rework.
Age brings obsolescence. Manufacturers discontinue critical ASICs or microcontrollers after only ten years; therefore, buying a new board becomes impossible exactly when failure rates climb. Thankfully, disciplined circuit board repair addresses most of these environmental failures and remains a critical tool for reliability engineers. For deeper guidance on diagnosing over‑voltage events, see our VFD over‑voltage troubleshooting guide.
Professional Circuit Board Repair Workflow
Many repair facilities follow these professional Circuit Board Repair guidelines. First, technicians log the case, photograph shipping condition, and assign a tracking barcode. Second, they perform a non‑powered inspection under 10× magnification, marking swollen capacitors, scorched resistors, and fractured connectors with non‑conductive paint pens. Third, they remove light acrylic coating and clean the assembly with ionised air so hidden carbon tracks do not mask faults.

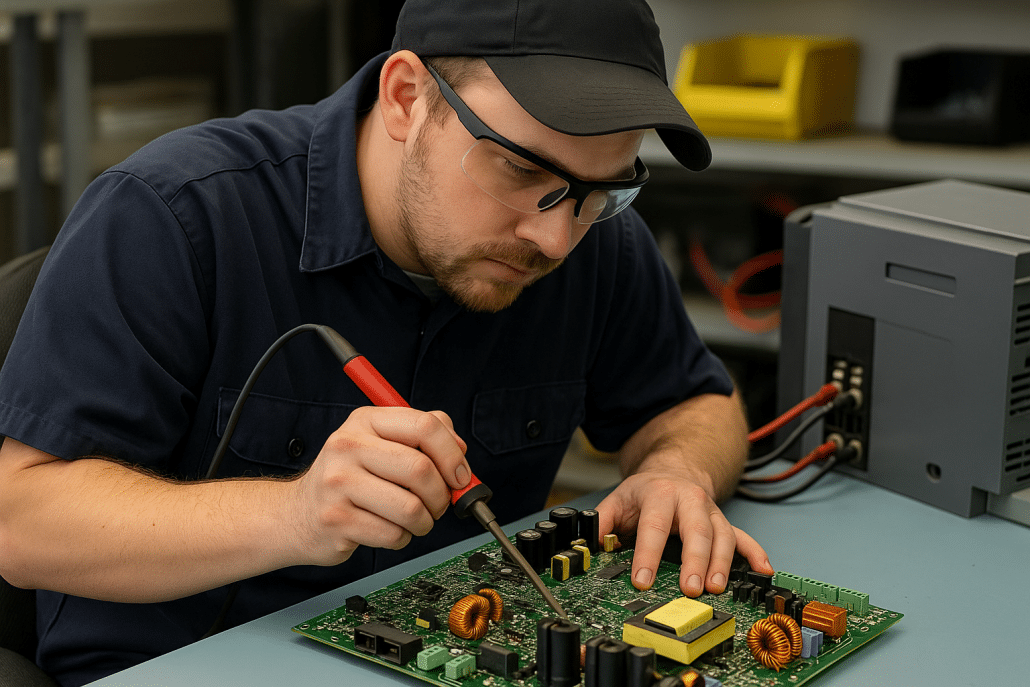

Fourth, component‑level diagnostics begin. Using calibrated multimeters, LCR bridges, and a curve tracer, they test diodes, IGBTs, and transformers in‑circuit. Suspect parts move to quarantine while replacements ship from our stocked legacy inventory. Fifth, rework proceeds at an ESD‑protected station that meets IPC‑A‑610 Class 2 workmanship. Hot‑air stations lift QFP and BGA packages; pads are re‑tinned, and lifted lands rebuilt with epoxy. Every electrolytic capacitor older than five years is refreshed.
Sixth, functional testing verifies success. Because the host machine rarely accompanies the board, we power the assembly through a programmable supply and simulate encoder feedback. Infra‑red cameras watch hotspot temperatures while logic analysers confirm timing. Although this bench simulation cannot exercise every control loop, it catches more than ninety percent of latent issues, and we stand behind the remainder with a twelve‑month in‑service warranty. We document each PCB repair step so future servo motor tuning sessions remain consistent. Many clients praise the printed circuit board repair log included with every shipment.
Protective Products That Support Longevity

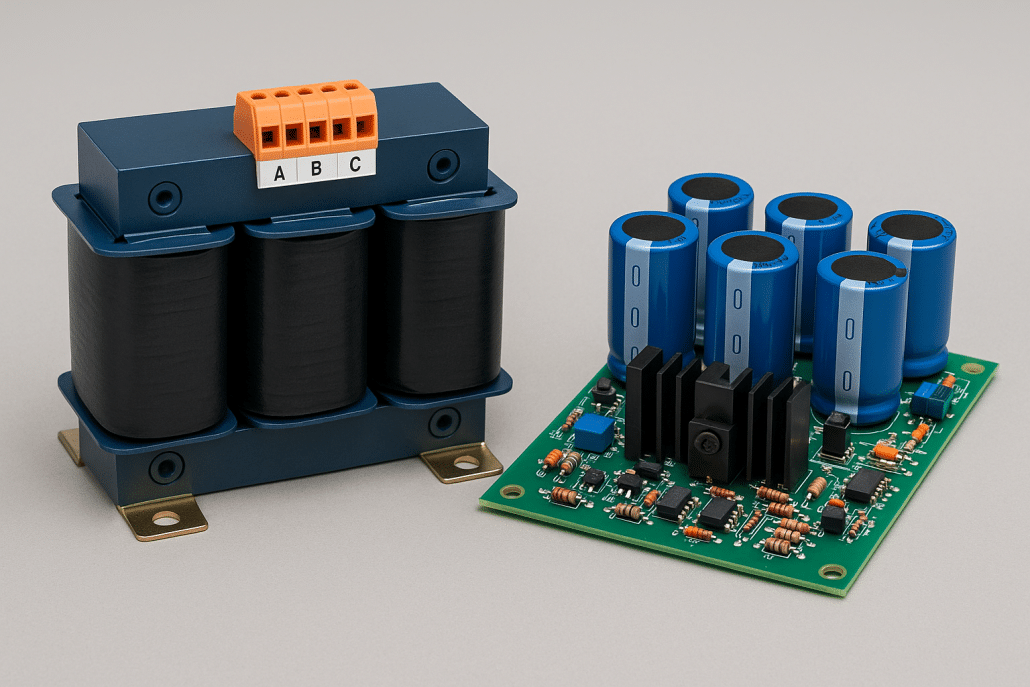

Restoration extends life, yet prevention ensures longevity. Therefore, we recommend three product categories that shield sensitive boards from future stress. First, input line reactors reduce differential voltage spikes by up to thirty percent, easing strain on gate drivers and DC‑bus capacitors. Second, output load reactors mitigate reflected‑wave voltages in long‑cable applications, guarding motor insulation and protecting freshly refurbished inverter boards.
Facilities that experience high inrush currents should add soft starters. By ramping motors smoothly, these devices prevent power‑supply brownouts and reduce mechanical shock. For installations that demand speed control, we supply AC variable frequency drives from ABB, Hitachi, and Eaton. Although modern drives feature conformal‑coated control cards, their fault logging simplifies predictive maintenance, and—when failure eventually strikes—our industrial board repair team can help.
Because product choices must fit real systems, Precision Electric offers application engineering support. We analyse motor data, cable lengths, and enclosure ratings, then propose a matched set of reactors, filters, and bypass contactors. With the right protective hardware, the freshly completed circuit board refurbishment enjoys years of dependable service, and costly PCB troubleshooting emergencies fade into history.
Take Action Today
Consequently, the smartest strategy blends rapid repair with proactive protection. Circuit board repair saves money, decreases lead time, and keeps embedded programs intact. Furthermore, it supports sustainability goals by diverting electronic scrap from landfill. After service, installing reactors, soft starters, and updated drives stabilises voltage and temperature, extending mean‑time‑between‑failure.
Nevertheless, certain boards remain non‑repairable. Silicone‑based coatings resist solvent and heat, so removal can delaminate copper layers. Additionally, without the host machine, laboratory tests cannot exercise every control loop. Therefore, we recommend keeping at least one spare board per critical asset, as outlined in our obsolescence guide.
Next steps are simple. First, identify the failed part number and snap a photo. Second, visit the repair request portal to generate a packing slip. Because evaluations are free, you risk nothing by sending hardware for analysis. Within forty‑eight hours, we provide a fixed quotation. Upon approval, most jobs leave our shop within one week. Independent studies by the Reverse Logistics Association confirm that component‑level restoration saves up to fifty percent compared with new parts. Therefore, choose industrial board repair from Precision Electric and convert unavoidable wear into predictable service intervals.
Because downtime rarely announces itself, moving now equips your team with the insight, the spare parts, and the trusted service provider needed to keep conveyors, mixers, and compressors running at peak efficiency year‑round.
