OBSOLETE PRODUCT. TO PREVENT DOWNTIME, WE STRONGLY ADVISE CONTACTING US FOR REPAIR OR ALTERNATIVES.
Call or Email Us for an Estimated Repair Price.

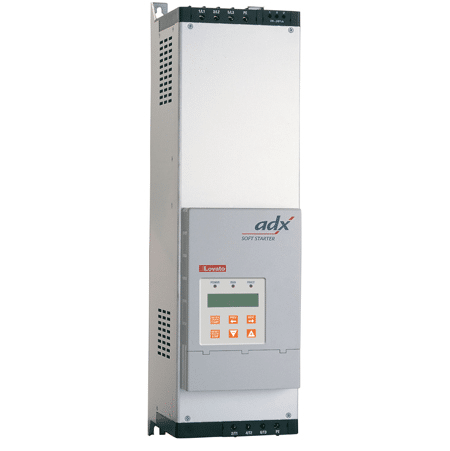

| Manufacturer | Lovato Electric | ||
| Series | ADX Series | ||
| Model # | 51ADX0110B | ||
| Warranty: | 1 Year Manufacturer | ||
| Horsepower | 40.0 HP | ||
| Input Voltage(s): | 200 - 240 VAC Input, | ||
| Output Voltage(s): | 240 VAC Output | ||
| Rated Current: | 110.0 Amps | ||
| Input Phase: | Three Phase Input | ||
| Output Phase: | Three Phase Output | ||
| Enclosure: | Not Rated | ||
| Height | 23 in | ||
| Width | 6 in | ||
| Depth | 10 in | ||
| Weight | 39 lbs | ||
| Integrated Keypad: | Yes | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
Estimated reading time: 11 minutes
In industrial applications, managing the startup of a three-phase AC Induction Motor is a critical task. Direct-on-line starting subjects the motor and connected machinery to significant mechanical shock and also causes a large electrical inrush current, which can stress the power grid. Consequently, utilizing advanced motor control solutions like Lovato ADX softstarters is essential for enhancing equipment longevity and operational stability. These devices work by gradually increasing the voltage applied to the motor, resulting in a smooth, stepless acceleration. As detailed by ABB Motor Starting Soft Starters, this controlled start significantly reduces electromechanical stresses. This protection covers the entire system, from the power source to the driven load.
The primary advantage of implementing a Soft Starter is the substantial reduction in mechanical wear and tear. For instance, by eliminating the sudden torque spike of a direct start, a soft starter protects essential components such as bearings, couplings, gearboxes, and conveyor belts from premature failure. This controlled ramp-up not only prolongs the life of the machinery but also minimizes costly downtime for repairs. In addition, the limitation of starting current helps prevent voltage dips that can affect other sensitive equipment connected to the same electrical network. According to Soft Start Controls, this provides a more stable and reliable power environment within the facility.
Lovato Electric, a recognized leader in motor control technology, has engineered the ADX series to meet the demanding requirements of modern industry. These solid-state starters offer a comprehensive solution for many motor sizes and applications. This is highlighted by both ADX Soft Starters and distributors like ADXL Soft Starter by Lovato. The Lovato ADX series goes beyond simple voltage ramping. It incorporates advanced features like torque control, integrated motor protection, and communication capabilities for integration into larger automation systems. Therefore, this article serves as a technical guide. It explores the design, application, and maintenance of these starters to help engineers maximize performance and reliability.
Fundamentally, Lovato ADX softstarters serve a critical role in modern motor control by managing the acceleration and deceleration of standard three-phase AC induction motors. Instead of subjecting the motor and connected machinery to the instantaneous electrical and mechanical shock of an across-the-line start, the ADX series provides a gradual, controlled voltage ramp. According to Soft Starter Technology, this is achieved using solid-state devices, such as silicon-controlled rectifiers (SCRs), to precisely regulate the voltage supplied to the motor windings during startup, thereby ensuring a smooth application of torque without damaging peaks. Consequently, this managed start significantly reduces both inrush current and mechanical stress.
The primary benefit of this controlled voltage ramp is the substantial reduction of wear on mechanical components. For instance, by eliminating the sudden jerk of a direct-on-line start, the soft starter protects gearboxes, belts, chains, and couplings from premature failure. This smooth acceleration is essential for extending the operational life of the entire drive system, a point reinforced by technical documentation from ABB Motor Starting on reducing motor stresses. In addition to a soft start, many models also offer a soft stop capability, which gradually ramps down the voltage to prevent issues like water hammer in pumping applications.
Beyond a simple voltage ramp, Lovato ADX units incorporate advanced features for more demanding applications. For example, they utilize a sophisticated torque control algorithm that provides a more linear and consistent acceleration profile, which is particularly useful for loads that are sensitive to torque variations. As noted by Lovato Electric ADX Soft Starters, this feature optimizes performance beyond what a standard voltage ramp can offer. Furthermore, for high-inertia systems that require an initial breakaway force, the ADX series includes a "kick start" function that applies a brief burst of higher torque at the beginning of the start cycle to overcome static friction before transitioning to the smooth ramp.
The Lovato ADX series offers advanced control for three-phase motors, ensuring a smooth startup and reducing mechanical stress on industrial equipment.
The Lovato ADX softstarters offer a comprehensive suite of technical features designed for precise AC Induction Motor control and enhanced system protection. These starters integrate advanced algorithms that go beyond simple voltage ramping, providing features like torque control, a built-in bypass contactor, and extensive electronic motor protection. Consequently, this design ensures a smooth, stepless acceleration and deceleration, which according to ABB Soft Starters, significantly reduces mechanical stress on couplings, gearboxes, and belts. The ADX series is engineered to handle a wide range of motor sizes, offering models from 17A up to 1200A for diverse industrial applications.
One of the most significant benefits is the sophisticated torque control, which helps manage fluid dynamics in pumping applications to prevent water hammer, as noted by Soft Starter Technology. In addition, every unit includes a built-in bypass contactor that automatically engages once the motor reaches full speed. This feature improves thermal efficiency by minimizing heat dissipation from the starter's SCRs during run-time, thereby reducing panel cooling requirements and operational energy costs. The ADX series also provides robust motor protection, guarding against overloads, phase loss, and excessive start times.
Furthermore, the ADX series excels in user interface and connectivity. An integrated backlit LCD display and keypad allow for intuitive local programming and real-time monitoring of motor currents, voltages, and thermal status. For advanced configuration and diagnostics, an optical front port enables connection to a PC using Lovato Electric’s software, as detailed by Aimdynamics. This interface is crucial for maintenance professionals, allowing for easy data downloads and rapid troubleshooting within a Motor Control Center (MCC), ensuring compliance with standards like NFPA 70E.
Choosing the correct Lovato ADX softstarters is critical for ensuring reliable and efficient motor operation. The selection process begins with a thorough analysis of the AC induction motor nameplate data and the specific demands of the driven load. Consequently, three primary factors must be evaluated: the motor’s full load amperage (FLA), the application’s duty cycle requirements, and the nominal system voltage. A precise assessment of these parameters is essential for preventing undersizing, which can lead to premature failure, or oversizing, which results in unnecessary capital expenditure.
First and foremost, the soft starter’s continuous current rating must meet or exceed the motor’s FLA. Lovato Electric offers an extensive range of ADX models, with ratings from 17A to 1200A to match various motor sizes, as noted by ADX Soft Starters. Beyond the current rating, it is crucial to consider the application's starting demands. For instance, a centrifugal pump represents a standard-duty load with a relatively short ramp time, whereas a high-inertia crusher is considered severe duty, requiring more thermal capacity from the starter. According to documentation from Lovato Product Documentation, specific models are rated for severe duty applications, ensuring they can handle the prolonged starting currents without overheating.
In addition to current and duty cycle, verifying the operational voltage is a mandatory step. ADX models are available for common three-phase systems, such as 480V and 600V, so the selected unit must align with the facility's power distribution. Another key consideration involves the required features for control and protection. The comprehensive feature list provided by sources like ADXL Soft Starter shows that many ADX units include advanced torque control, integrated electronic motor overload protection, and communication options. Therefore, selecting a model with the appropriate feature set ensures optimal performance and integration into a larger Motor Control Center (MCC) or automation system.
This diagram shows how Lovato ADX softstarters manage motor voltage, ensuring a smooth ramp-up to protect equipment and reduce mechanical stress.
Proper installation and wiring are foundational to the reliable performance and safety of Lovato ADX softstarters. Before beginning any work, technicians must adhere to strict lockout/tagout procedures and follow all guidelines outlined in NFPA 70E for electrical safety. Physically, the unit should be mounted securely within a suitable enclosure, such as a Motor Control Center (MCC), ensuring adequate ventilation and clearance around the device to dissipate heat effectively, as noted by sources like ADXL Soft Starter. Consequently, failing to provide sufficient airflow can lead to premature component failure due to overheating. Adherence to the National Electrical Code (NEC) for mounting and placement is mandatory for a compliant and safe installation.
Furthermore, correct power wiring practices are critical for both performance and safety. Conductors must be sized according to the motor’s full-load ampere (FLA) rating and applicable NEC tables, ensuring they can handle the current without overheating. It is equally important to torque all power terminals to the manufacturer’s specifications, as detailed in technical documents from providers like Lovato Electric Catalog, to prevent hot spots and potential faults. Whether using a standard three-wire in-line configuration or a six-wire inside-the-delta connection, verifying the correct phasing and ensuring all connections are secure is a crucial step before commissioning the system.
In addition to the main power lines, control wiring requires meticulous attention to detail to prevent operational issues. To avoid electromagnetic interference (EMI), control wiring should be physically segregated from high-voltage power conductors, using shielded twisted-pair cables for sensitive analog signals where necessary. As Soft Starter Technology highlights, the advanced monitoring capabilities of modern starters depend on clean, reliable signals. Finally, always double-check all connections for start/stop commands, external fault inputs, and communication links against the official Lovato Electric ADX Soft Starters wiring diagrams before applying control power to the unit.
Properly commissioning Lovato ADX softstarters is a critical final step following installation to ensure safe and efficient operation. Before applying main power to the AC Induction Motor, it is essential to power up the control circuit and configure the basic parameters. This initial setup ensures the soft starter’s protective features are correctly matched to the motor and application. According to Lovato Electric ADX Soft Starters, the intuitive interface simplifies this programming phase. Consequently, verifying these settings beforehand prevents potential motor damage and nuisance tripping once the system goes live, aligning with standard commissioning best practices.
The most fundamental parameters to configure include the motor's full-load ampere (FLA) rating, the acceleration ramp time, and the initial start voltage. First, entering the correct FLA from the motor’s nameplate is crucial for the starter's thermal overload protection, as highlighted by documentation from ADXL Soft Starter. Next, the ramp-up time should be set according to the load's inertia; for instance, a heavily loaded conveyor will require a longer ramp than a simple pump. The initial voltage, typically 30-50% of the nominal value, determines the starting torque. As noted by Lovato Soft Starter, the built-in display makes these adjustments straightforward.
In addition to the front keypad, technicians can configure parameters using Lovato Electric's software via the front optical port, which offers a more comprehensive interface for setup and diagnostics. This dual-access method allows for both quick field adjustments and in-depth configuration from a laptop. Once the parameters are set, it is wise to perform a test run without a load to confirm the motor starts and stops smoothly. During this test, you can monitor real-time data on the LCD screen, such as current and operational status. This allows you to confirm that the many features detailed by ADXL Soft Starter by Lovato are functioning as expected before placing the equipment into full service.
The control panel of the Lovato ADX softstarter provides access to its key technical features, allowing for precise motor control and protection.
Effectively troubleshooting Lovato ADX softstarters is straightforward, thanks to their comprehensive built-in diagnostic and protection features. These systems are designed to safeguard the AC Induction Motor and connected equipment from various electrical and mechanical faults. In fact, the front optical port allows for easy data downloads and diagnostics, as noted by ADX Soft Starters.
A frequent alarm is related to motor overcurrent or overload conditions. This fault can stem from several sources, including an incorrect parameter for the current limit, a mechanical jam in the load, or high starting torque demands. Consequently, the first step is always to perform a thorough lockout/tagout procedure compliant with NFPA 70E standards before inspecting any equipment. Following this, verify that the motor and load turn freely and check all power connections for tightness. The ADX series offers robust thermal protection during motor start, according to Lovato ADXL Soft Starter; therefore, reviewing these settings is also crucial.
Another set of faults involves the starter's internal components, such as a 'Bypass Relay Fault' or an overtemperature alarm. For instance, an overtemperature condition often points to environmental factors like poor ventilation in the Motor Control Center (MCC) or high ambient temperatures. On the other hand, a bypass relay fault usually indicates an internal hardware issue. This specific fault is a key diagnostic feature, as highlighted by Lovato ADXL Soft Starter. The unit's advanced condition monitoring can help diagnose these issues before they cause significant downtime. Indeed, this is a key capability in Industry 4.0 applications, as mentioned by Soft Starter Technology.
Ultimately, the effective management of Lovato ADX softstarters is paramount to ensuring the long-term health and reliability of critical AC induction motors. These advanced devices do more than just start a motor; they protect entire mechanical systems by mitigating the electrical and physical shocks of direct-on-line starting. As detailed by industry experts like ABB Soft Starters, reducing this initial stress directly correlates to a longer lifespan for bearings, couplings, and other driven equipment. Consequently, mastering the full lifecycle of a soft starter—from selection to maintenance—yields significant returns in operational uptime and reduced repair costs.
Throughout this article, we have covered the essential stages of deploying a Lovato ADX unit, including proper selection, installation according to NEC guidelines, and precise parameter commissioning. Adhering to these best practices ensures that the protective features, such as those highlighted by ADXL Soft Starter by Lovato, function correctly from day one. In other words, a successful deployment is not just about connecting wires; it is about creating a resilient and efficient motor control system tailored to the specific application's demands. This initial investment in diligence prevents countless hours of future troubleshooting.
By leveraging the diagnostic data and communication capabilities inherent in modern units, maintenance teams can shift from a reactive to a predictive strategy. The integration of such smart devices into a facility’s maintenance program aligns with the principles of Industry 4.0, as noted by Soft Starter Technology in Industry 4.0. Therefore, viewing the soft starter as a strategic asset for condition monitoring transforms it from a simple component into a cornerstone of industrial reliability. For more information on the complete ADX series, consulting official resources from Lovato Electric ADX Soft Starters is an excellent final step.
