Product Specifications
| Model # | CEM7034 | ||
| Height | 11 in | ||
| Width | 14 in | ||
| Depth | 21 in | ||
| Weight | 50 lbs | ||
| Learn More | You can hover your mouse over highlighted product specs to learn more. | ||
On Sale
Sale!
%
Off
47
Save $923
923$
47%
923
$
NEW, FACTORY SEALED!

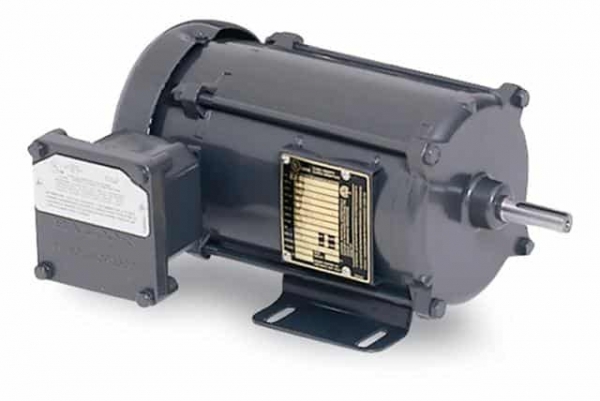

Baldor CEM7034 1.5/1 HP, 1760/1460 RPM, 3PH, 60/50HZ, 56C Frame, XPFC Explosion Proof AC Motor With L-070 5/8″ Coupling
Discount
-47%
$
1022
91
List: $1946.00
CALL OR EMAIL US TO CHECK AVAILABILITY.
Need Member, Reseller, or OEM Pricing?
Estimated Repair Price: $680.00+ (Our Minimum)
Description
Product Information Packet: CEM7034 – 1.5//1HP,1760//1460RPM,3PH,60//50HZ,56C
Comes with qty.1 L-070 5/8″ coupling = list price for coupling is 41.00
Part Detail
Part Detail
Revision: C Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM493 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35E368 Layout: 35LYE368 Poles: 04 Created Date: 09-01-2015
Base: RG Eff. Date: 09-14-2016 Leads: 9#18
Specs
Enclosure: XPFC
Frame: 56C
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
1.000 HP @ 50 HZ
Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
190.0 V @ 50 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ
XP Class and Group: CLI GP D; CLII GP F,G
XP Division: Division I
Agency Approvals: CSA EEV
CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3526M
Mounting Arrangement: F1
Power Factor: 73
Product Family: Hazardous Location Motor
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Revision: C Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM493 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35E368 Layout: 35LYE368 Poles: 04 Created Date: 09-01-2015
Base: RG Eff. Date: 09-14-2016 Leads: 9#18
Specs
Enclosure: XPFC
Frame: 56C
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
1.000 HP @ 50 HZ
Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
190.0 V @ 50 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ
XP Class and Group: CLI GP D; CLII GP F,G
XP Division: Division I
Agency Approvals: CSA EEV
CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3526M
Mounting Arrangement: F1
Power Factor: 73
Product Family: Hazardous Location Motor
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 1.900 A @ 380.0 V
2.200 A @ 460.0 V
3.800 A @ 190.0 V
4.400 A @ 230.0 V
4.500 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device – Bearing: None
Thermal Device – Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Blower: None
Current @ Voltage: 1.900 A @ 380.0 V
2.200 A @ 460.0 V
3.800 A @ 190.0 V
4.400 A @ 230.0 V
4.500 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device – Bearing: None
Thermal Device – Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
General Characteristics
Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C10.1 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load46° C
Temp. Rise @ S.F. Load51° C
Start ConfigurationDOL
Break-Down Torque24.6 LB-FT
Pull-Up Torque13.7 LB-FT
Locked-Rotor Torque19.5 LB-FT
Starting Current21.1 A
Load Characteristics
| Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 19.0 | 30.0 | 41.0 | 51.0 | 58.0 | 65.0 | 0.0 |
| Efficiency | 0.0 | 60.7 | 74.3 | 79.9 | 82.4 | 83.3 | 83.4 | 0.0 |
| Speed (RPM) | 1,499 | 1,494 | 1,488 | 1,481 | 1,475 | 1,468 | 1,460 | 0 |
| Line Amps | 2.09 | 2.10 | 2.14 | 2.22 | 2.35 | 2.53 | 2.71 | 0.00 |
Performance Curves
