VFD Control: Benefits, Best Practices, and Top Drives
Most industrial and commercial facilities rely on electric motors that spin at a constant line frequency. However, loads rarely need full‑speed operation all the time. Through VFD control, engineers can match motor speed to real‑time demand and immediately capture energy and maintenance savings. Instead of throttling flow with dampers or valves, a VFD supplies the motor with a custom frequency so the shaft turns only as fast as necessary. Because this electronic approach removes wasted heat and mechanical strain, operating costs drop while uptime rises.
Consequently, facility managers, OEMs, and energy consultants have embraced adjustable frequency drive control as a primary efficiency lever. Precision Electric has supported that transition for decades. Our specialists not only repair drives but also specify new solutions, configure software, and commission systems on‑site.
Drawing on thousands of successful projects, we compiled this research‑driven guide to help readers grasp the core principles, quantify the benefits, and pick hardware with confidence. Read on to discover how variable frequency drive control works, why it pays off, and which product families deliver the best results for your application.
What Is VFD Control?
At its heart, VFD control is the art of converting fixed‑frequency utility power into a variable‑frequency, variable‑voltage waveform that an AC motor can follow. The process unfolds in three electronic stages. First, a rectifier changes the incoming AC to DC. Second, a DC link filters and stores energy. Finally, an inverter built from insulated‑gate bi-polar transistors switches that DC into a synthesized AC output whose frequency precisely commands motor speed.
Because shaft speed follows the formula n = 120f / p, changing a sixty‑hertz supply to thirty hertz immediately halves RPM. Modern drives manage this conversion with microsecond‑level pulse‑width modulation while monitoring voltage, current, and temperature on every cycle. Consequently, the motor experiences a smooth, low‑ripple waveform rather than the brutal step change of across‑the‑line starting.
Although early drives offered only open‑loop volts‑per‑hertz regulation, contemporary controllers employ sensorless vector algorithms or closed‑loop feedback to maintain torque down to zero speed. Direct Torque Control from ABB and Yaskawa’s advanced flux observer schemes both track motor flux in real time, delivering blister‑fast response for cranes, extruders, and test stands. In addition, built‑in PLC logic, field‑bus modules, and safe‑torque‑off contacts allow one compact drive to replace starters, contactors, and external controls, cutting panel footprint and wiring cost. In short, VFD control merges power conversion and automation into one intelligent device that puts the exact amount of energy where and when you need it.
Key Benefits of VFD Control
Because a motor rarely needs to run flat out, the first dividend of adjustable frequency drive control is vigorous energy reduction. For centrifugal fans and pumps, affinity laws show that power drops roughly with the cube of speed; trimming a blower to eighty percent of base RPM can slash kilowatts by nearly fifty percent. Studies from the U.S. Department of Energy confirm payback periods under two years for most retrofit situations, and many utilities sweeten the deal with rebates. Beyond the utility bill, the soft electronic ramp of a drive eliminates inrush currents six to eight times motor FLA, preventing nuisance trips and flattening peak‑demand charges.
Meanwhile, precise motor speed control raises process quality. Operators can hold pressure, flow, or tension within tight bands, which stabilizes downstream operations and reduces scrap. Food processors, for instance, adjust mixer RPM between recipes without mechanical gearing, while HVAC designers tune fan speed to reach occupancy comfort targets quietly.
Less mechanical shock also means bearings, belts, and seals last longer, extending maintenance intervals. Furthermore, modern drives monitor their own conditions and push health data into building‑management or SCADA networks, so technicians spot anomalies early. Add quieter work areas and lower carbon emissions, and the strategic case for VFD control becomes overwhelming.
Implementing VFD Control
Launching a vfd control initiative requires more than purchasing hardware. With effective VFD control, engineers must validate load characteristics, electrical infrastructure, and regulatory constraints so that the selected drive performs flawlessly. Begin with a detailed motor load study. Determine horsepower, duty cycle, torque profile, and overspeed needs. Next, evaluate line voltage variation, fault‑level capacity, and harmonic limits under IEEE 519. Where total harmonic distortion might breach five percent, specify input reactors or active filters.
Then consider environmental factors such as altitude, ambient temperature, and airborne particulates to choose the correct enclosure rating—often NEMA 12 for dusty factories or NEMA 3R for rooftop units. Plan wiring runs carefully because long motor leads can create reflected‑wave voltage spikes; shielded cable and dV/dt filters protect insulation. In addition, allocate space for bypass contactors if process continuity is critical.
Remember to check that the existing motor complies with NEMA MG 1 Part 31 inverter‑duty guidelines, especially for 480‑volt systems where peak voltages can exceed 1500 V. Finally, budget time for personnel training so operators and maintenance staff feel confident navigating new keypad menus and alarms. Create clear wiring labels as well.
Best Practices for Deployment
After the preliminary analysis, focus on parameterization. Set acceleration and deceleration ramps long enough to avoid torque spikes yet short enough to satisfy process response. Where multiple drives on a common bus share regenerative energy, tune the DC link voltage thresholds carefully. Enable motor auto‑tuning routines so the drive measures stator resistance and inductance, then builds an internal model that often doubles low‑speed torque accuracy. If the application demands full torque at zero speed, add an encoder card and choose closed‑loop vector mode. Conversely, most pumps and fans run happily on sensorless vector or simple V/Hz law, which reduces cost.
Always integrate the drive into a safety architecture. Modern units ship with dual‑channel Safe Torque Off inputs rated to SIL 3; connect them to emergency‑stop circuits rather than relying on contactors. Program critical alarms—overload, under‑voltage, heatsink over‑temperature—to auto‑reset where safe, or latch if human inspection is necessary. Log parameters to a historian over Modbus TCP or Ethernet/IP so trend analyses can flag bearing wear or cavitation early. For networked drives, assign static IP addresses and document them in the plant configuration database. Finally, arrange a commissioning checklist covering insulation resistance tests, phase‑rotation verification, harmonic measurements, and functional acceptance with the operator.

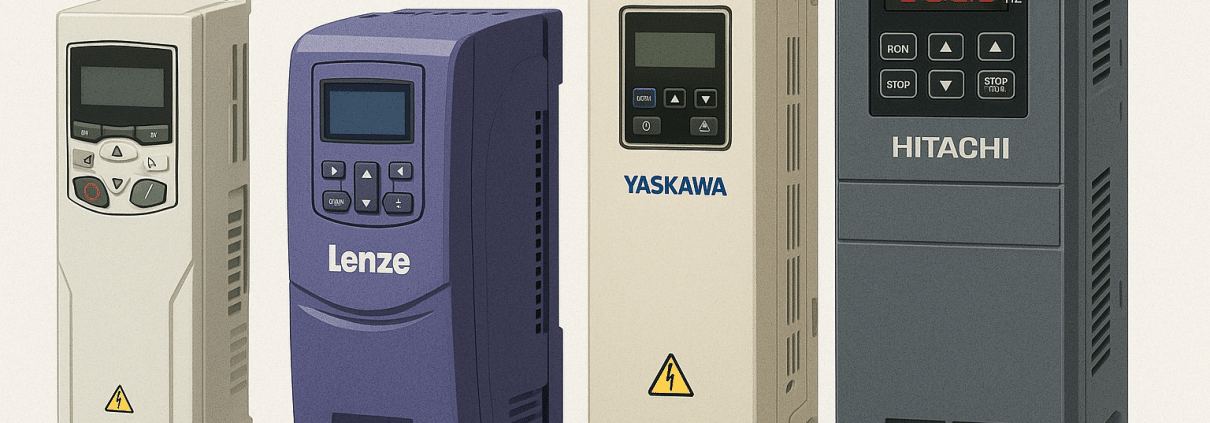

VFD Control Product Recommendations
Precision Electric curates drive families that balance performance, support, and total cost of ownership. Below are three proven lines that cover most horsepower ranges while maintaining seamless serviceability through our in‑house repair team.
- ABB ACS580 – A general‑purpose inverter available from 1 to 700 HP, this unit features built‑in harmonic mitigation and an intuitive assistant keypad. For deeper specifications, view ABB’s official catalog. Clients who swapped outdated starters for ACS580 drives on condenser fans reported a 42 % energy saving in the first twelve months.
- Yaskawa GA800 – Spanning ¾ to 1000 HP, the GA800 excels at heavy‑duty torque with sensorless vector or encoder feedback. A built‑in Bluetooth interface accelerates mobile commissioning. Explore additional details on Yaskawa’s product page. One plastics customer cut scrap rates by 18 % thanks to tighter speed holding.
- Eaton H‑Max – Designed for HVAC and pumping, H‑Max drives integrate BACnet MS/TP and an Active Energy Control algorithm. For further insight, review Eaton’s HVAC drive overview. After an install on a municipal booster pump station, flow variability shrank from ±6 psi to ±1 psi while power draw fell 30 %.
Because every site differs, request a free application review through our drive repair and retrofit team. We model harmonics, thermal loading, and payback so you receive a right‑sized solution—not an off‑the‑shelf guess.
Conclusion
In summary, vfd control transforms fixed‑speed motors into agile, energy‑smart assets that align perfectly with process demand. By trimming needless kilowatts, eliminating hard starts, and sharpening speed accuracy, a well‑implemented drive strategy produces rapid financial and operational returns. Furthermore, modern platforms add digital diagnostics, network connectivity, and certified safety logic that future‑proof every capital installment. When executives need to curb energy spend without compromising capacity, or when engineers must stabilize product quality inside strict tolerances, a drive upgrade consistently ranks as the fastest path to measurable improvement.
Although the initial scope assessment may appear complex, technicians can leverage pre‑built harmonic calculators, virtual commissioning tools, and cloud monitoring dashboards to simplify each step. Adopt the practical actions outlined above—load evaluation, harmonic planning, rated cabling, and disciplined commissioning—and you will realize those gains reliably. Should you need guidance, Precision Electric stands ready to supply hardware, engineering, and nationwide field service under one roof. Our technicians routinely help customers integrate new drives within days and keep them running for decades. Therefore, reach out today, and transform motor inefficiencies into a lasting competitive advantage that improves sustainability metrics year after year.
