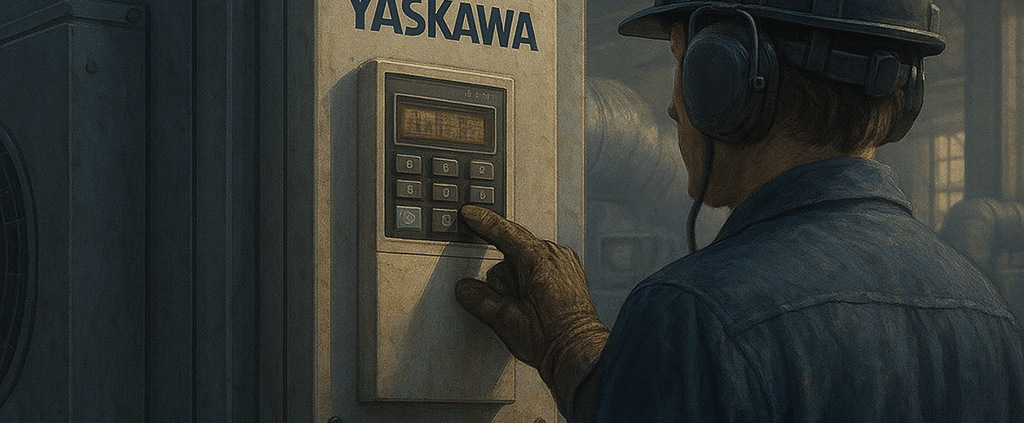

Yaskawa VFD installed on HVAC system

Yaskawa VFD: Complete Guide to Selection, Setup & Savings

Introduction

Modern facilities expect precise motor control, lower energy bills, and rock‑solid uptime. Variable Frequency Drives (VFDs) deliver all three, and few brands match the performance of a Yaskawa VFD. By regulating voltage and frequency, the device lets operators run an AC motor only as fast as the process demands. Consequently, systems consume less power, components last longer, and production becomes more flexible. Because a Yaskawa drive uses advanced sensor‑less vector control, technicians can reach rated torque at low speed without adding feedback devices. Moreover, the company’s legendary quality program gives its controllers an average MTBF that exceeds twenty years, so downtime is rare. Further reading: our VFD Basics guide explains the fundamental terms.

Still, selecting and installing the right controller takes planning. This guide focuses on the Yaskawa VFD family but the core steps apply to any modern inverter. It walks you through the essentials: how a VFD works, the special features baked into every Yaskawa inverter, practical setup tips, and the models we recommend for the most common tasks. Along the way we compare alternatives from ABB, Eaton, and Lenze, and we point you to detailed technical resources hosted by Precision Electric and trusted partners. Finally, you will find product links and best‑practice checklists that shorten commissioning time and ensure full compliance with IEEE 519 harmonic limits.

Understanding Variable Frequency Drives

A VFD converts fixed‑frequency line power into a flexible, user‑defined waveform. First, a rectifier bridge changes incoming AC to DC. Next, a DC link filter smooths the bus voltage. Finally, an IGBT inverter reconstructs an AC signal whose frequency can range from near zero hertz to well above the motor’s base rating. Because speed is proportional to frequency, operators gain closed‑loop speed control with a simple keypad command or remote PLC signal. Importantly, the inverter also modulates voltage in proportion to frequency, so motor flux stays constant and torque remains available across the speed band.

However, PWM switching generates steep voltage edges that can stress insulation. Manufacturers therefore add output reactors, du/dt filters, or, in the case of the GA800, a motor‑friendly three‑level topology. This design halves the voltage step seen by each winding and allows legacy motors to run safely on long cable sets. Additionally, modern controllers monitor bus ripple, transistor temperature, and bearing currents, shutting down gracefully before damage occurs. As a result, maintenance teams see fewer surprise breakdowns, and insurance carriers appreciate the risk reduction.

To maximise efficiency, most drives supply advanced control modes. Sensor‑less vector calculates motor flux in real time, while closed‑loop vector accepts encoder feedback for zero‑speed torque. Users select what they need through a structured parameter menu, and free PC tools—such as Yaskawa’s DriveWizard—log live data for troubleshooting. Because the core architecture is similar across brands, the concepts you learn here apply equally to an ABB ACS880 or an Eaton DG1. Technical readers can also compare Lenze’s IP66 i550 protec (Lenze i550 details). These fundamentals apply whether you commission a pump with a Yaskawa VFD or tune a high‑powered test stand.

Why Choose a Yaskawa VFD

When your project demands both longevity and precision, a Yaskawa VFD often ranks first on the specification sheet. The company’s continuous‑improvement culture earned it the Deming Prize for quality, and that philosophy shows in every circuit board. Conformal coating shields electronics from humidity, and a built‑in DC choke lowers input harmonics without extra parts. As a result, many installers achieve IEEE 519 compliance straight out of the box.

Performance also differentiates Yaskawa. A GA500 microdrive delivers 200 percent starting torque at 0.5 Hz in open‑loop sensor‑less mode, while the flagship GA800 model produces full torque at zero speed when paired with an encoder. Moreover, features such as Safe Torque Off (SIL 3) simplify machine‑safety design. Instead of hard‑wired motor contactors, you route an emergency‑stop signal into dedicated STO terminals and meet ISO 13849 requirements with minimal wiring.

Serviceability further tips the scales. With the Y‑Stick cloning tool you copy parameters from a running unit in less than a minute, then paste them into a replacement drive. DriveWizard Mobile extends that convenience, giving technicians smartphone access to trend data while standing next to a cooling tower or grain elevator. Because these tools ship free, project budgets stretch farther. Choosing a Yaskawa VFD therefore protects both schedules and balance sheets.

Yaskawa VFD drive panel improves efficiency
Yaskawa VFD drive panel improves efficiency

Implementation Best Practices for Yaskawa Drives

Cable routing matters as well, especially when a Yaskawa VFD sits in the same panel as sensitive control wiring. Proper application of Yaskawa drives ensures that the spec‑sheet benefits materialise in the field. Start by gathering complete motor data—voltage, full‑load amps, service factor, and speed—from the nameplate. Input the figures during the drive’s auto‑tune routine; the algorithm then models rotor flux accurately and eliminates current spikes. Next, pick the correct overload rating. For constant‑torque loads such as conveyors, select the Heavy‑Duty setting, which permits 150 percent current for sixty seconds. Conversely, for variable‑torque loads like HVAC fans, the Normal‑Duty curve saves money because it requires a smaller frame size.

Keep motor leads separate from low‑level sensor wiring, and bond the drive ground directly to the motor frame. When runs exceed 50 metres, add a dV/dt filter or specify a GA800 with its three‑level output to protect insulation. Furthermore, terminate the shield at one end only to prevent circulating currents.

Commissioning should not end when the motor spins. Activate the built‑in energy optimiser and enable under‑load detection. If a pump runs dry, the Yaskawa variable frequency drive trips and alerts the building‑management system over Modbus TCP. Additionally, log baseline kilowatt‑hours with the drive’s meter function; auditors later use these figures to verify energy‑rebate eligibility.

Finally, schedule annual inspections. Technicians can replace cooling fans proactively after 40 000 hours and record capacitor health in DriveWizard. With this plan, the controller will run for decades, just as the reliability studies promise.

Yaskawa VFD installed on HVAC system
Yaskawa VFD installed on HVAC system

Product Recommendations for Your Yaskawa AC Drive

Choosing the right controller from the catalogue matters just as much as programming it; therefore, start with a Yaskawa VFD sizing checklist. Below are three proven options that Precision Electric stocks for same‑day shipment, along with direct links to installation guides and replacement parts.

  • GA800 Industrial Heavyweight – This 480‑volt Yaskawa AC drive covers 1 HP to 600 HP and includes Safe‑Torque‑Off, coated boards, and a built‑in braking transistor up to 150 kW. Use it for conveyors, crushers, and high‑inertia fans. Order online at GA800 product page.
  • GA500 Microdrive – Need a compact package? This model mounts on DIN rail, accepts 240‑volt single‑phase input, and still offers 200 percent starting torque. See details at GA500 specifications. Because the GA500 includes embedded Modbus TCP, OEMs integrate it quickly.
  • U1000 Matrix Regenerative Inverter – When the application must regenerate power—such as descending cranes or test stands—this matrix converter sends energy back to the grid with less than five percent current THD.

For context, ABB’s ACS880 and Eaton’s DG1 compete in the same horsepower class, yet both require external filters to match the harmonic performance of a standard U1000. Therefore, life‑cycle cost often favours Yaskawa. Additionally, Precision Electric’s VFD repair program covers these models, so replacement parts and factory‑trained technicians remain available for decades. Couple that support with the brand’s 3‑year warranty, and a Yaskawa VFD becomes an easy purchasing decision.

Conclusion

A Yaskawa VFD is more than a speed control; it is a platform for efficiency, safety, and data‑driven maintenance. The controller’s high MTBF, integrated power‑quality hardware, and intuitive tools ensure a fast payback whether you retrofit a single pump or design a complex manufacturing line. Add smart networking, and the same hardware that saves kilowatts becomes an IIoT sensor feeding live metrics to your cloud dashboard.

Nevertheless, technology alone does not guarantee success. Engineers must choose the correct overload rating, follow grounding best practices, and document baseline energy before applying for rebates. When you follow the steps in this guide, you satisfy those requirements in a logical order. Because the procedures match industry standards—UL, IEC 61800‑5‑1, and IEEE 519—they also streamline code approval.

Should questions arise, Precision Electric’s technical team remains ready to help. Visit our resource library for white papers, read our in‑depth troubleshooting guide, or schedule an on‑site startup with our field‑service crew. Moreover, the manufacturer continues to release free firmware updates, so performance and cybersecurity evolve over the life of the equipment. In short, investing in a Yaskawa drive today puts your operation on a path to lower costs and higher reliability for many years to come.
