Introduction: What Is an AC Motor VFD and Why Is It Essential?

In industrial and commercial settings, an AC motor VFD (Variable Frequency Drive) is an essential electronic device used as a motor speed controller for three-phase AC induction motors. Its primary function is to precisely manipulate the speed, torque, and direction of a motor by adjusting the frequency and voltage of the electrical power supplied to it. Before the advent of VFDs, motors ran at a fixed speed determined by the line frequency, and mechanical methods like gears, dampers, or valves were required to throttle the output, resulting in significant wasted energy and mechanical wear. A VFD, also known as an adjustable speed drive or inverter drive, provides a far more elegant and efficient solution for controlling motor-driven applications, from simple fans to complex industrial machinery.

AC Motor VFD: Efficiency and Process Control

The importance of a Variable Frequency Drive stems from its profound impact on energy efficiency, process control, and equipment longevity. By matching the motor’s speed to the exact demands of the load, a VFD can yield substantial energy savings, particularly in variable torque applications like centrifugal pumps and fans where power consumption is proportional to the cube of the speed. For instance, reducing a fan’s speed by just 20% can cut its energy use by nearly 50%, a principle explored in studies by Plant Engineering. Furthermore, VFDs provide smooth starting and stopping through controlled acceleration and deceleration ramps, which drastically reduces mechanical shock and stress on belts, bearings, and couplings, thereby extending the life of the entire system as noted by Mroelectric.

At its core, a VFD operates by converting the incoming fixed-frequency AC power into DC power, and then inverting it back into a variable-frequency, variable-voltage AC output. According to MRO Electric, this process involves three main sections: a rectifier, a DC bus with capacitors to smooth the power, and an inverter section using Insulated Gate Bi-polar Transistors (IGBTs). The inverter uses Pulse Width Modulation (PWM) to create a simulated AC sine wave at the desired frequency. In order to maintain proper torque, the drive typically maintains a constant Volts per Hertz (V/Hz) ratio. This sophisticated control allows for optimized performance that was previously unattainable with across-the-line motor starters, making the VFD an indispensable tool in modern automation and energy management.

The Core Components of a Standard VFD System

To effectively provide VFD motor control, a standard drive fundamentally alters the incoming power through several stages. At its core, a Variable Frequency Drive consists of three primary sections that work in sequence to accomplish this task. According to MRO Electric, these are the rectifier, the DC bus, and the inverter. In essence, the drive takes standard fixed-frequency AC power, converts it into DC power, and then synthesizes a new AC output with the desired frequency and voltage to control the motor’s speed. This multi-step process is what enables such precise control over an AC Induction Motor.

The first stage, the rectifier, uses a diode or thyristor bridge to convert the incoming three-phase AC voltage into a pulsating DC voltage. Subsequently, this DC voltage is smoothed and stabilized by the DC bus, which consists of large capacitors that store the electrical energy, much like a small reservoir. Finally, the inverter section performs the most critical function. It utilizes sophisticated semiconductor switches, typically Insulated Gate Bi-polar Transistors (IGBTs), to chop up the DC voltage. As explained by Mroelectric, this is done using a technique called Pulse Width Modulation (PWM) to create a simulated AC sine wave at any required frequency.

Orchestrating this entire process is the drive’s control logic, which is essentially a powerful microprocessor. This “brain” receives external commands, such as a speed setpoint from a PLC, and then precisely controls the firing of the IGBTs in the inverter. For instance, it constantly calculates and maintains the correct Volts per Hertz (V/Hz) Ratio to ensure the motor has adequate torque without overheating, a characteristic discussed by sources like MRO Electric. In addition to speed control, this onboard intelligence also manages protective functions, monitors performance, and facilitates communication with broader automation systems.

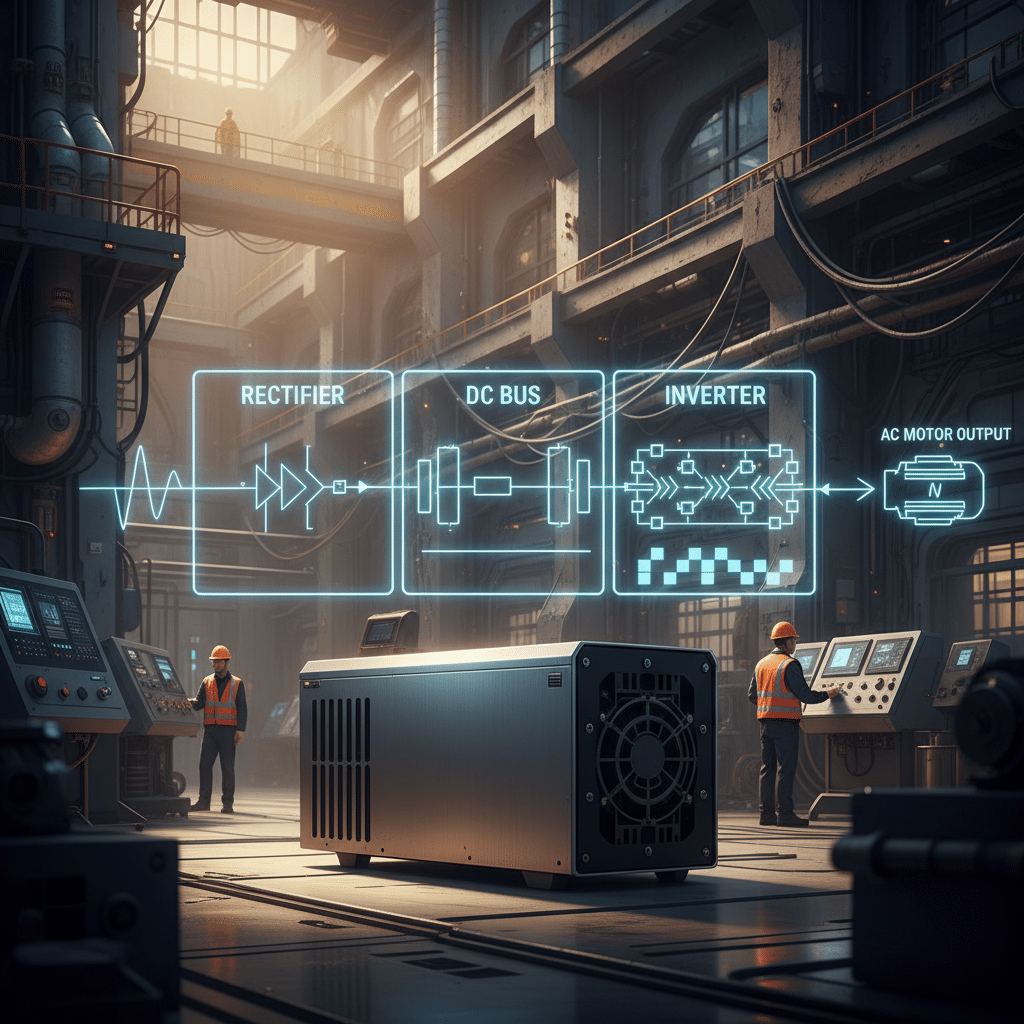

The Three Stages of How a Variable Frequency Drive Works

A variable frequency drive provides precise motor speed control by fundamentally altering the electrical power supplied to an AC motor. Instead of simply passing power through, the drive executes a three-stage conversion process to build a new, adjustable output. According to MRO Electric, these primary sections are the rectifier, the DC bus, and finally, the inverter. In essence, the VFD converts the incoming fixed-frequency AC power to DC, and then it synthesizes a new AC power output with a variable frequency and voltage, allowing for granular control over the motor’s speed and torque.

The process begins at the rectifier, or converter, stage. Here, the drive takes the standard three-phase AC input and converts it into Direct Current (DC) power. This is typically accomplished using a full-wave diode bridge or a more advanced thyristor-based arrangement. Subsequently, the raw, pulsating DC voltage from the rectifier is sent to the DC bus, also known as the DC link. This section uses large capacitors to smooth out the ripples in the DC voltage, thereby creating a stable and clean DC supply that the final stage can use as its power source.

Finally, the inverter stage performs the most critical function of the AC motor VFD. It takes the filtered DC power from the bus and, using high-speed switches like Insulated Gate Bi-polar Transistors (IGBTs), chops it up to create a simulated three-phase AC waveform. The most common method for this is Pulse Width Modulation (PWM), as noted by MRO Electric. By carefully controlling the timing and width of these pulses, the inverter can precisely regulate both the output voltage and frequency. This allows it to maintain the crucial Volts per Hertz (V/Hz) ratio needed for stable motor operation across a wide range of speeds, as explained by industry resources like MRO Electric Blog.

Critical Parameters for Programming Your VFD Motor Control

Properly programming your VFD motor control is the most critical step to ensure efficient, safe, and reliable operation. Initially, you must input the fundamental motor nameplate data into the drive, including the motor’s voltage, full load amps (FLA), rated frequency, and synchronous RPM. This information allows the adjustable speed drive to build a correct electronic model of the connected AC Induction Motor. For instance, getting these basic parameters right is essential because they form the basis for all advanced control functions and protective features. An incorrect FLA setting could lead to inadequate motor protection or nuisance tripping.

Once the basic data is entered, configuring the control method is the next step. For most general-purpose applications, the Volts per Hertz (V/Hz) ratio is the primary parameter. According to MRO Electric, maintaining this constant ratio ensures the motor produces consistent torque across its speed range. Although it’s a robust method suitable for fans and pumps, it is vital to match the V/Hz pattern to the load type. As noted by Darwinmotion, more advanced methods like vector control offer tighter regulation but often require an autotune procedure.

Finally, setting acceleration and deceleration times is crucial for equipment longevity. For example, extending the acceleration time for high-inertia systems prevents excessive inrush current that could trip the drive. Conversely, setting deceleration too short on a similar load can cause an overvoltage fault from regeneration. In addition, you must configure the drive’s current limit, which is a key protective function. This parameter is typically set just above the motor’s FLA, as resources like Wolf Automation Blog explain, to prevent thermal damage to the motor during sustained heavy use.

Key Benefits: Energy Savings and Process Control with an Ac Drive

The primary benefit of integrating a VFD for an ac motor is the dramatic potential for energy savings, especially in variable torque applications like centrifugal pumps and fans. Instead of running a motor at full speed against a throttling valve, an adjustable speed drive precisely matches motor speed to load demand. According to Plant Engineering, even a small speed reduction yields significant power savings due to the cube law relationship. This efficiency, as a result, eliminates wasted energy and can drastically lower operational costs.

Beyond energy reduction, an ac drive offers vastly improved process control and equipment longevity. The ability to precisely manage acceleration and deceleration provides a soft start, which minimizes the mechanical shock and high inrush currents associated with across-the-line starting. This gentle handling reduces stress on belts, gears, and bearings, thereby extending the life of the entire mechanical system. As noted by Wolf Automation, these factors directly contribute to lower maintenance needs and less unscheduled downtime.

Furthermore, the advantages extend to the electrical infrastructure itself. An AC drive inherently improves the system’s power factor, drawing power from the line near unity. This can eliminate costly penalties from utility providers, a benefit highlighted by Border States VFD Energy Savings. Additionally, the controlled start prevents voltage sags that might disrupt other sensitive equipment. In summary, the precise motor speed controller is a powerful tool for optimizing an entire industrial process, a fact demonstrated in case studies like one from the City of Columbus detailed by Rügert Mielke Blog.

Common VFD Faults and Basic Troubleshooting Steps

Even the most robust AC motor VFD systems can experience occasional faults, making a basic understanding of troubleshooting essential for technicians. Before approaching any drive for inspection, it is imperative to follow strict Lockout/Tagout (LOTO) procedures to guarantee electrical safety. For instance, you must wait the manufacturer-specified time (often 5-10 minutes) for the internal DC bus capacitors to fully discharge, a critical step detailed by resources like the ABB Drives Technical Guides. Most issues you will encounter fall into common categories such as overcurrent, overvoltage, undervoltage, and overtemperature.

An overcurrent fault signals that the motor is drawing more current than the drive’s configured limit, which can be triggered by rapid acceleration, a mechanical jam, or a short in the wiring. To diagnose this, first examine the connected equipment for any physical blockages. Subsequently, inspect the motor cable insulation for signs of wear or damage, as experts at Pumps & Systems note that cable integrity is crucial. If the load and wiring appear fine, a practical next step is to increase the VFD’s acceleration ramp time parameter, which can effectively soften the motor’s startup current demand.

Overvoltage faults, in contrast, frequently occur during deceleration with high-inertia loads, causing the motor to act as a generator and send voltage back to the drive. The solution is often to increase the deceleration time or add a dynamic braking resistor. An undervoltage fault, on the other hand, typically points to an issue with the incoming AC supply. An overtemperature alarm indicates a cooling problem; check for clogged heatsinks or failed fans. As publications like Plant Engineering often highlight, performing routine preventive maintenance like cleaning drive enclosures is key to long-term reliability and, according to Wolf Automation, extends equipment life.

Installation and Safety Guidelines for AC Motor VFDs

Proper installation is a critical first step for ensuring the longevity and reliable operation of any ac motor VFD. Adhering to the manufacturer’s specifications and the National Electrical Code (NEC) is not merely a suggestion but a requirement for safe and efficient performance. A correct initial setup prevents common operational faults and ensures the motor speed controller functions as designed from day one. Consequently, this diligence minimizes downtime and protects the equipment from premature failure, establishing a solid foundation for the system’s entire service life.

Above all, personnel safety must be the top priority when working with a variable frequency drive. These devices contain a DC bus with large capacitors that can store a lethal electrical charge for several minutes even after input power is removed. For this reason, always follow strict Lockout/Tagout (LOTO) procedures and adhere to NFPA 70E standards for arc flash safety. According to the ABB Drives Technical Guides, you must wait the recommended time after disconnecting power to allow the capacitors to fully discharge before beginning any service. Never assume the drive is safe to touch immediately after shutdown.

The physical environment and mechanical mounting of the drive are also crucial factors. VFDs must be installed in a clean, dry location with adequate ventilation to dissipate heat effectively, as overheating is a primary cause of component failure. In addition, proper grounding is essential to mitigate electrical noise and protect motor bearings from damaging shaft currents, an issue detailed by Pumps & Systems. Special attention should also be paid to cable length between the drive and the motor; long runs can cause voltage reflection issues that stress motor insulation, as noted in NEMA standards and explained by industry resources like Pumps & Systems.

Preventive Maintenance for Drive Longevity

To ensure the reliability and longevity of any ac motor VFD, a consistent preventive maintenance schedule is indispensable. Proactive upkeep not only prevents catastrophic failures and costly downtime but also guarantees that the adjustable speed drive operates at peak efficiency. Ultimately, as noted by experts at Wolf Automation Blog, these practices directly extend the lifespan of both the drive and the connected motor equipment. This systematic approach mitigates the gradual wear and tear that can compromise system performance over time.

Before performing any hands-on maintenance, always adhere to strict Lockout/Tagout (LOTO) procedures to de-energize the equipment completely. Crucially, you must wait the manufacturer’s recommended time—often five to ten minutes—after removing power to allow the internal DC bus capacitors to discharge fully, a critical safety step highlighted in guides from the ABB Drives Technical Guides. Once the unit is confirmed safe, perform a thorough visual inspection for dust, moisture, or signs of corrosion, and verify that all terminal connections are secure, as vibrations can loosen them over time.

Effective thermal management is another cornerstone of VFD reliability. Therefore, regularly inspect and clean heatsink fins and ensure that cooling fans are operational and free of debris, as overheating is a primary cause of failure for power components like IGBTs. Maintaining a clean, cool, and dry operating environment significantly reduces stress on these sensitive electronics. According to Plant Engineering, this reduction in stress is a key benefit of proper VFD implementation and maintenance, ensuring the drive functions correctly for years.

Conclusion: Maximizing Efficiency with Your Ac Motor VFD

Mastering the intricacies of an ac motor VFD transforms it from a simple component into a powerful tool for optimization. Throughout this guide, we have journeyed from the fundamental principles of VFD operation and core components to the practical steps of installation, programming, and troubleshooting. Ultimately, the correct implementation of a variable frequency drive leads to substantial energy savings and precise process control, as demonstrated in case studies like the one from the City of Columbus highlighted by Rügert Mielke Variable Frequency Drives Benefits. This technology, as explored in research available on ResearchGate Publication, is a cornerstone of modern industrial efficiency.

In conclusion, the benefits of adopting VFDs extend far beyond immediate energy reduction. By ensuring smooth starts and stops, these drives significantly reduce mechanical stress on motors and connected equipment, which consequently extends equipment lifespan and lowers maintenance costs, a point reinforced by Wolfautomation. Furthermore, continuous learning and strict adherence to safety standards like NFPA 70E and proper Lockout/Tagout procedures are paramount for both personnel safety and system reliability. As technology evolves, so do the capabilities of these drives, offering even greater potential for smart industrial applications as noted by Industlabs. Your expertise in VFD motor control is a critical asset enabling safer and more efficient operations.
