Allen Bradley Power Flex 525 — Specs, Setup, And Best Uses

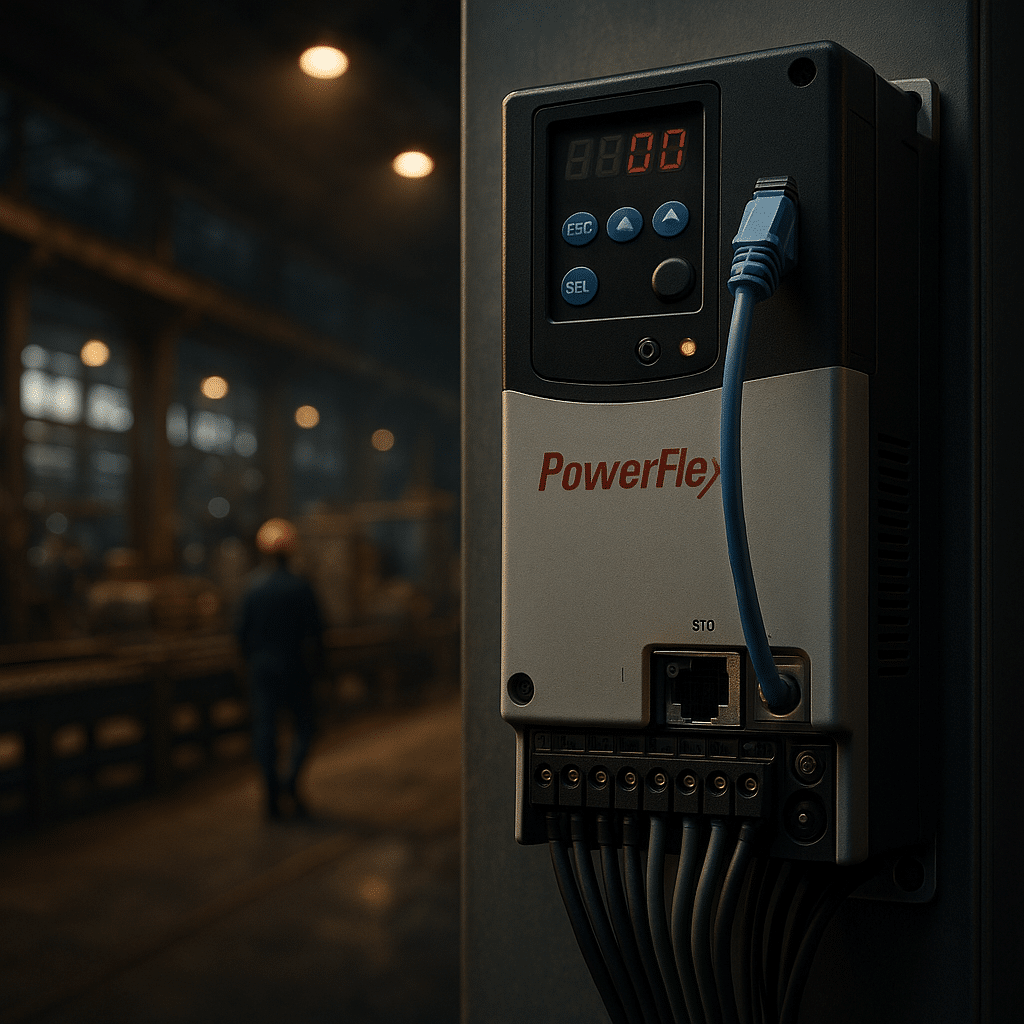

Allen Bradley Power Flex 525 is a compact, network-ready AC drive that delivers efficient, safe motor control without complicating commissioning. It combines sensorless vector control, optional closed-loop feedback, dual PID, and Safe Torque Off to handle both variable‑torque and constant‑torque loads. Because the drive ships with embedded EtherNet/IP and a USB‑powered, “MainsFree” configuration mode, teams can stage spares and deploy quickly. Moreover, the platform covers 0.5–30 hp across global voltages, includes a standard brake chopper, and uses conformal coating for harsher environments. Consequently, many OEMs standardize on this platform when they want tight Logix integration and dependable field service. For a deep spec sheet, see the official PowerFlex 520 series technical data and the summarized product brochure.
What The Allen Bradley Power Flex 525 Does
At its core, the Allen Bradley Power Flex 525 regulates motor speed by controlling the applied voltage and frequency. However, it goes far beyond basic V/Hz control. With sensorless vector control, the drive estimates rotor flux and produces higher starting torque and quicker response. Additionally, you can add an encoder option to run closed‑loop vector control for accurate speed holding and consistent indexing. Furthermore, the integrated dual PID loops let maintenance teams regulate process variables—such as pressure or flow—directly in the drive. Because the control module supports USB “MainsFree” programming, technicians can configure units at a desk, clone multiple devices, and deploy confidently. Finally, built‑in Safe Torque Off (STO) provides a certified Category 0 stop without cycling main power, which shortens recovery time after a safety event and reduces wiring. For fundamentals, our primer on variable frequency drives provides helpful background before you dive into parameters.
If you prefer step‑by‑step setup, start with our VFD programming guide, then map I/O using the on‑drive status screens. Moreover, when your application involves pumps or fans, review our focused article on VFDs for pumps to leverage the internal PID, sleep mode, and pipe‑fill strategies—features that the PowerFlex 525 handles well. In every case, document baseline current draw and speed range so you can verify improvements after commissioning.
Common Causes And Practical Solutions
Improper deceleration is a frequent cause of DC‑bus overvoltage. Therefore, enable the internal brake transistor and size an external resistor when the load has high inertia or frequent stops; if symptoms persist, our troubleshooting guide on overvoltage during decel explains practical resistor sizing. Additionally, long motor leads can create reflected‑wave stress, so installers should apply a dV/dt or sine filter and use inverter‑duty cable. Because heat shortens component life, panels need clean airflow and realistic ambient limits; derate above 50 °C and consider the optional fan kit for hotter spaces. Moreover, miswired control inputs are a common startup issue: verify source versus sink logic, confirm 24 VDC reference and common, and use the input‑status display during I/O checkout.
Finally, harmonic distortion on weak feeders may require line reactors or an active filter to meet IEEE 519; larger PF525 frame sizes include a DC choke that improves current waveform quality. For broader reliability, review our quick diagnostics on VFD overheating and ground‑fault trips, and remember that Precision Electric offers full electric motor repair if testing reveals motor‑side defects. As a result, most nuisance trips disappear once decel ramps, braking, cabling, and cooling are addressed.
Configuration, Safety, And Networking For The Rockwell PowerFlex 525
The drive arrives ready for networks. It provides an embedded EtherNet/IP port for cyclic control, diagnostics, and Automatic Device Configuration, so a replacement can inherit parameters from the PLC. Moreover, an RS‑485 port supports DSI and Modbus RTU for multidrop applications, which helps on cost‑sensitive retrofits. As for safety, dual‑channel STO meets SIL 2/PL d when wired correctly and removes gate signals to the output stage to prevent torque generation. In practice, the function integrates with an e‑stop or guard switch for a Category 0 stop. Furthermore, StepLogic sequences and an energy‑optimizer reduce PLC code on small machines and trim magnetizing current at light loads. Because the firmware also supports permanent‑magnet motors, users can leverage high‑efficiency designs without changing the platform. For manufacturer specifics, consult the official PowerFlex 525 specifications.
Practical Control Modes
V/Hz works for general‑purpose fans and pumps. However, sensorless vector control unlocks higher torque at low speed and faster recovery from load changes. Additionally, closed‑loop vector with an encoder improves speed regulation for indexing conveyors and extruders. As a result, builders can hold line speed within tight limits, even as viscosity or tension shifts. Moreover, the dual PID loops manage process feedback and trim setpoints without a separate controller. Consequently, integrators often map one loop to pressure while the second loop supervises temperature or provides cascade control. Finally, ride‑through features maintain operation during short sags by using the spinning motor as an energy source, and a “half‑bus” mode can continue reduced speed during deeper dips. For competitor context, compare Lenze’s i550 feature set on the i550 product page.
Maintenance And Lifecycle Tips
Plan for ventilation and dust control, then verify that heat‑sink fins stay clear. Additionally, keep a parameter backup on a laptop or secured server, and enable Automatic Device Configuration so a spare inherits the exact setup. Because electrolytic capacitors age, schedule a health check at the ten‑year mark or during major shutdowns. Moreover, check braking‑resistor wiring periodically and confirm the thermal contact is intact. For safety, test both STO channels during annual lockout validations and record the results. Finally, trend current, bus voltage, and fault codes from the PLC; early warnings reduce downtime and help target root causes. For a manufacturer contrast on longevity and microdrive design, see Eaton’s DM1 documentation (DM1 overview PDF) and Yaskawa’s GA500 details on the GA500 product page.
Product Recommendations And Sizing For The PowerFlex 520 Series
Start with motor full‑load current and duty class. Choose a Normal Duty size for variable‑torque loads, and select a Heavy Duty rating for conveyors, mixers, and lifts. Next, include input impedance for harmonic control, then specify an output load reactor or a dV/dt filter when motor leads exceed manufacturer guidance. Additionally, budget for a braking resistor when fast deceleration or vertical loads demand it. Because networking saves hours, standardize on EtherNet/IP where possible and reserve the RS‑485 port for simple multidrop retrofits. Finally, document parameter sets for different operating profiles so maintenance can swap recipes without hunting through the menu. To browse categories and accessories, start with core AC variable frequency drives, add input line reactors and output load reactors, and compare brands like ABB, Yaskawa, and Eaton.
Conclusion: When To Choose
Select this platform when you need a compact footprint, native EtherNet/IP, and integrated safety. It fits pumping, conveying, and light positioning duties while keeping commissioning simple. Moreover, the feature set rivals competitors such as Yaskawa GA500, ABB ACS580, Eaton DM1, and Lenze i550, yet the Logix integration often lowers lifecycle cost in Rockwell‑centric plants. If your application requires SIL 3 safety over network, consider the PowerFlex 527 or add external safety hardware. Otherwise, the PowerFlex 525 drive provides the right balance of capability, price, and serviceability for day‑to‑day production. For energy‑optimization tips that apply to this class of drives, review Rockwell’s article on evaluating motor and drive efficiency.
