Lenze PositionServo 940
Lenze manufactures products for advanced control technology in the field of industrial automation. Lenze produces affordable and flexible products for applications that use single-axis controllers, precision torque, and velocity controls. Lenze products range in power ratings from less than 1 kilowatt through 370 kilowatt and can be used for synchronous and asynchronous servo motors. Lenze products use Windows based application software for ease of commissioning and excellent diagnostic tools.Products range in power from less than 1kW up to 370kW for both synchronous and asynchronous servo motors. Easy to use Windows based application software allows you to define your motion applications and provides excellent diagnostic tools for completing your design.

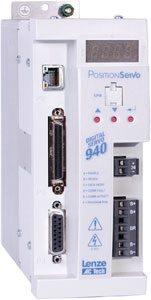

PositionServo 940 Features
The Lenze PositionServo 940 series drives can be used in every level of industrial applications. From basic torque and velocity control, to fully programmable coordinated motion.Every PositionServo 940 drive ships withMotionViewOnBoard,MotionView; these are the programming, set-up and diagnostic tools. The programming, set-up and diagnostic tools are embedded into the 940 drive and can communicate from any web browser via Ethernet. Communication and networking for the PositionServo 940 are handled over Ethernet as a standard, but the drive can also provide options for EtherNet/IP, DeviceNet, CANopen, PROFIBUS and RS-485 Modbus.
The PositionServo 940 can perform along with the most high-level control and drive solutions in the market, and can work in both a centralized or decentralized control setup. By combining a highly efficient servo drive with a flexible, easy-to-use control, the PositionServo is packed with features and performance all for an affordable price. There are 2 different forms of PositionServo; the 940 series is for encoder-based applications and the 941 series is for Resolver-based applications.PositionServo 940 drives are compatiable with the Lenze MCS series servo motors, third party AC permanent magnet synchronous motors and encoder or resolver feedback motors. Lenze Position Servo 940 is certified by UL, cUL and CE. PositionServo940 also features electronic gearing and torque, velocity and position control. PositionServo 940 comes with a Two-Year manufacturer’s warranty.
Technical documentation, product manuals, application notes,MotionViewSoftware, MotionMatchsizing software, and other downloads for the PositionServo 940 product is available on the Lenze Americas website.
