Frequency Drive for Three Phase Motor: A Selection Guide
Estimated reading time: 13 minutes
Introduction: Why the Right VFD Selection Is Critical for Motor Performance
Selecting the correct frequency drive for a three phase motor is a critical decision that extends far beyond simple RPM adjustment. While the primary function of a Variable Frequency Drive (VFD) is to provide precise three phase motor speed control, its impact on system efficiency, equipment longevity, and operational costs is profound. A properly matched VFD, for instance, can significantly reduce energy consumption by ensuring the motor only draws the power required by the load, a key benefit noted by experts at Danfoss. In essence, this device transforms a fixed-speed motor into a variable-speed asset, unlocking major performance and financial advantages.
Avoiding VFD Mismatch for 3 Phase Motors
Conversely, a mismatch between the VFD and the motor or its application can lead to a host of problems, including poor performance, nuisance tripping, and even premature motor failure. An undersized drive will fail to provide adequate starting torque, while an oversized one can be inefficient and economically unsound. Furthermore, features like soft-starting, as detailed by Pumps Organization, are essential for minimizing the mechanical shock and electrical inrush current that drastically shortens the life of motors, couplings, and connected equipment. Therefore, the selection process must carefully account for load type, voltage, current ratings, and environmental conditions to ensure reliability.
Ultimately, the goal is to create a harmonized system where the drive, motor, and load work in concert to achieve optimal results. Proper selection of a VFD for a 3 phase motor enables what Danfoss Variable Frequency Drive highlights as intelligent motor control, which improves process precision and reduces waste. This guide provides the technical insights needed to navigate the specifications, features, and potential pitfalls of VFD selection. In summary, a frequency drive for a three-phase motor is not just a component but a transformative technology that, when chosen correctly, maximizes performance and delivers a substantial return on investment, as confirmed by industry leaders like Danfoss.
Understanding the Core Function of a VFD for 3 Phase Motor Control
At its core, a frequency drive for three phase motor applications serves as a sophisticated power converter, with its primary job being to provide precise three phase motor speed control by altering the frequency of the electrical power supplied to the motor. In essence, the Variable Frequency Drive (VFD) takes standard, fixed-frequency AC power and transforms it into a variable-frequency, variable-voltage output. According to Danfoss Variable Frequency Drive, this process enables not only significant energy savings but also optimized control over the driven system. This entire conversion happens in three distinct stages within the VFD motor control unit.
VFD Converter & DC Bus Power Flow
The process begins at the converter stage, where the incoming AC line power, typically at a fixed 50 or 60 Hz, is rectified into DC power. As detailed by Precision Electric, this is accomplished using a full-wave diode bridge rectifier. Subsequently, this raw DC voltage is smoothed out by large capacitors in what is known as the DC bus or DC link. This creates a stable, clean DC voltage source that is ready for the final stage of the process, ensuring the drive has a consistent power reserve to draw from.
Finally, the inverter section takes over. This stage uses high-speed transistors, such as Insulated Gate Bi-polar Transistors (IGBTs), to chop up the DC voltage from the bus and, through a technique called Pulse Width Modulation (PWM), synthesizes a new, three-phase AC output waveform. The key here is that the VFD can vary the frequency of this output, which in turn directly controls the speed of the connected Three-Phase Induction Motor. Furthermore, Pumps Organization explains that most VFDs maintain a constant volts-per-hertz (V/Hz) ratio to ensure the motor produces consistent torque across its operating speed range. One notable capability, as mentioned by Yaskawa, is that this internal conversion allows some models to accept single-phase input while delivering a three-phase output.
Choosing the correct VFD is the first step to ensuring your three-phase motor operates efficiently and reliably. This selection process directly impacts performance and equipment longevity.
Step 1: Matching VFD Specifications to Motor Nameplate Data
Selecting the correct variable frequency drive is the foundational step for achieving reliable three phase motor speed control. Consequently, this process begins by meticulously cross-referencing the VFD’s technical specifications with the data stamped on the motor’s nameplate. This nameplate contains all the critical information required, including voltage, frequency (Hz), horsepower (HP), and most importantly, the Full Load Amperage (FLA). According to Danfoss Drives, a VFD’s primary function is to adjust the frequency and voltage supplied to an AC motor. Therefore, ensuring these fundamental parameters align perfectly is non-negotiable for proper system function and longevity.
Current Rating for 3 Phase Motor VFD Sizing
The most critical value for matching a VFD for a 3 phase motor is the current rating. The VFD’s continuous amperage output must meet or, ideally, exceed the motor’s FLA rating. For instance, if a motor nameplate indicates an FLA of 10 amps, the selected VFD must have a continuous output rating of at least 10 amps. While horsepower is a useful guide, sizing based on FLA is more precise because it accounts for motor efficiency and power factor. As explained by Pumps, managing current is essential, especially during motor startup. Choosing an undersized drive will inevitably lead to overload faults, nuisance tripping, and potential damage to the VFD’s power components.
Furthermore, you must consider the motor’s Service Factor (SF), which is often listed on the nameplate. A service factor of 1.15 indicates the motor can safely handle a 15% overload for short periods, which also means it will draw 15% more current than its FLA rating during that time. In other words, a VFD must be sized to accommodate this potential peak current, not just the nominal FLA. Many VFDs have their own overload capability ratings, which should also be factored into the decision. A detailed review of these parameters, as discussed in resources from Yaskawa SG.F6C.10 Document, ensures the selected frequency drive for a three phase motor can handle the full range of the motor’s operational demands safely and effectively.
Step 2: Constant Torque Vs. Variable Torque Loads
After matching motor data, the next critical step is identifying the application’s load type before selecting a frequency drive for a three phase motor. Loads are broadly categorized as either constant torque or variable torque, and a mismatch can cause nuisance tripping or premature drive failure. Constant torque (CT) loads, for instance, require nearly the same amount of torque at low speeds as at high speeds. Consequently, applications like conveyors, extruders, and positive displacement pumps demand a robust VFD that can provide full current throughout the entire speed range, a point emphasized by experts at Danfoss.
In contrast, variable torque (VT) loads require significantly less torque at lower speeds, following what are known as the Affinity Laws for centrifugal machines. Common examples include centrifugal fans and pumps; for instance, reducing a pump’s speed by just 20% can cut energy consumption by nearly 50%, a major benefit highlighted by Precision Electric. This characteristic allows for a VFD with a lower overload rating, saving on initial equipment costs. Therefore, properly identifying a VT application is key to maximizing efficiency, as detailed by industry resources like Pumps Organization.
Most modern VFDs, including the Yaskawa SG.F6C3.10 Document V1000, Eaton PowerXL, and Siemens SINAMICS series, feature dual ratings for both normal duty (VT) and heavy duty (CT). Applying a drive’s VT rating to a CT load will likely cause an overcurrent fault because it cannot supply the necessary starting torque. Conversely, using a more expensive heavy-duty drive for a simple fan application is an unnecessary expense. In short, matching the VFD’s duty rating to the load profile is fundamental for ensuring both operational reliability and total cost-effectiveness.

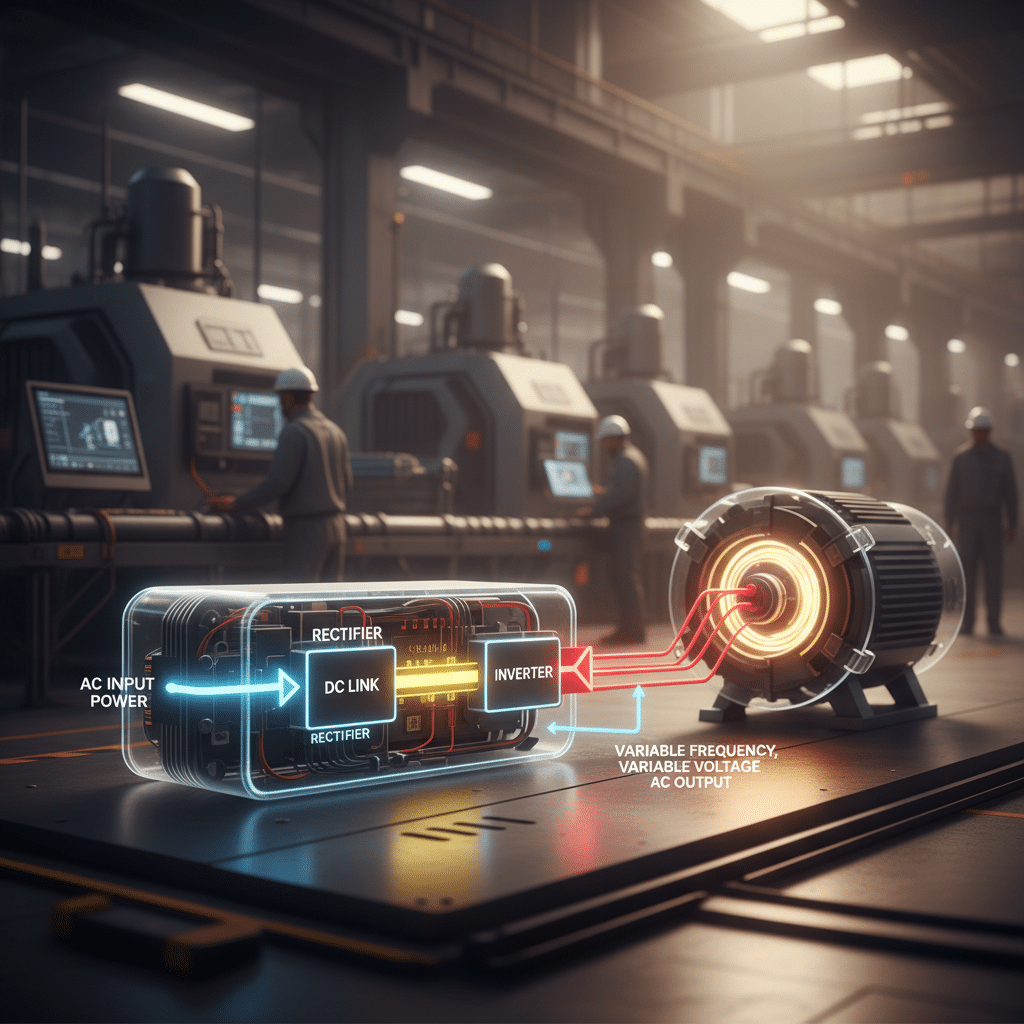

A variable frequency drive (VFD) acts as the brain for the motor, taking the standard power supply and adjusting its frequency to provide precise three phase motor speed control, which enhances efficiency and performance.
Step 3: Evaluating Input Power and Environmental Conditions
Selecting the correct frequency drive for three phase motor applications fundamentally depends on matching it to the facility’s available power. First and foremost, you must verify the input voltage (e.g., 230V, 480V), phase, and frequency (50 or 60 Hz) of the supply line. According to Precision Electric, a VFD works by first taking this incoming AC line power and rectifying it. While most industrial motors are three-phase, some smaller VFDs are designed to accept single-phase input power and deliver a three-phase output, a feature highlighted by Pumps. Consequently, confirming this compatibility is an essential first step to prevent immediate equipment damage upon startup.
Matching VFD Motor Control to the Environment
Beyond electrical characteristics, the physical environment dictates the required VFD motor control enclosure and component selection. Operating temperature, humidity levels, altitude, and the presence of airborne contaminants like dust or corrosive vapors must be carefully considered. For instance, a drive installed in a clean, climate-controlled room may only need a NEMA 1 enclosure, whereas a washdown area in a food processing plant necessitates a waterproof NEMA 4X rating. As noted by Yaskawa SG.F6C3.10, many drives are built for specific industrial fan and pump applications, which implies they are designed for varied environmental conditions. Ignoring these factors can significantly reduce the service life of the three phase motor speed control.
Ultimately, overlooking these power and environmental factors can lead to catastrophic failure of the adjustable speed controller. An improperly ventilated enclosure will cause the drive to overheat and trip on a fault, while moisture or conductive dust can lead to short circuits and permanent damage. Therefore, a thorough assessment of the power quality and installation site is a non-negotiable part of the engineering process. This diligence ensures the drive operates reliably, maintains safety, and delivers all the key benefits that VFDs provide, as outlined by sources like Danfoss, maximizing the return on investment.
Step 4: Defining Control Methods and I/o Requirements for Your AC Motor Drive
Determining the right control strategy is a crucial step when selecting a frequency drive for three phase motor applications. Consequently, you must define how the drive will receive commands to start, stop, and adjust speed. These commands are managed through the drive’s Input/Output (I/O) terminals, which serve as the interface between the VFD and the rest of your control system, such as a Programmable Logic Controller (PLC) or simple pushbuttons. For instance, basic setups might only require a two-wire start/stop command, while more advanced systems demand sophisticated communication. As noted by Danfoss Drives, intelligent motor control is a key benefit of modern drives, enabling seamless integration into the overall automation scheme. Therefore, carefully mapping out these I/O needs ensures the selected adjustable speed controller can be properly integrated.
Operating Your VFD: Local & Remote Control
Control methods are typically divided into local and remote operation. Local control involves using the keypad directly on the VFD, which is useful for initial setup and maintenance. In contrast, remote control uses external signals wired to the drive’s terminals. Digital inputs, for example, are used for discrete commands like “run forward” or “emergency stop.” Furthermore, analog inputs are essential for providing a variable speed reference, typically as a 0-10 VDC or 4-20 mA signal from a potentiometer or PLC analog output card. According to Pumps Organization, VFDs use these inputs to precisely modulate motor speed. It is also important to consider the number of I/O points required; for instance, brands like the Eaton PowerXL or Allen-Bradley PowerFlex series offer various I/O expansion modules to accommodate complex applications, as detailed in documentation from manufacturers like Eaton.
In addition to inputs, you must define the necessary output signals from the VFD motor control. These outputs provide critical status feedback to your primary control system. For example, configurable relay outputs can be programmed to indicate conditions such as “drive running,” “drive at set speed,” or “drive fault.” This feedback is vital for system monitoring and safety interlocking. An analog output can also be configured to send data like actual motor speed or current draw back to a PLC, which is invaluable for process control and diagnostics. Ultimately, defining your complete I/O list—including both inputs and outputs for control and monitoring—is a fundamental step before purchasing a 3 phase inverter drive. This ensures the model you choose, whether from Siemens SINAMICS, Yaskawa, or another reputable brand, has the capacity to meet your system’s functional requirements.
The first crucial step in achieving reliable three phase motor speed control is carefully matching the VFD’s specifications with the motor’s nameplate data to ensure compatibility and safety.
Step 5: Sizing, Safety, and NEC 430 Compliance for Your VFD Motor Control
Properly sizing a frequency drive for three phase motor operation is a critical step that goes beyond simply matching the motor’s horsepower rating. Instead, you must select the Variable Frequency Drive (VFD) based on the motor’s Full Load Amp (FLA) rating listed on its nameplate, as this ensures the drive can handle the actual current draw. For instance, according to Danfoss Drives, VFDs are key to optimizing motor control and energy consumption. Sizing a drive too small creates a fire hazard and leads to nuisance tripping, while significant oversizing is inefficient and unnecessarily expensive. Therefore, careful calculation is essential for a reliable system.
Beyond sizing, ensuring safety and compliance with the National Electrical Code (NEC) is non-negotiable for any VFD motor control installation. Specifically, NEC Article 430 provides detailed requirements for motor circuits, including the necessary branch-circuit protection (fuses or breakers) and overload protection. While many modern drives like the Eaton PowerXL or Siemens SINAMICS have sophisticated electronic overload capabilities, you must still configure them correctly. Furthermore, always implement strict Lockout/Tagout (LOTO) procedures before performing any maintenance, as this is a fundamental safety practice cited by sources like Pumps that prevents accidental energization.
Ultimately, the manufacturer’s documentation is the final authority on installation requirements, providing specific guidance on wiring, grounding, and programming. Adhering to these instructions, in addition to the standards outlined in NEC 430, guarantees a safe and dependable setup. Many industry experts, as seen in publications from firms like Canroon Industry Insights, emphasize that long-term reliability is directly tied to the quality of the initial installation and commissioning. Consequently, taking the time to verify sizing, confirm code compliance, and implement robust safety protocols will protect both personnel and equipment for years to come.
Step 6: Considering Advanced Features and Network Communications
Beyond simple speed adjustments, the capabilities of a modern frequency drive for three phase motor extend into sophisticated process control and system integration. Consequently, selecting a drive involves evaluating its onboard intelligence and communication options to future-proof your application. Many contemporary VFDs, for example, are equipped with features that can reduce reliance on external controllers like PLCs for simpler tasks. According to Danfoss Drives, these advancements are central to achieving intelligent motor control and optimizing the entire electro-mechanical system. This evolution transforms the VFD from a simple component into a cornerstone of process automation.
Advanced features often include built-in PID (Proportional-Integral-Derivative) loop controllers, which allow the AC motor drive to independently manage process variables like pressure, flow, or temperature without an external controller. Furthermore, many drives feature specialized energy-optimization algorithms that fine-tune the motor’s voltage output to match the true load, thereby minimizing energy waste. As noted by industry analysts, manufacturers increasingly highlight these Canroon Industry Insights energy-saving functions. Some VFD motor control units, such as certain Yaskawa V1000 models, can also handle multi-motor operation, running several smaller motors from a single, appropriately sized drive.
In today’s interconnected industrial environments, network communication is a critical consideration. Drives like the Eaton PowerXL series are designed for seamless integration, supporting common industrial protocols such as EtherNet/IP, Modbus TCP, and PROFINET. This connectivity enables centralized monitoring, control, and data acquisition from a central PLC or SCADA system. In other words, networking simplifies commissioning and provides powerful diagnostic capabilities. As detailed by Eaton PowerXL DG1 VFDs, this allows for advanced diagnostics and remote management, which significantly reduces downtime and streamlines maintenance efforts.
Conclusion: Finalizing Your Three Phase Motor Speed Control Selection
Selecting the optimal frequency drive for a three phase motor is a critical engineering decision that extends far beyond simple speed adjustment. It is about creating a cohesive and efficient system that enhances process control, delivers significant energy savings, and reduces mechanical stress on your equipment. In other words, a well-matched Variable Frequency Drive (VFD) is a transformative tool for intelligent motor control that directly improves your bottom line and system longevity. As detailed by experts at Danfoss Drives, the potential for efficiency gains is a primary driver for VFD adoption across countless industries.
The journey from the motor nameplate to a fully commissioned AC motor drive involves a systematic evaluation of numerous factors. For instance, you must meticulously match VFD specifications to motor data, correctly identify the load as constant or variable torque, and assess all environmental and power quality conditions. Furthermore, defining the necessary I/O and control methods is essential for seamless system integration. According to Pumps Organization, this detailed approach ensures the controller can modulate speed effectively. This comprehensive analysis, including adherence to NEC 430 and safety standards like Lockout/Tagout (LOTO), is a requirement for a safe and reliable installation, a point emphasized by manufacturers like Yaskawa SG.F6C3.10 Datasheet. By following these structured steps, you can confidently select a drive that delivers optimal performance and reliability for years to come.
