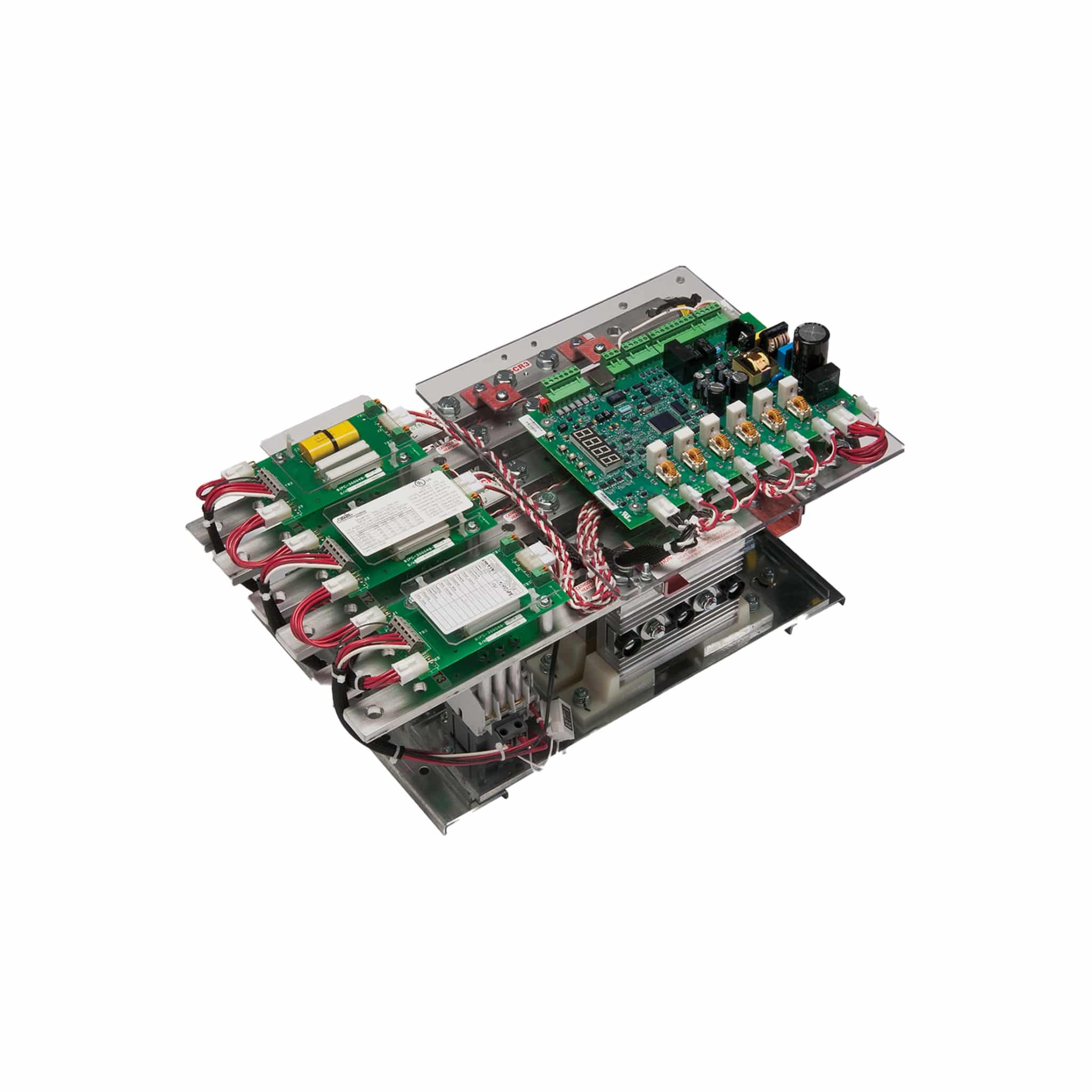

RB3-1-S-361A-16C – Benshaw RB3 Open Chassis Softstarter with MX3 Technology | 150.0 HP @ 240V | 300.0 HP @ 480V | 400.0 HP @ 600V | Max Current: 361.0 Amps | Max Voltage: 600V | Control Voltage: 120 VAC
Send Enquiry for RB3-1-S-361A-16C – Benshaw RB3 Open Chassis Softstarter with MX3 Technology | 150.0 HP @ 240V | 300.0 HP @ 480V | 400.0 HP @ 600V | Max Current: 361.0 Amps | Max Voltage: 600V | Control Voltage: 120 VAC
You can hover your mouse over highlighted product specs to learn more.
Description
Estimated reading time: 15 minutes
Introduction: Taming Motor Startup with Benshaw RB3 Softstarters
The harsh reality of direct-on-line (DOL) motor starting is the immense electrical and mechanical stress it imposes on equipment. This abrupt power application results in high inrush currents and significant torque shock, which can lead to premature failure of couplings, gearboxes, and the motor itself. For this reason, facilities rely on solutions like benshaw rb3 softstarters to provide a controlled, gradual acceleration. According to Hoyer Motors Product News, a soft starter is engineered to limit the initial current, ensuring a smooth ramp-up to full speed. This control is fundamental to enhancing the longevity and reliability of critical industrial systems.
How Benshaw RB3 Softstarters Work
At its core, a soft starter for a motor operates by managing the voltage supplied to the motor terminals. Instead of connecting the motor directly to the full line voltage, a soft starter uses Silicon Controlled Rectifiers (SCRs) to gradually increase the voltage from an initial setpoint to the full potential. Consequently, this method mitigates the electrical surge that strains the power distribution network. As explained by VFDS and Soft Starters, this process reduces stress on motor windings, cables, and the entire electrical network. In other words, the controlled start significantly reduces mechanical shock, protecting driven loads and extending the operational life of the machinery.
Benshaw motor starters, particularly the RB3 series, represent a robust and reliable solution for a wide range of industrial applications. These solid-state controllers are designed for durability in demanding environments. According to the manufacturer, the Benshaw RB3 series features an open chassis design and is built with advanced motor control technology. This makes them an excellent choice for applications such as pumps, conveyors, and compressors where reducing mechanical wear is paramount. For instance, as noted by distributor Trimantec, their rugged build and advanced features are especially beneficial in pumping applications to prevent issues like water hammer. This article will serve as a comprehensive guide to understanding, implementing, and troubleshooting the Benshaw RB3 soft starter.
What Are Benshaw RB3 Softstarters and How Do They Work?
In essence, benshaw rb3 softstarters are a type of solid-state motor controller designed to smoothly ramp up an AC electric motor to its full operating speed. Unlike a traditional across-the-line starter that delivers an immediate, high-current jolt, a soft starter for a motor gradually increases the voltage. Consequently, this controlled start mitigates the mechanical shock on couplings and gearboxes and reduces the electrical stress caused by large inrush currents on the power distribution system. According to Hoyer Motors Product News, this method is fundamentally simpler to install and maintain compared to more complex motor control solutions. Ultimately, this leads to extended equipment life and improved operational reliability.
Benshaw RB3 Softstarter Scr Voltage Control
The core of how Benshaw motor starters function lies in their use of Silicon Controlled Rectifiers (SCRs), which are semiconductor devices that can precisely manage voltage. During motor startup, the RB3's control logic adjusts the firing angle of back-to-back SCR pairs for each phase, effectively "chopping" the AC voltage waveform to deliver a reduced initial voltage. As Se notes, this action limits the initial torque and current, allowing for a smooth, stepless acceleration. The ramp-up time and initial torque are typically user-programmable, enabling technicians to tailor the motor's starting characteristics to the specific needs of the application, such as a conveyor belt or pumping system.
Once the motor reaches its nominal operating speed, the SCRs have completed their primary function. At this point, to improve efficiency and reduce heat generation, the Benshaw RB3-1-S-040A-11C-distributed RB3 starter engages an internal bypass contactor. This contactor creates a direct electrical path from the line to the motor, shunting the current around the SCRs. In other words, as RB3 Open Chassis Soft Starter explains, the bypass contactor carries the full load current while running, which significantly reduces internal heat losses and increases the overall lifespan of the solid-state components. This built-in bypass feature is a key design element that makes the RB3 series both robust and energy-efficient for continuous-duty applications.
Benshaw RB3 softstarters are installed in industrial control panels to reduce the electrical and mechanical stress associated with direct-on-line motor starts, protecting valuable equipment.
Step-by-step Guide to Initial Benshaw RB3 Setup and Wiring
Properly initiating the Benshaw RB3 setup is crucial for safe and reliable motor operation. Before beginning any wiring, it is absolutely essential to de-energize and lock out all power sources according to NFPA 70E and your facility’s Lockout/Tagout (LOTO) procedures. Always consult the official RB3 soft starter manual for detailed diagrams and manufacturer-specific instructions. According to industrial experts at Hoyermotors, a soft starter is often simpler to install than more complex motor control solutions. This initial diligence ensures personnel safety and prevents equipment damage.
Once the system is verified to be in a zero-energy state, you can proceed with the physical installation. Mount the RB3 open chassis securely within a suitable enclosure, ensuring adequate ventilation as specified by RB3 Open Chassis Soft Starter. Next, connect the incoming three-phase power to the L1, L2, and L3 terminals and the motor leads to the corresponding T1, T2, and T3 load terminals. It is critical to use appropriately sized conductors rated for the motor's full load amperage (FLA) in compliance with the National Electrical Code (NEC). Finally, connect the control wiring for start/stop commands and any optional fault relays as per your control schematic.
With the wiring complete, the next step involves configuring the basic parameters on the MX3 control module. For instance, you must program the motor's nameplate FLA to ensure accurate overload protection. Subsequently, set the initial voltage and ramp-up time based on the application's needs; a longer ramp time is typically better for delicate loads to minimize mechanical shock, a key benefit noted by VFDs and Soft Starters. These initial settings establish a solid baseline for commissioning. In fact, LV Solid-State Starters Catalog provides a simulation mode to test settings without energizing the motor.
Programming Your RB3 Soft Starter: a Focus on Key Parameters
Properly programming your Benshaw motor starters is the critical next step after completing the physical installation and wiring. An effective Benshaw RB3 setup depends on tailoring its operation to the specific motor and load, which is accomplished by adjusting a few essential parameters. While the RB3's MX3 controller offers extensive customization, focusing initially on three core settings—Starting Voltage (Initial Torque), Ramp Time, and Current Limit—will address the majority of applications. For instance, these settings are the foundation for controlling the motor's acceleration and protecting the entire system from electrical and mechanical stress. Getting these right ensures a smooth, reliable start-up cycle every time.
Benshaw RB3 Softstarter Ramp Time Settings
The ramp time parameter dictates the duration over which the starter gradually increases the voltage to the motor, from the initial starting level to full voltage. This setting, adjustable from 1 to 40 seconds according to RB3 Soft Starter, directly controls the motor’s acceleration. A short ramp time results in a faster start, suitable for low-inertia loads, whereas a longer ramp time provides a gentler start for heavy or sensitive equipment like conveyor belts or pumping systems, significantly reducing mechanical shock. Similarly, a separate deceleration ramp can be programmed to smoothly stop the load, preventing issues like water hammer in pipes.
In addition to ramp time, starting voltage and current limit are fundamentally important. The starting voltage, or initial torque, must be set high enough to overcome the load's static friction and initiate rotation immediately. If it's too low, the motor may stall; if too high, the start may be too abrupt. Subsequently, the current limit function is designed to cap the maximum current drawn by the motor during startup, as noted by Hoyer Motors Product News. This protects the motor from thermal overload and reduces voltage sag on the electrical network. The RB3 Open Chassis Soft Starter MX3 technology provides precise control over these settings. Always consult the official LV-MX3 User Manual user manual for detailed programming menus and application-specific recommendations.
Benshaw RB3 softstarters are engineered to ensure a smooth, controlled ramp-up for AC motors, which significantly reduces mechanical wear and electrical surges during startup.
Troubleshooting Common Benshaw RB3 Fault Codes
When your Benshaw RB3 soft starters indicate an error, they communicate through specific RB3 fault codes designed to streamline diagnostics and minimize downtime. Effective Benshaw RB3 troubleshooting always begins with consulting the official LV MX3 User Manual user manual to correctly interpret the specific code displayed, as misinterpreting a code can lead to incorrect repairs. Further context on motor protection principles can be found through resources from distributors like Benshaw RB3 Soft Starter and industry experts like VFDs and Soft Starters.
A frequent issue is an 'Overload' fault, which is a critical motor protection function indicating the motor has drawn excessive current, leading to overheating. The first actionable step is to allow the motor to cool completely before investigating the connected mechanical load for any binding, jamming, or other obstructions that increase torque demand. You must also verify that the overload settings programmed into the RB3 unit accurately match the motor's nameplate Full Load Amp (FLA) rating to ensure proper protection.
Faults such as 'Phase Loss' or 'Underload' are also common and often point to external problems rather than an issue with the starter itself. A phase loss fault suggests a complete loss of voltage on one of the three incoming power lines, which could be caused by a blown fuse or a loose connection. An underload fault can indicate a problem like a broken belt or a dry pump, where the motor is no longer connected to its intended load. In these cases, using a multimeter to verify incoming power and inspecting the mechanical system are essential diagnostic steps.
Decoding an Overcurrent (F2) Fault on Benshaw Motor Starters
An F2 Overcurrent fault is one of the more common RB3 fault codes encountered during Benshaw RB3 troubleshooting, indicating that the motor has drawn current exceeding a pre-set trip level. This is a critical protective feature designed to safeguard both the motor and the Solid State Starter's Silicon Controlled Rectifiers (SCRs) from damage. According to industry experts like Hoyer Motors Product News, a soft starter is fundamentally designed to limit inrush current, so an overcurrent fault points to a significant problem in the system. The trip can occur during the starting ramp, while running at full speed, or even during a soft stop sequence, providing clues to the underlying issue.
Troubleshooting Benshaw RB3 Overcurrent Faults
Several conditions can cause an overcurrent fault, ranging from mechanical problems to electrical failures. For instance, a common cause is a mechanical jam or a sudden seizure of the load, which prevents the motor from rotating freely and results in a massive current spike, a feature the starter is designed to detect as noted by RB3 Open Chassis Soft Starter. Other potential causes include incorrect parameter settings (e.g., current limit set too low or ramp time too short for a high-inertia load), a shorted motor winding, or a grounded power cable between the soft starter and the motor. Therefore, a systematic approach is essential for accurate diagnosis.
Before beginning any hands-on troubleshooting, it is imperative to follow all Lockout/Tagout (LOTO) procedures to ensure the equipment is de-energized and safe. First, inspect the driven load for any mechanical obstructions. If the load is clear, you should then disconnect the motor from the starter and use an insulation resistance tester (megohmmeter) to check for shorted or grounded windings. In addition, carefully review the starter’s parameters in the LV MX3 User Manual manual, ensuring the motor Full Load Amp (FLA) setting matches the motor’s nameplate and the current limit setting provides adequate headroom for acceleration.
Proper initial setup and wiring are critical for performance. This guide illustrates the key steps for connecting your Benshaw RB3 softstarters.
Addressing a Phase Loss (F3/F4) Fault Condition
Effective Benshaw RB3 troubleshooting is crucial when encountering F3 or F4 fault codes on Benshaw motor starters. These codes indicate a phase loss condition, specifically an input phase loss for F3 and an output phase loss for F4. Consequently, this protective function prevents the motor from running on only two phases, which could lead to rapid overheating and catastrophic failure. The ability to detect phase sequence issues is a core safety feature noted by industry experts like LV Solid-State Starters Catalog.
Before proceeding with any diagnostics, it is imperative to follow strict Lockout/Tagout (LOTO) procedures to de-energize the equipment completely. First, conduct a thorough visual inspection of all power wiring to and from the soft starter for motor connections, checking for loose terminals or heat damage. Subsequently, use a calibrated multimeter to verify balanced voltage across all incoming phases (L1-L2, L2-L3, L1-L3) and repeat the process for the output terminals. An imbalance or absence of voltage on one leg is a direct cause of this fault, a common topic in technician forums like Mike Holt Forums.
Beyond wiring, the source of a phase loss can include a blown line-side fuse, a problem with the utility power supply, or even an open winding within the motor, which would specifically trigger an F4 fault. In other words, the fault is not always internal to the Benshaw RB3 softstarters themselves. This protection is vital for maintaining plant operations, a key benefit highlighted by Allied Market Research. Once the root cause is identified and corrected, a simple reset should clear the fault, as described in the LV-MX3 User Manual user manual, allowing a safe return to service.
Resolving an Overload (f1) Condition in Your Soft Starter for Motor
Effective Benshaw RB3 troubleshooting begins with correctly interpreting fault codes, and an F1 Overload fault is one of the most common protective trips. This fault indicates that the motor has drawn current exceeding its configured limit for an extended duration, prompting the soft starter to intervene to prevent thermal damage to the motor windings. According to RB3 Open Chassis Soft Starter, this overload lockout is a critical safety feature. In other words, the starter has detected a sustained condition where the motor is working too hard, which could be due to either mechanical or electrical issues within the system. Therefore, investigating the root cause is essential before simply resetting the device.
Several factors can trigger an overload condition in Benshaw motor starters. First and foremost, a sudden increase in mechanical load, such as a jammed conveyor belt or a blocked pump, is a frequent culprit. In addition, incorrect parameter settings are a primary cause; for instance, if the motor's Full Load Amps (FLA) value programmed into the starter does not precisely match the motor's nameplate data. As detailed by documentation from RB3 Soft Starter, the programmed FLA is fundamental to the starter's protective calculations. A Hoyer Motors Product News article also explains that a soft starter is designed for specific load applications, and exceeding that design can lead to such faults.
To resolve an F1 fault, always begin by implementing proper Lockout/Tagout (LOTO) procedures to ensure the equipment is de-energized and safe to inspect. Subsequently, physically examine the driven load to confirm it rotates freely and is clear of any obstructions. Following that, verify that the overload class and FLA settings in the RB3 match the connected motor's specifications, consulting the LV-MX3 User Manual user manual for guidance on parameter adjustment. Once you have corrected any mechanical or programming issues, you can safely remove the lockout, restore power, reset the fault, and monitor the motor's current during the next startup to ensure it operates within its expected range.
Setting the correct parameters, such as start time and current limit, is essential for optimal performance and motor protection when programming your Benshaw RB3 soft starter.
While fault codes provide a clear starting point, effective Benshaw RB3 troubleshooting often requires looking beyond the starter's diagnostics. Sometimes, operational issues with Benshaw motor starters don't trigger a specific fault but manifest as poor performance, such as inconsistent acceleration or motor hesitation. In these situations, technicians must analyze the entire electromechanical system, not just the soft starter for motor. Before beginning any hands-on inspection, always adhere to strict Lockout/Tagout (LOTO) procedures to ensure the equipment is de-energized and safe to work on, as detailed in NFPA 70E. Consequently, a holistic view is essential for resolving these nuanced problems.
Mechanical issues are a frequent source of problems that can mimic electrical faults. For instance, increased friction from worn motor bearings or poor mechanical alignment can demand higher starting torque than programmed, leading to prolonged ramp times or stalling without necessarily tripping an overload fault immediately. According to VFDs and Soft Starters, a primary benefit of a soft starter is minimizing mechanical shock, but pre-existing wear can still cause trouble. Therefore, it is critical to physically inspect the motor and the driven load for any signs of binding, unusual noises, or excessive vibration during operation, consulting the LV MX3 User Manual user manual for baseline parameters.
Furthermore, external power quality and environmental conditions can significantly impact the starter's behavior. Voltage imbalances between phases or significant sags from the utility line can cause the starter's Silicon Controlled Rectifiers (SCRs) to fire unevenly, resulting in rough motor operation. High ambient temperatures within an enclosure can also reduce the electronic components' efficiency long before a formal over-temperature fault occurs. As noted in LV Solid-State Starters Catalog technical documentation, operating environment is a key factor for reliability. Using a power quality analyzer to monitor the incoming line voltage during startup can reveal these otherwise invisible issues. For expert advice, many turn to resources like the forums on Mikeholt Forums: Soft Start Recommendations for community insights.
Preventive Maintenance for Optimal Benshaw RB3 Softstarter Performance
To ensure the long-term reliability of Benshaw RB3 softstarters, a consistent preventive maintenance schedule is essential. For instance, routine visual inspections can preemptively identify issues like debris accumulation or signs of overheating. Keeping the unit and its surrounding enclosure clean from dust and contaminants is a simple yet critical step. As explained by Allied Market Research, reliable operations are a key benefit of using soft starters, and proper maintenance underpins this reliability.
Beyond visual checks, periodic electrical inspections are crucial for your soft starter for motor. Over time, vibrations can cause terminal connections to loosen, leading to high resistance, overheating, and potential failure. Therefore, it is vital to periodically verify that all power and control wiring connections are tight, adhering to the torque specifications in the RB3 soft starter manual. Before performing any of these checks, always adhere to strict Lockout/Tagout (LOTO) procedures and NFPA 70E safety standards. The modular design of the power section, as detailed by RB3 Open Chassis Soft Starter, simplifies access for these maintenance tasks.
Finally, maintaining the correct operating environment is fundamental to the starter's performance and lifespan. The Silicon Controlled Rectifiers (SCRs) within the soft starter generate heat during operation, which must be effectively dissipated. Consequently, you must ensure that ventilation fans are operational and that heatsink fins are free of dust buildup, which can act as an insulator. Obstructed airflow can lead to thermal trips or even permanent damage to the power components. According to the LV-MX3 User Manual user manual, adhering to specified environmental conditions is critical for proper function. Proper upkeep reduces mechanical stress and can lower maintenance costs, as noted by ABB 2020 Q2 Document.
Conclusion: Maximizing Reliability with Your Benshaw RB3 Softstarter
To conclude, Benshaw RB3 softstarters are a cornerstone of modern motor control, offering a powerful solution for reducing the mechanical and electrical stress inherent in direct-on-line startups. By effectively managing torque and limiting inrush current, these devices significantly extend the lifespan of motors, couplings, and other connected machinery. As industry experts like VFDS and Soft Starters point out, this controlled start is crucial for protecting the entire electrical distribution network. In short, investing in a quality soft starter is an investment in the longevity of your whole system.
However, unlocking the full potential of these advanced starters goes beyond the initial installation. True reliability is achieved through meticulous setup, accurate programming, and a proactive approach to diagnostics and maintenance. Understanding the RB3 soft starter manual and effectively interpreting RB3 fault codes are non-negotiable skills for any technician or engineer responsible for these systems. For instance, the detailed documentation from LV-MX3 User Manual provides the essential parameters for optimizing performance. Following these guidelines ensures your soft starter for motor applications operates flawlessly.
Ultimately, the Benshaw RB3 series proves its value through consistent, dependable performance that minimizes downtime and reduces maintenance costs, a key advantage highlighted by publications like Allied Market Research. By combining the robust features of Benshaw motor starters with the best practices outlined for programming, troubleshooting, and upkeep, you can ensure your critical motor assets are protected. Consequently, your operations will benefit from the enhanced efficiency and maximized reliability that these devices are designed to provide, making them a wise choice for any industrial application according to distributors such as Benshaw RB3-1-S-040A-11C.
