VFD HVAC Buying Guide: Cut Energy and Boost Comfort
VFD HVAC: An Efficient Upgrade
Rising utility rates have forced building owners to hunt for fast, low‑risk efficiency measures. A vfd hvac retrofit sits at the top of that list because the technology lets motors slow down whenever the load is light. In contrast, traditional starters slam fans on at full speed and then waste energy while dampers choke airflow by brute force. Industry studies show that dropping fan speed from 100 percent to 80 percent can halve electrical consumption, yet comfort actually improves.
Engineers might also call this an HVAC variable frequency drive or variable speed drive HVAC solution. This guide explains the root causes of wasted energy, shows how variable‑speed control fixes them, and highlights the Optidrive Eco series from Invertek alongside respected peers such as ABB and Yaskawa. By the end, you will know how to select, install and maintain the drive that suits your facility.
Why Legacy Motors Waste Energy
Conventional HVAC motors operate at one speed because across‑the‑line starters can only deliver fixed grid frequency. Therefore, engineers install mechanical devices—dampers, inlet guide vanes and triple‑duty valves—to throttle flow. Unfortunately, those devices convert surplus electrical energy directly into unwanted heat and noise. Additionally, sudden starts dump up to six times rated current into the windings, which shortens motor life and spikes demand charges. Fixed‑speed operation also forces thermostats to cycle equipment, causing uncomfortable temperature swings and needless wear on belts, bearings and valves.
Environmental regulations magnify the problem. The ASHRAE 90.1 standard now requires variable‑speed control on most motors above five horsepower, and utilities often deny rebates if projects retain line starters. Consequently, facility managers who ignore speed control face compliance gaps and financial penalties. Ultimately, the root cause of waste is not building load; it is the inability of old starters to modulate speed efficiently.
How Variable Frequency Drives Fix the Problem

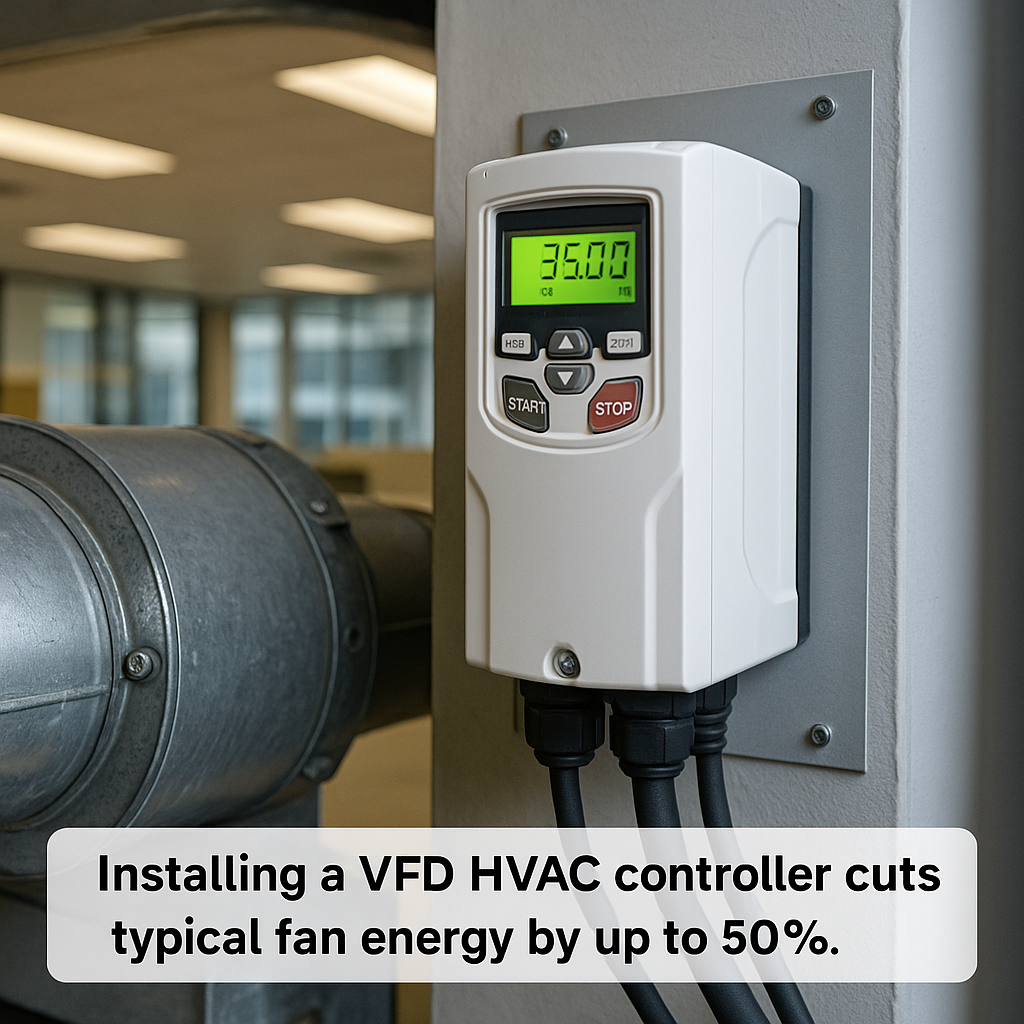

A modern vfd hvac controller varies voltage and frequency so the motor produces only the torque required at each moment. Because fan and pump horsepower follows the cube law, even modest speed reductions translate into dramatic kilowatt savings. Furthermore, built‑in PID loops listen to pressure sensors and trim speed in real time, stabilizing comfort without mechanical dampers. Drive‑based soft starts limit current to 100 percent of rated amps, protecting windings and erasing peak‑demand spikes. In addition, embedded fault logs and thermal models warn staff long before a bearing locks up, reducing emergency repairs.
Besides savings, a variable speed drive HVAC retrofit improves indoor environmental quality. Noise drops by up to 6 dB when fans slow, vibration decreases, and smoother ramps extend equipment life. Drives can also trigger pump‑sleep routines at night to prevent short‑cycling. These incremental improvements deliver LEED points and help organisations meet ESG targets while maintaining occupant comfort.
Selecting a VFD HVAC Drive: Invertek and Alternatives
Precision Electric offers several HVAC drive families, yet the Invertek Optidrive Eco often delivers the best value. It ships with BACnet MS/TP, supports induction, permanent‑magnet and synchronous‑reluctance motors, and carries IP55 or IP66 ratings for rooftop duty. For projects that demand different features, we also supply the ABB ACH580 and the Yaskawa Z1000, both respected for reliability and extensive diagnostics. All three families include fire mode, bypass options and harmonics mitigation packages, allowing engineers to meet life‑safety codes and IEEE 519 simultaneously.
Alongside drives, retrofit packages may add soft starters for redundant motors, carryover replacement inverters for obsolete gear and install input line reactors where harmonic distortion threatens transformers. Our engineers also use auto‑tune utilities to optimise motor flux. Consequently, you receive a ranked comparison that balances capital outlay and life‑cycle savings before a purchase order is ever written.
Installation and Commissioning Best Practices
After selecting hardware, follow a disciplined commissioning plan. Verify that motor nameplate amps fall within the drive’s normal‑duty rating, then program a 60‑second ramp and enable flying‑start so a spinning fan restarts smoothly. Next, route shielded cable and ground both ends to minimise electromagnetic interference. Moreover, mount drives outside high‑temperature airstreams or derate per the manufacturer’s chart. Because long motor leads can reflect voltage, add output filters when lead length exceeds 150 feet. Finally, set the carrier frequency high enough for quiet classrooms yet low enough to avoid overheating.
For hydronic loops, review our pump‑specific VFD tips to adjust ramp times and sleep thresholds so booster pumps stop when the building is unoccupied. Thorough documentation and sound parameter discipline prevent nuisance trips and help maintenance teams replicate settings after firmware updates.
Document each parameter set in your maintenance system and back up the program to an OptiStick or the vendor’s PC tool. Although these steps add an hour to commissioning, they save days of troubleshooting later and ensure uptime during critical seasons.
Conclusion and Next Steps
Switching to a vfd hvac architecture pays dividends from the first utility bill: energy costs drop, comfort stabilises and equipment lasts longer. Whether you choose the feature‑rich Optidrive Eco or another reputable brand, Precision Electric can supply, program and support the drive throughout its life cycle. Explore our in‑depth VFD knowledge base or request a quick quote today.
