Description

Estimated reading time: 14 minutes

Introduction: Mastering Flow and Efficiency with ABB ACS310 VFDs

In industrial and commercial settings, managing fluid and air movement is a critical task. The abb acs310 variable frequency drives vfds are specifically engineered to optimize these processes, focusing particularly on pump and fan applications. This VFD motor controller excels at adjusting motor speed to precisely match real-time system demand, consequently ensuring stable pressure, flow, and level control. From municipal water systems and building HVAC to agricultural irrigation, the ACS310 provides a dedicated, intelligent solution for enhancing operational control and system reliability.

A primary advantage of implementing an abb variable speed drive is the substantial improvement in Energy Efficiency. Instead of running a motor at full speed and using mechanical valves or dampers to restrict output, the drive slows the motor itself. According to the affinity laws governing centrifugal loads, power consumption is proportional to the cube of the motor speed; therefore, even a small reduction in speed yields significant energy savings, as noted by Plantservices. This directly translates to a lower Total Cost of Ownership (TCO) over the equipment's lifespan.

Abb ACS310 VFD Application-specific Features

What truly sets this frequency converter for motor control apart are its built-in, application-specific features. The ACS310 comes equipped with powerful macros for Pump and Fan Control (PFC) and sophisticated PID Control Loop functions, which simplify commissioning and often eliminate the need for an external controller. For instance, these features allow for intelligent management of multiple pumps or maintaining constant water pressure in a system with fluctuating demand. As detailed by Baypower, these integrated tools make advanced control accessible right out of the box and include functions like pipe soft-filling to reduce mechanical stress on startup.

This article serves as a comprehensive guide for the engineers and technicians tasked with installing, configuring, and maintaining these drives. We will delve into everything from initial wiring and safety protocols, such as Lockout/Tagout (LOTO), to navigating ACS310 drive parameters and diagnosing common ACS310 fault codes. Moreover, we will explore practical applications and advanced features that help maximize both performance and energy savings. By leveraging information in the official Abb catalog and real-world case studies from sources like Joliettech, you will gain the expertise needed to master this powerful tool.

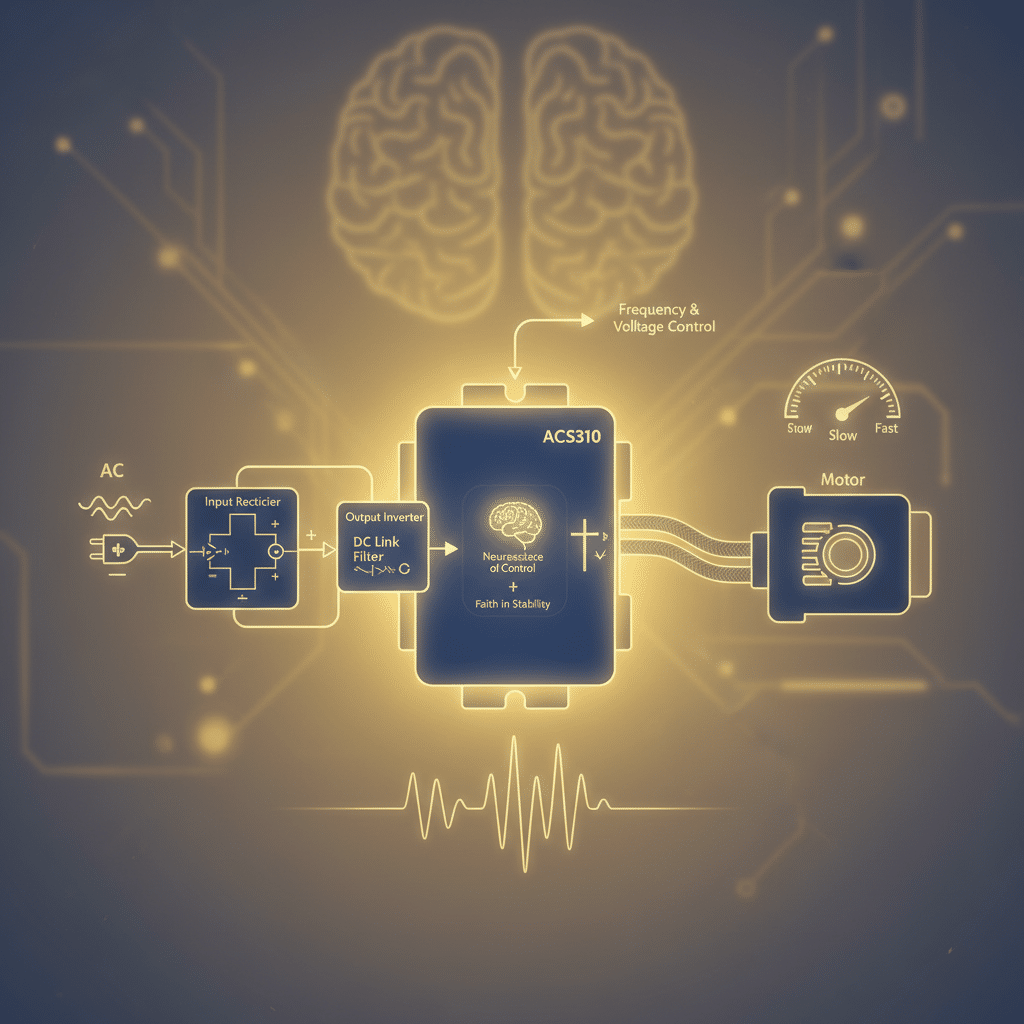

Understanding the Core Functionality of ABB ACS310 Variable Frequency Drives VFDs

The core purpose of abb ACS310 variable frequency drives vfds is to precisely control the speed of AC induction motors in variable torque applications. In essence, this VFD motor controller acts as a frequency converter for motor optimization, primarily targeting pump and fan systems where managing flow is critical. Instead of running a motor at full speed and using mechanical means like valves or dampers to restrict output, the ACS310 adjusts the motor's speed to match the exact demand of the process. According to VFD Case Studies, this method provides superior control and significant energy efficiency gains, forming the foundation of modern flow management systems.

ABB ACS310 VFD Motor Control for Efficiency

The drive accomplishes this control by converting the fixed frequency and voltage of the incoming AC power supply into a variable frequency and voltage output. By adjusting the frequency supplied to the motor, the VFD directly controls its rotational speed. For instance, lowering the frequency slows the motor down, while increasing it speeds the motor up. This capability is crucial for optimizing performance and achieving substantial energy savings. The ACS310 is specifically designed for a versatile power range, supporting motors from 0.37 kW up to 22 kW as noted by Abb, making it suitable for a wide array of small to medium-sized industrial applications. This precise electrical manipulation eliminates the physical stresses associated with mechanical throttling.

Furthermore, the ACS310 comes equipped with intelligent software features tailored for its primary applications. It includes specialized Pump and Fan Control (PFC) macros that can manage multiple pumps or fans in parallel, ensuring consistent operation and wear distribution. Additionally, an integrated PID Control Loop allows the drive to independently maintain a setpoint for a process variable like pressure, flow, or temperature. As detailed by ABB ACS General Purpose Drive Catalog, the drive uses sensor feedback to automatically adjust motor speed, consequently simplifying the overall control system architecture and reducing the need for external controllers. This built-in intelligence results in a lower Total Cost of Ownership (TCO) through improved Energy Efficiency and reduced mechanical maintenance as highlighted by ABB ACS310 VFD Drives.

Initial Setup and Safety Protocols for Your ACS310 Drive

Properly commissioning your abb acs310 variable frequency drives vfds is the first critical step toward ensuring long-term reliability and, most importantly, personnel safety. Before beginning any installation procedures, it is essential to thoroughly review the official Abb installation and safety manuals. These documents provide the definitive guidelines for wiring, mounting, and configuring the VFD motor controller. Consequently, overlooking these initial steps can lead to equipment damage, operational faults, or severe safety hazards that could easily be avoided with careful preparation and adherence to manufacturer specifications. Ultimately, a successful startup begins with a commitment to following established protocols from the very start.

Before applying power, a series of pre-startup checks are mandatory for any abb variable speed drive. First, verify that the physical installation provides adequate ventilation and clearance around the unit to prevent overheating, respecting the environmental limits outlined by Abb. Next, meticulously inspect all power and motor wiring for correct phasing, secure terminations, and proper grounding in accordance with NFPA 70E and local electrical codes. For instance, confirming that the incoming voltage matches the drive's nameplate rating is a simple yet crucial verification. This diligence ensures that the drive operates under the conditions for which it was designed.

Safety must remain the highest priority during both commissioning and subsequent maintenance activities. Crucially, all work on the drive or connected motor must be preceded by strict Lockout/Tagout (LOTO) procedures to ensure the equipment is completely de-energized. It is vital to remember that the drive's internal capacitors can store a hazardous electrical charge for several minutes even after input power is disconnected. Therefore, always use a properly rated voltmeter to verify zero energy state before making contact. According to documentation from both ACS General Purpose Drive Catalog and suppliers like ABB ACS310 VFD Drives, following these safety protocols is non-negotiable for protecting technicians and equipment.

Configuring Key ACS310 Drive Parameters for Pump and Fan Applications

Properly configuring ACS310 drive parameters is fundamental to optimizing performance and achieving significant Energy Efficiency in pump and fan systems. To simplify this process, ABB ACS310 variable frequency drives VFDs include built-in application macros, such as the Pump and Fan Control (PFC) macro, which pre-populates many essential settings. Activating this macro provides a robust baseline configuration, consequently saving considerable commissioning time. From there, you only need to fine-tune specific parameters related to the motor and the unique demands of your application, which are detailed in the Abb technical documentation. In essence, these macros serve as an excellent starting point for any technician.

For applications requiring precise regulation of flow, pressure, or temperature, configuring the internal PID Control Loop is crucial. This involves setting parameters to define the process setpoint and connecting a sensor, such as a pressure transducer, to provide real-time feedback to the drive. According to Abb, the VFD continuously monitors this feedback and automatically adjusts motor speed to maintain the setpoint, thereby ensuring stable system operation. Properly tuning the proportional, integral, and derivative gains will optimize the system’s responsiveness and prevent hunting or instability in the control loop.

In addition to PID settings, adjusting acceleration and deceleration times is vital for protecting mechanical equipment. For instance, setting a gradual acceleration ramp for a pumping system helps prevent water hammer, a destructive pressure surge that can damage pipes and valves. This soft-start capability significantly reduces mechanical stress on the entire system during startup. The Abb drive also features a pipe fill function specifically for this purpose. Similarly, a controlled deceleration minimizes the risk of system shock during shutdown, extending the lifespan of both the motor and connected components and ultimately lowering the Total Cost of Ownership (TCO).

Leveraging PID Control with ABB ACS310 VFDs for System Optimization

Beyond simple speed adjustments, the built-in PID Control Loop functionality is a key feature for optimizing performance in abb ACS310 variable frequency drives vfds. This internal controller allows the VFD to automatically regulate motor speed to maintain a specific process variable, such as pressure, flow, or temperature, at a desired setpoint. Instead of running a pump or fan at a fixed, often excessive speed, the PID controller continuously calculates the error between the process feedback (from a sensor) and the setpoint, adjusting the motor’s output accordingly. Consequently, this leads to a highly responsive and self-regulating system that enhances both precision and operational stability without requiring an external controller for many applications.

Abb ACS310 VFD: PID Control for Pump Systems

For instance, in a municipal water booster system, a pressure transducer provides real-time feedback to the ACS310 drive. If water demand increases and pressure drops below the setpoint, the PID controller instantly increases the pump motor's speed to compensate. Conversely, as demand falls, the drive slows the motor down, preventing over-pressurization and significantly reducing energy consumption. This capability is especially valuable in applications requiring consistent output, such as building water supply systems and HVAC chillers, as noted by Abb, ensuring the system only works as hard as necessary. Utilizing the drive’s built-in PID functions simplifies system design and lowers the Total Cost of Ownership (TCO).

Properly tuning the ACS310’s PID parameters—proportional gain, integral time, and derivative time—is crucial for achieving optimal performance. An effective PID loop minimizes overshoot, eliminates instability, and responds swiftly to system changes, thereby maximizing Energy Efficiency. In fact, replacing older, inefficient methods like throttling valves with a VFD-based control system can yield dramatic energy savings, according to Pump Energy Savings with VFDs. Furthermore, this precise control reduces mechanical stress on pipes and valves, extending the lifetime of the entire system. According to ABB ACS General Purpose Drive Catalog, this level of precision is essential for maintaining stability in difficult processes, making the integrated PID controller a powerful tool for any technician.

Advanced Features: Pump and Fan Control (PFC) and Sleep Functions

Beyond standard PID loops, the abb acs310 variable frequency drives vfds offer specialized macros for advanced system management, most notably Pump and Fan Control (PFC). This built-in intelligence allows the drive to manage multiple parallel pumps or fans, optimizing their operation based on real-time system demand. For instance, instead of running all pumps at partial load, the PFC can run the optimal number of pumps at their most efficient speed. According to ABB ACS General Purpose Drive Catalog, this functionality is crucial for maintaining consistent pressure in booster pump systems and managing airflow in complex ventilation setups.

ABB ACS310 VFD: Optimize Pump Lifespan

The PFC feature significantly enhances system longevity and simplifies maintenance. The ACS310 drive can automatically alternate which pump or fan is the primary unit, thereby ensuring wear is distributed evenly across all assets. This auto-changeover function can be programmed based on runtime hours, which prevents one motor from accumulating significantly more use than others. Furthermore, this logic allows a VFD motor controller to adapt if one pump fails, automatically engaging a standby unit to maintain system operation without interruption. As highlighted by ABB ACS310 Drive, these features are also useful for specialized tasks like pipe cleaning for preventive maintenance, showcasing the drive's versatility.

Complementing the PFC is the intelligent sleep function, a powerful tool for maximizing Energy Efficiency. When system demand, such as pressure or flow, falls below a user-defined minimum threshold for a set period, the drive enters a "sleep" mode, completely stopping the motor. Consequently, this eliminates energy consumption during periods of no demand. The drive continuously monitors the system, and as soon as the pressure drops below the wake-up level, it automatically restarts the motor to meet the demand. This feature, as detailed by ABB ACS310 VFDs, is particularly effective in applications with intermittent use, such as building water supply systems, leading to a lower Total Cost of Ownership (TCO).

A Practical Guide to ABB Drive Troubleshooting for Common Fault Codes

Effective abb drive troubleshooting begins with understanding the information provided by the drive itself. When an issue occurs with ABB ACS310 variable frequency drives VFDs, the unit will display specific ACS310 fault codes, which are invaluable for diagnostics. Before undertaking any physical inspection or electrical testing, it is absolutely critical to follow proper Lockout/Tagout (LOTO) procedures to de-energize the equipment, thereby complying with NFPA 70E safety standards. Consequently, consulting the ACS310 Technical Catalog technical catalog or the official ABB ACS310 VFD manual is the essential first step for interpreting these codes accurately and safely. This approach ensures a structured and secure method for resolving operational faults and minimizing system downtime.

One of the most frequent issues is the overcurrent fault (F0001). This code indicates that the VFD motor controller has detected an output current exceeding its trip limit. The root cause can often be mechanical, such as a seized pump bearing or a blockage causing the motor to work too hard. In other words, the problem might not be electrical. Alternatively, electrical issues like a short circuit in the motor windings or damaged power cabling can also trigger this fault. A practical first step involves increasing the acceleration time (Parameter 2202) to see if the fault is related to high inrush current on startup. If the problem persists, a thorough inspection of the motor and its wiring is necessary.

Troubleshooting ABB ACS310 Voltage Faults

Similarly, voltage-related faults require careful diagnosis. An overvoltage fault (F0002) typically occurs during deceleration when the motor acts as a generator, sending excess voltage back to the VFD. You can often resolve this by extending the deceleration ramp time (Parameter 2203) or by installing an appropriately sized external braking resistor. On the other hand, an undervoltage fault (F0003) points to a problem with the incoming power supply. While the drive has features for protection against unstable supply networks, as noted by ABB ACS General Purpose Drive Catalog, you should verify that the mains voltage is stable and within the drive’s specified range. Furthermore, checking for loose input power connections can quickly solve this issue.

Another common alert is the motor thermal overload fault (F0009). This fault is triggered by the frequency converter for motor protection when its internal calculations estimate the motor has overheated. This protection is based on the motor data entered in the drive parameters, specifically in Group 99. For instance, incorrect motor nominal current or speed values can lead to nuisance trips. Therefore, always verify the motor nameplate data matches the settings in the ACS310 drive parameters, referencing guides from sources like ABB ACS310 VFD Drives. Additionally, ensure the motor has adequate ventilation and that its cooling fan is operational and free of debris, as highlighted in documentation from ABB ACS310 AC Drives.

Preventive Maintenance for Longevity of Your VFD Motor Controller

To ensure the long-term reliability of abb acs310 variable frequency drives vfds, a consistent preventive maintenance schedule is essential. Proactive upkeep not only extends the operational life of the VFD motor controller but also significantly lowers the Total Cost of Ownership (TCO) by preventing catastrophic failures and unplanned downtime. Consequently, establishing a routine can directly lead to reduced maintenance expenses over the unit's lifespan, as noted in documentation from ABB ACS310 VFD Drives. These simple checks are a critical investment in system stability.

Regular physical inspections form the core of any effective maintenance plan. Before performing any work, always adhere to strict Lockout/Tagout (LOTO) procedures compliant with NFPA 70E to ensure the drive is de-energized. For instance, visually inspect and gently clean the heatsink and fan to ensure unobstructed airflow, as the cooling fan is a primary wear item according to ABB ACS310 Drives. In addition, you should verify that all terminal connections are secure and check for any signs of overheating, a key part of abb drive troubleshooting. The ACS310 even includes features like automated pipe cleaning to aid in preventive maintenance for the entire system, as highlighted by ABB ACS310 Drive.

The surrounding environment profoundly impacts the longevity of an abb variable speed drive. Therefore, it is crucial to ensure the drive operates within its specified temperature and humidity ranges, avoiding condensation and direct exposure to moisture. Although the ACS310 is robustly designed with coated control boards for protection, as mentioned by ABB ACS General Purpose Drive Catalog, keeping the enclosure free from excessive dust or corrosive agents is vital. Periodically checking enclosure seals and filters will prevent contaminant buildup and maintain optimal internal conditions for the electronics.

Conclusion: From Configuration to Conservation

Mastering the configuration and application of abb acs310 variable frequency drives vfds marks a significant step toward optimizing pump and fan systems. Throughout this guide, we have journeyed from foundational setup and critical safety protocols to the nuanced adjustments of key parameters and the implementation of sophisticated PID control loops. In essence, this VFD is more than just a frequency converter for a motor; it is a dedicated tool designed to enhance system responsiveness and efficiency. By understanding its features, from basic operation to advanced functions like Pump and Fan Control (PFC), you transform a standard component into a cornerstone of intelligent system management, as detailed by ABB ACS310 Drives.

Ultimately, the true value of properly implementing an ABB variable speed drive extends far beyond initial setup, profoundly impacting the Total Cost of Ownership (TCO). The principles of energy efficiency are built into its core design, where even small reductions in motor speed yield substantial power savings. This relationship, where power usage is proportional to the cube of the speed, is a critical concept confirmed by industry analysis from sources like Energy Efficiency: Pump Energy Savings. Consequently, this leads not only to lower utility bills but also to reduced mechanical stress on pumps, pipes, and valves, which in turn significantly ABB ACS310 VFD Drives confirms reduces maintenance costs and prolongs equipment life.

In conclusion, the ABB ACS310 VFD empowers engineers and technicians to achieve a dual objective: precise operational control and meaningful energy conservation. The knowledge gained from understanding its parameters, troubleshooting fault codes, and performing regular maintenance ensures your systems operate at peak performance with maximum reliability. By applying these best practices, you are not just managing a VFD motor controller; you are engineering a more resilient, efficient, and cost-effective future for your facility, moving confidently from initial configuration to long-term conservation.
