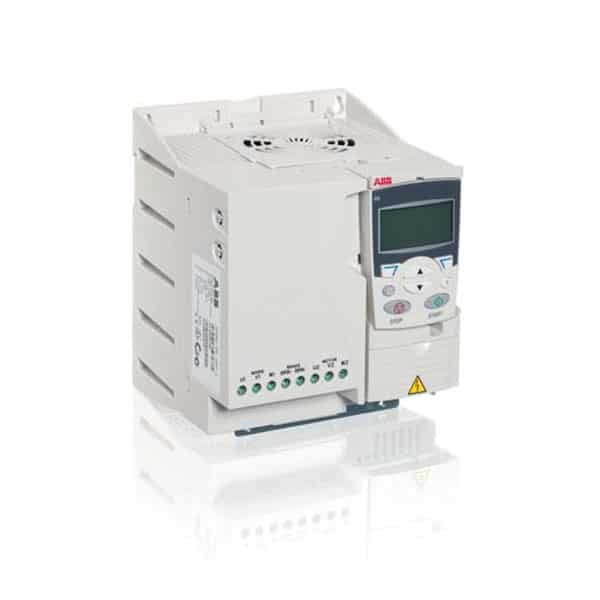

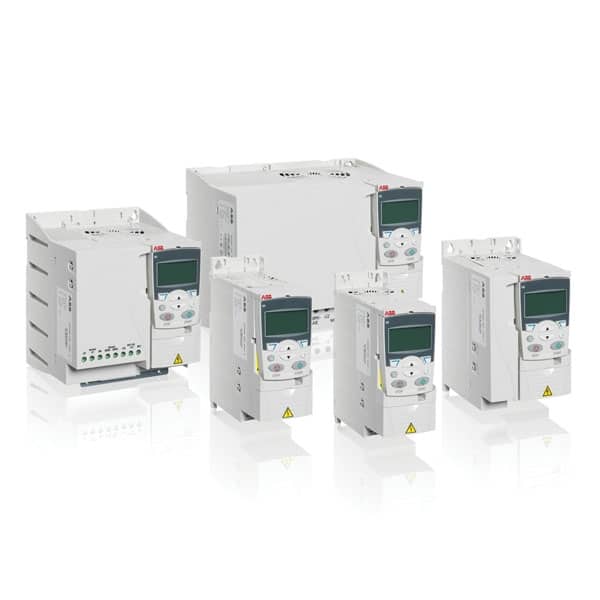

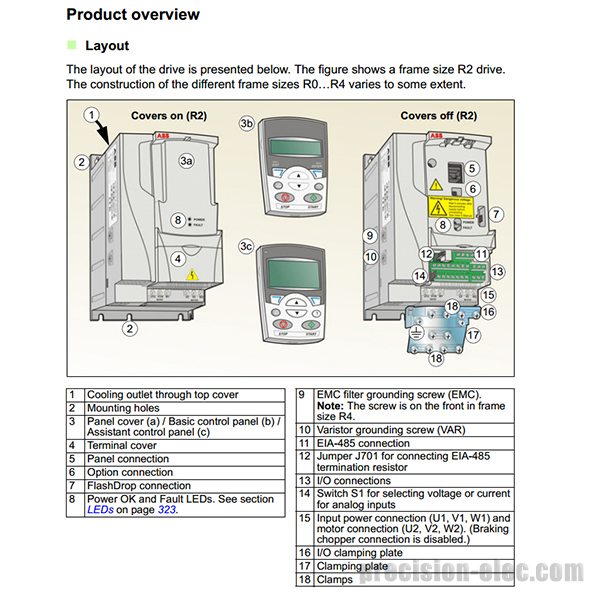

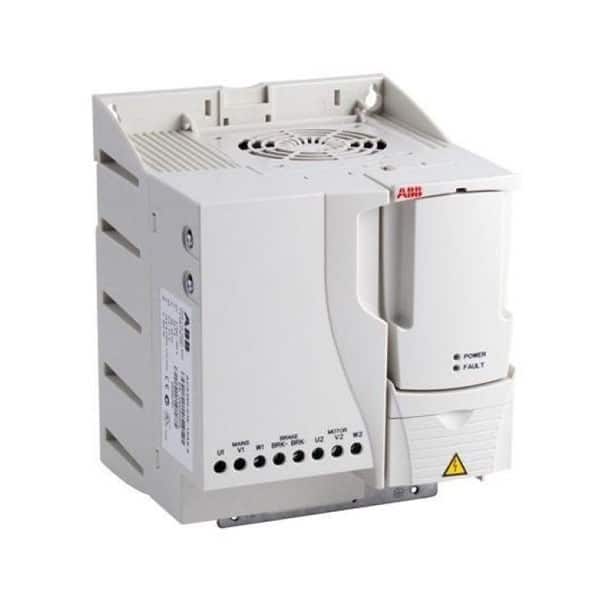

Description
The ACS310 is a general purpose drive built for variable torque applications. System integrators will find the ACS 310 useful for booster pumps and centrifugal fans. It has a built-in PID controller, pump and fan control that will optimize the drive’s output by the feedback it received from external data like flow and pressure.
Maintenance personnel will also benefit from the preprogrammed features in the ACS310, such as the multiple pump control, pipe-clean and fill control. These features can prove helpful when scheduling for preventive maintenance.
Energy efficiency is also one of the highlights of the ACS310 drive. Reduced CO2 emission, or and the energy saved in kilowatt-hour can be monitored from the built-in energy-saving calculator. For finance executives, these savings can also be expressed in the local currencies. It certainly assist in justifying the return of investment in installing the ACS310.
The ACS310 drive goes beyond reporting the amount of energy saved. The drive is built with intelligent energy optimizer that reduces the power used while operating at partial load. The drive’s algorithm is also smart enough to reduce the nose and energy losses of the internal fan.
ABB has made the ACS310 easy to install and commission, with the aid of an intuitive display panel and pre-programmed macros. These features helped system integrators to configure the parameters easily and get the drive operating as soon as possible. The Flash Drop tool can also be used to simplify parameter settings.
A summary of the ACS310 drive:
- Pump and fan features such as pump and fan control (PFC and SPFC)
- Pipe cleaning and fill functions
- Energy efficiency calculators
- Energy optimizer
- Load analyzer for optimized dimensioning of the drive, motor and process
- Embedded Modbus EIA-485 fieldbus interface
- FlashDrop tool for fast parameter setting
- Unified height and depth
- Full output current at 50 °C ambient
- Short parameter menu view
Technical documentation for ABB Drives is available in our
Technical Library.
ACS310-03U-25A4-4 ACS310 Features
ACS310-03U-25A4-4 ACS310 Communication
The ACS310 is built with an embedded Modbus EIA-485 interface that supports half-duplex standard Modbus protocol. It can be configured to communicate in EIA-485 which has the maximum specified range of 4,000 ft, or the RS232, with a short range of 3 meters. In the EIA-485 mode, the ACS310 is configured as a slave and can be part of a network of other EIA-485 devices.
ACS310-03U-25A4-4 ACS310 Startup Sequence
There are 3 different way to startup the ACS310 after it is being installed.
- Manual startup without a control panel
- Basic startup with a control panel
- Guided startup with an Assistant control panel.
The manual startup requires the technician to follow closely to the instructions in the guide, while the Assistant guided startup provides the necessary steps through the control panel.
ACS310-03U-25A4-4 ACS310 Preventive Maintenance
While the ACS310 is robust and requires little maintenance when operated in its recommended environment, ABB suggests that the following maintenance is done to prolong its lifespan.
- Reforming of capacitors (Every year when stored)
- Check of dustiness, corrosion and temperature ( Every year )
- Replacement of the cooling fan ( Every three years)
- Check and tightening of the power terminals ( Every six years)
- Replacement of the battery in the Assistant control panel ( Every ten years)
ACS310-03U-25A4-4 ACS310 Other Features
1. ACS310-03U-25A4-4 ACS310 Voltage And Power Range
- 1-phase, 200 to 240 V ± 10%: 0.5 to 5 hp (0.37 to 4 kW)
- 3-phase, 200 to 240 V ± 10%: 0.5 to 15 hp (0.37 to 11 kW)
- 3-phase, 380 to 480 V ± 10%: 0.5 to 30 hp (0.37 to 22 kW)
2. ACS310-03U-25A4-4 ACS310 Applications
- Booster pumps
- Irrigation systems
- Level control
- Centrifugal fans
3. ACS310-03U-25A4-4 ACS310 Options
- Basic and Assistant control panels

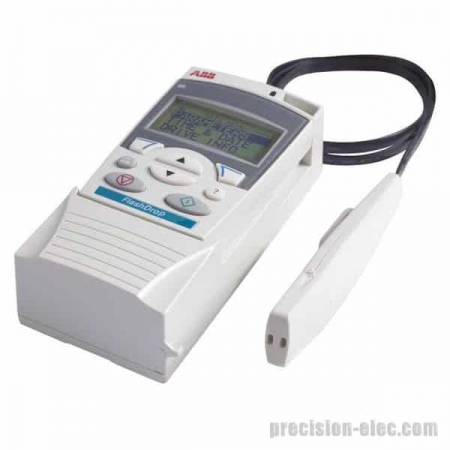

- FlashDrop tool for fast cold configuration

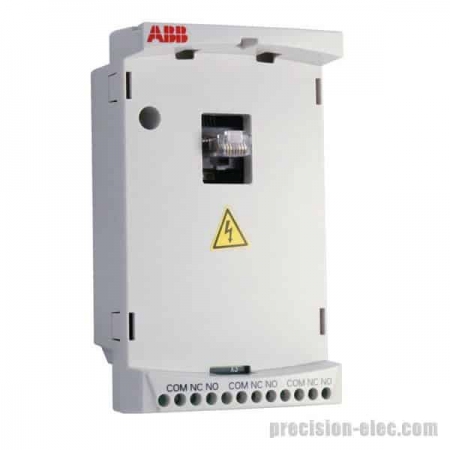

- MREL-01 Relay output extension module

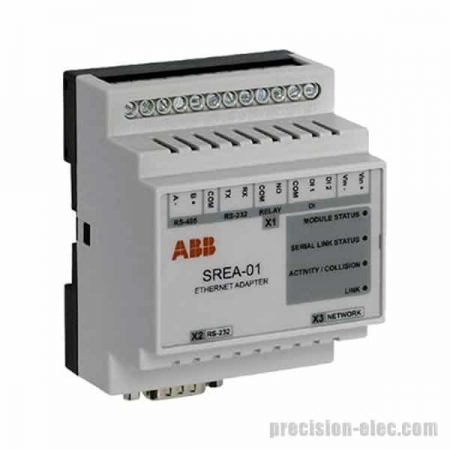

- SREA-01 Ethernet adapter
- DriveWindow Light PC tool

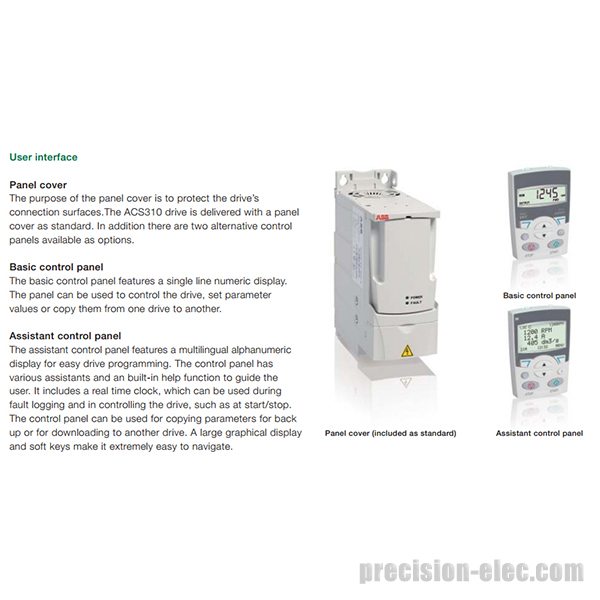

4. ACS310-03U-25A4-4ACS310 Control Panels
- Basic control panel – This panel provides basic tools for manual entry of parameter values.
- numeric control panel with an LCD display
- copy function – parameters can be copied to the control panel memory for later transfer to other drives or for backup of a particular system

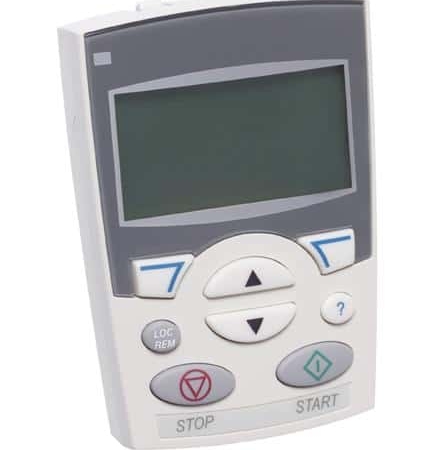

- Assistant control panel - This panel includes pre-programmed assistants to automate the most common parameter setups. The panel provides language support. It is available with different language sets.
- alphanumeric control panel with an LCD display
- language selection for the display
- Start-up assistant to ease drive commissioning
- copy function – parameters can be copied to the control panel memory for later transfer to other drives or for backup of a particular system.
- context sensitive help
- real time clock.
5. ACS310-03U-25A4-4 ACS310 Application Macros
The ACS310 is built with preprogrammed parameter settings that made setting up the drive easier. There are 8 standard macros and 2 user macros supported by the drive as follow:
- ABB standard
- 3-wire
- Alternate
- Motor potentiometer
- Hand/Auto
- PID control
- PFC control
- SPFC control
- User
- AC500 MODBUS
6. ACS310-03U-25A4-4 ACS310 Efficiency
Approximately 95 to 98% at nominal power level, depending on the drive size and options
7. ACS310-03U-25A4-4 ACS310 Protection
- IP20 (cabinet installation) / UL open: Standard enclosure. The drive must be installed in a cabinet to fulfil the requirements for shielding from contact.

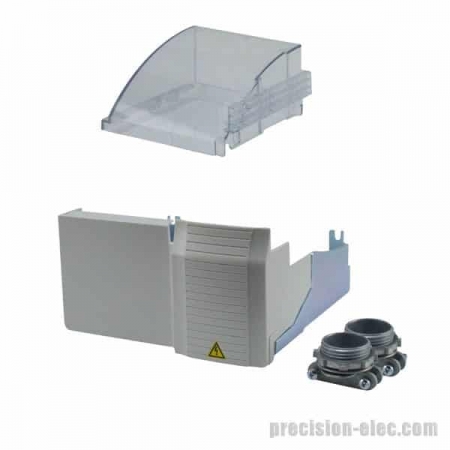

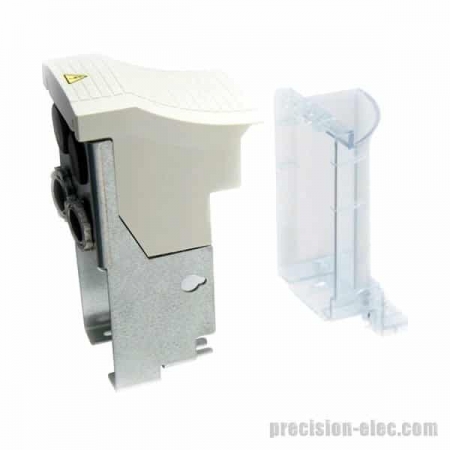

- IP20 / NEMA 1: Achieved with an option kit including a hood and a connection box.
8. ACS310-03U-25A4-4 ACS310 Ambient Conditions
Operation
- Installation site altitude : 0 to 2000 m (6600 ft) above sea level
- Air temperature : -10 to +50 °C (14 to 122 °F). No frost allowed
- Relative Humidity : 0 to 95% (No condensation allowed. Maximum allowed relative humidity is 60% in the presence of corrosive gases.)
Storage
- Air temperature : -40 to +70 °C
- Relative Humidity : Max. 95
Transportation
- Air temperature : -40 to +70 °C
- Relative Humidity : Max. 95%
9. ACS310-03U-25A4-4 ACS310 Applicable Standards
- IEC/EN 61800-5-1: 2003
- IEC/EN 60204-1: 2006
- IEC/EN 61800-3: 2004
- UL 508C
ACS310-03U-25A4-4 - Modes Of Operation:
- V / Hz (Constant or Variable)
- Variable Torque Control
ACS310-03U-25A4-4 - Performance Features:
- Pump and fan features such as pump and fan control (PFC and SPFC)
- Pipe cleaning and fill functions
- Energy efficiency calculators
- Energy optimizer
- Load analyzer for optimized dimensioning of the drive, motor and process
- Embedded Modbus EIA-485 fieldbus interface
- FlashDrop tool for fast parameter setting
- Unified height and depth
- Full output current at 50 °C ambient
- Short parameter menu view
ACS310-03U-25A4-4 - Drive Specifications:
- 1 Analog Input (0 - 10 VDC)
- 1 Analog Input (0 - 10 VDC, 2 - 10 VDC, 0 - 20 mA, 4 - 20 mA)
- 1 Analog Output (0 - 20 mA)
- 5 Digital Inputs (12 - 24 VDC with internal or external supply)
- 1 Digital / Frequency Output (PNP)
- 1 Relay Output (12 to 250 VAC or max 30 VDC)
- 24 V DC Auxiliary voltage with 200 mA max load
- 0.1 to 1800 second accel time
- 0.1 to 1800 second decel time
- 0 - 500 Hz operating frequency
- 4 - 16 kHz switching frequency
- Integrated Modbus RTU (RS485)
ACS310-03U-25A4-4 - Popular Applications Include:
- Booster pumps
- Irrigation systems
- Level control
- Centrifugal fans
- ... And many others!
ACS310-03U-25A4-4 - Global Standards:
- UL (North America)
- cUL (Canada)
- CE Low Voltage Directive (EN61800-5-1) (Europe)
- GOST (Russia / Ukraine)
- C-Tick (Australia / New Zealand)
- Low voltage Directive 2006/95/EC with supplements
- Machinery Directive 2006/42/EC
- EMC Directive 2004/108/EC with supplements
- RoHS compliant
ACS310-03U-25A4-4 - Environment:
- Ambient Temperature: -10 Degrees Celsius to 50 Degrees Celsius
- Relative Humidity: 10% to 95% Non-Condensing
