Overview

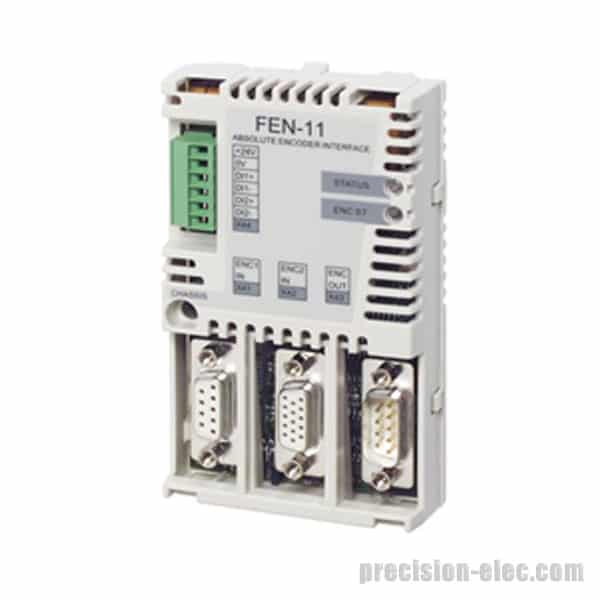

Absolute encoder interface (with PTC/KTY support) – has one absolute encoder input, one TTL encoder input, and one TTL encoder emulator output. The absolute encoder input supports a Sin/Cos incremental encoder, Endat 2.1, Endat 2.2, hiperface, or SSI with Sin/Cos signals at 5.5 or 8 Vdc. The TTL encoder input can operate at 5.5 or 24 Vdc. Both the encoder input and encoder emulator output are differential with a maximum frequency of 500 kHz.
