Overview

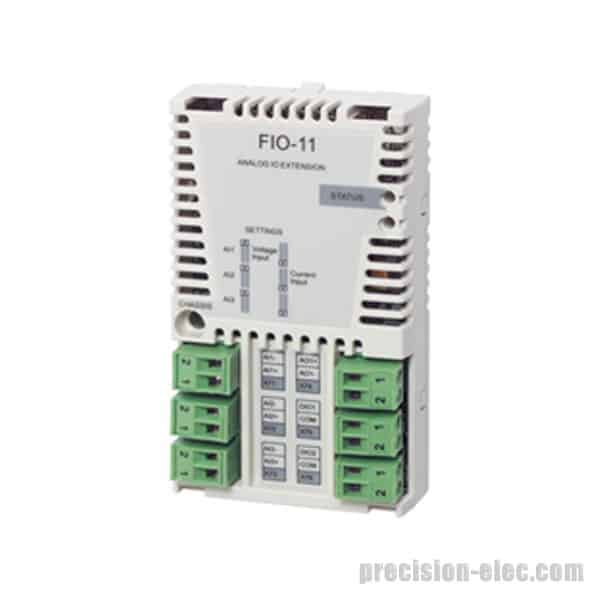

Analog I/O extension – has three bi-polar current (-20 to +20 mA) or bi-polar voltage (-10 to +10 V) inputs and one uni-polarcurrent(0[4]to20mA)output.Italsohastwo24Vdcdigitalinput/output’s(canbeconfiguredeitherway, 50mA source, 50mA sink). Analog inputs are 16 bit resolution; outputs are 12 bit. Analog and digital I/O are galvanically isolated as a group, from each other and the power supply.
