Description
Panel mounting platform for CDP312R is NEMA 12 rated, includes 3 meter cable, and CDP312R control panel. Maximum door panel thickness 14ga (2.5mm)
NEW, FACTORY SEALED!

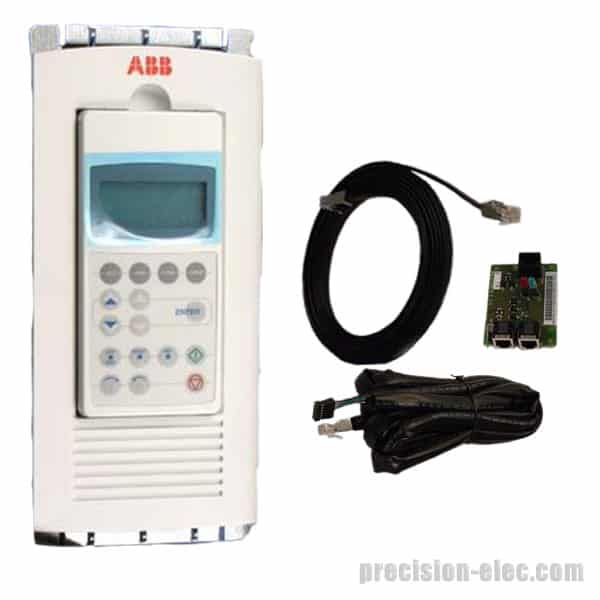

RPMP-13 – ABB Cabinet Panel Mounting with Control Panel For ACS800 and DCS800-S0
$
3637
66
OBSOLETE PRODUCT. CONTACT US FOR REPAIR OR ALTERNATIVES.
Need Member, Reseller, or OEM Pricing?
Need a quote for multiple items? Add each item to your cart, then request a quote from the cart page.
