VFD Overcurrent Fault & Motor Overload – Causes & Fixes

Estimated reading time: 19 minutes

Variable Frequency Drives (VFDs) are essential for controlling motor speed and protecting equipment in industrial applications. However, VFD overcurrent faults and motor overload trips are common issues that can shut down your system if not addressed.

A VFD will trigger an overcurrent fault when the motor’s current spikes above safe limits. Additionally, a motor overload fault if the motor draws too high a current for an extended time. In either case, the drive is essentially saying “too much current!”. As a result, it will shut off to protect itself and the motor, halting your operations.

In this article, we’ll explain what causes these overcurrent and overload trips and how to diagnose the root problems. We will also cover how to fix them to keep your motor running smoothly. We’ll break down typical scenarios like mechanical jams, rapid acceleration settings, configuration mistakes, and electrical faults.

You’ll also learn practical steps to prevent these faults and see product recommendations for VFDs that handle surge currents better. Our goal is to help you minimize downtime from overcurrent faults – all in clear, easy-to-understand terms.

Common Causes of VFD Overcurrent Faults & Motor Overload

What exactly triggers an overcurrent or overload fault? In simple terms, it happens whenever the motor is asked to deliver more torque than the system can handle. This increased demand causes an excessive current draw. There are a few primary categories of causes, often interrelated. Let’s look at each in turn.

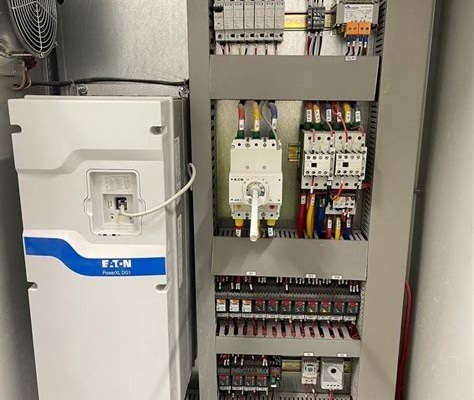

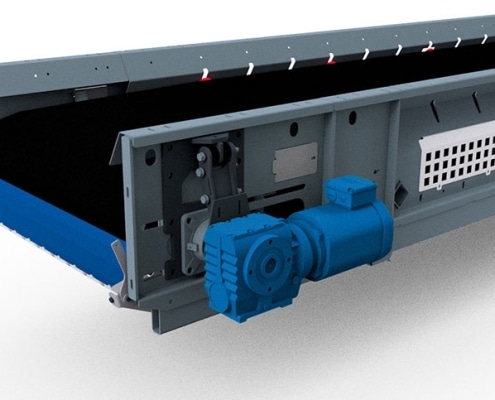

Mechanical Overload or Jam

One of the most common causes of instantaneous VFD overcurrent faults is a sudden mechanical problem. The motor can no longer turn freely if the driven machine becomes jammed or stuck. For example, a conveyor that has seized or a pump with a clogged impeller.

The VFD senses the motor is trying to draw drastically more current to overcome the blockage and trips almost immediately. In essence, the motor is working against an immovable load, leading to a current spike. Overcurrent often results from load imbalances or motor jams. This is where the motor draws far more power than normal to try and keep things moving.

Even without a sudden jam, simply overloading the motor beyond its rated capacity will trigger a fault. For instance, if a motor is driving more weight or force than it’s designed for (say, an oversized batch in a mixer or a conveyor loaded with extra material), the current can climb steadily and eventually trip the drive on a motor overload fault. This is essentially the VFD’s built-in thermal protection for the motor.

It’s preventing the motor from overheating due to prolonged excessive current. Signs of this kind of overload can include the motor running hot, the drive showing an “Overload” warning before tripping. Another symptom may be a reduced speed/torque output as the motor struggles under the heavy load.

How To Avoid Mechanical VFD Overload Fault Issues

Ensure the mechanical system moves freely and isn’t binding. Regularly inspect for jammed components, debris in machinery, or anything that could seize up the load. If your application often runs near the torque limit (e.g. heavy conveyors or crushers), consider using a larger motor/VFD or reducing the load per cycle.

The drive’s fault is telling you that the motor is consistently working too hard. Long term, running at or beyond capacity will not only trip faults but can also damage the motor. This damage is caused by overheating the windings and wearing out drive components.

Rapid Acceleration or Deceleration Settings

VFDs allow you to control how quickly a motor speeds up or slows down. If these settings are too aggressive, they can cause overcurrent trips. A very short acceleration time means the drive is trying to ramp the motor up to speed almost instantly.

This requires a huge surge of current – often more than the drive’s limit. As a result, the VFD will trip to protect itself. Similarly, slamming a motor to a stop (very short deceleration time) can force the motor into regenerative braking that sometimes manifests as high current (though it more often causes an overvoltage fault on the DC bus).

Key Indicator: When The Trip Occurs

The key point is that an abrupt change in speed demands a lot of power in a short time. If you notice the VFD trips during startup or acceleration, it’s a strong indicator that the ramp rate is set too fast for the load’s inertia. For example, starting a heavy fan or flywheel from 0 to full speed in 1 second flat will almost certainly spike the current beyond what the drive can deliver.

This would trigger a VFD overcurrent fault. In practice, most drives default to gentler accel/decel times (several seconds) for this reason. An overcurrent fault is likely to occur when the acceleration rate is set too fast. In such cases, the simple fix is to lengthen the ramp time. This allows the motor to come up to speed more gradually, keeping the current within safe bounds.

Deceleration Related Trips

Deceleration-related trips are a bit different. If you see faults when stopping, it’s usually an overvoltage (from regenerative energy) rather than an overcurrent. The cure is still to extend the decel time or add a braking resistor so the drive can bleed off energy safely.

While decel faults aren’t typically labeled “overcurrent,” it’s worth mentioning because many overcurrent scenarios on accel have a mirror image on decel (overvoltage).

The bottom line: give your drive and motor enough time to change speed. It reduces stress on the system and prevents those nuisance trips.

Drive Configuration or Sizing Errors

Sometimes the issue isn’t with the load or basic settings. It can also be how the VFD is configured or even which VFD is being used. One common cause of VFD overcurrent faults is an undersized VFD or motor for the application.

If the drive is right at its current limit during normal operation, any slight demand above that will trigger a fault.

For example, using a 5 HP drive on a 5 HP motor driving a high-friction load might leave no headroom. The motor could draw 105% of rated current on peaks, and a standard drive will trip if it exceeds 100% for too long.

In such cases, a drive with a higher current rating (or one rated for heavy-duty use) is needed to prevent constant tripping.

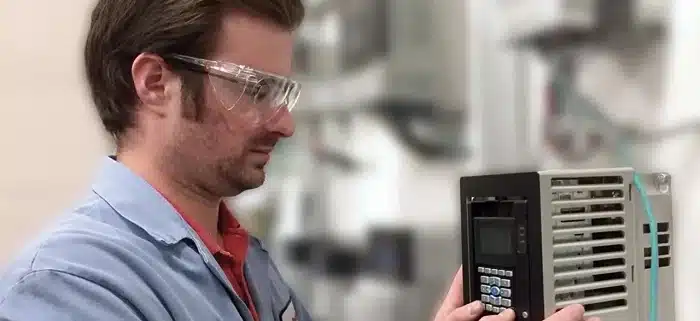

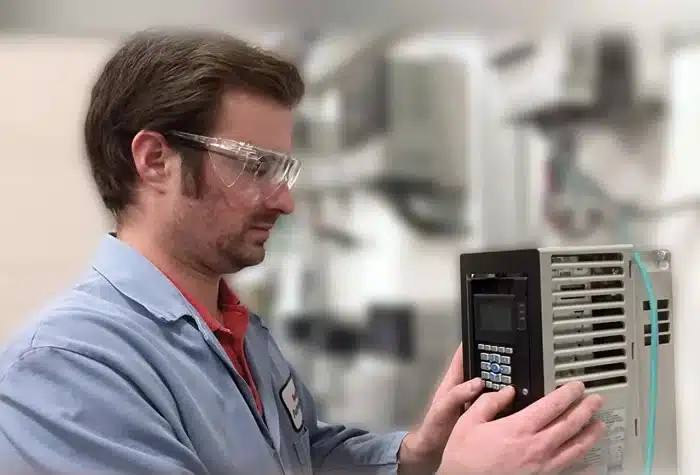

Invalid Parameter Settings

Incorrect parameter settings can also lead to overcurrent or overload alarms. Every VFD requires programming the motor’s details (voltage, rated current, frequency, etc.).

If the motor data isn’t entered correctly, the drive might miscalculate the torque and current. Often resulting in either nuisance trips or insufficient protection.

For instance, if the motor’s full-load amp rating is set too low in the drive, the VFD will think the motor is “overloaded” when it’s actually within normal range – tripping unnecessarily.

Conversely, if it’s set too high or disabled, the drive may allow the motor to overheat without tripping when it should. Double-checking the motor nameplate parameters in the VFD programming is a key step when troubleshooting VFD overcurrent faults.

Current Limit or Stall Prevention Settings

Another configuration aspect is the current limit or stall prevention settings present on many drives. Most modern VFDs have a feature to limit output current to a certain threshold (often a percentage of drive rating). When the motor tries to exceed that, the drive will either reduce the output frequency (slowing the motor) or fault out, depending on settings. If this is set improperly, it can either cause trips too early or allow excessive current.

For example, a drive might have an adjustable “overcurrent trip level” – if someone tightened that threshold thinking it would “protect” the system more, they may have unintentionally made the drive ultra-sensitive.

On the flip side, loosening it too far could risk equipment damage. The key is ensuring these protective features are tuned appropriately for your application. Usually, the default is fine, but it’s worth reviewing if you suspect a configuration issue.

Duty Ratings

Lastly, consider whether the drive’s duty rating matches your needs. Many VFDs have two ratings: normal duty (for light overloads) and heavy duty (for high overloads). A drive in heavy-duty mode might handle 150% of its rated current for 60 seconds.

Alternatively, in normal duty it might only handle 110% for the same time. If you’re consistently hitting VFD overcurrent faults on a normal-duty drive, switching to a heavy-duty model (or oversizing the drive) can provide the extra capacity needed to ride through short surges without tripping.

Electrical Issues – Shorts, Supply Problems, & Connections

Not all overcurrent faults stem from mechanical or setting issues; some are electrical in nature. A prime suspect in any sudden overcurrent trip is a short circuit somewhere on the motor side. This could be due to a fault in the motor itself (for instance, insulation failure causing a winding-to-winding short, or a phase-to-ground short).

It could also be a problem in the cabling (damaged insulation, water ingress, etc.). If a VFD trips the instant you try to run the motor, especially accompanied by blown fuses or a breaker trip, a shorted motor or cable is likely. In such cases, the current shoots up so fast that the drive may register it as an instantaneous “OC” fault.

Diagnosing this involves isolating the motor and testing with a megohmmeter (megger) to check insulation resistance. One should also visually inspect cables and motor terminals for signs of burning or damage.

Loose or Corroded Connections On VFD Overcurrent Faults

Loose or corroded connections in the motor circuit can also trigger erratic overcurrent faults. A high-resistance connection (for example, a loose output lug or an internal motor connection that’s barely hanging on) can cause momentary spikes as the connection makes and breaks under load. The drive might run fine until vibration jiggles a loose wire, then suddenly an arc or surge occurs and the drive trips.

It’s a good practice to tighten all power connections and inspect wiring whenever you encounter unexplained faults. In fact, loose power connections are a known culprit behind many overcurrent and overvoltage incidents. This often leads to blown fuses or drive damage if not corrected.

Incoming Power Supply

Another factor to consider is the incoming power supply. If the supply voltage is significantly low or fluctuating, the motor will draw higher current to produce the required torque. This is akin to a person pulling harder on a rope when the support is “soft”. Large voltage sags or phase imbalances can result in periodic overcurrent trips, especially during motor startup. For instance, a 3-phase supply with one weak phase can force the motor to draw extra current on the other phases, leading to an imbalance and an overcurrent fault.

Ensuring your input voltage is within specs (and balanced within a few percent on all phases) is important. If undervoltage is an issue, you may need to address the supply. This can be done through a tap change on a transformer, using a buck-boost transformer, or coordinating with the utility).

As mentioned earlier, a drive will also complain if asked to accelerate when the voltage is low. It’s trying to deliver torque but can’t get enough power, so it overdraws current and trips. In summary, clean and stable power to the VFD is as important as the mechanical side.

Ground Faults or Leakage

Finally, we should mention ground faults or leakage. Some VFDs have a specific “Ground Fault” alarm, but others may just register it as an overcurrent or short fault. A motor with partially shorted windings to ground might run but draw excessive current and heat up, causing an overload trip after a while.

If everything mechanically seems fine and your supply is good, yet you still get unexplained VFD overcurrent faults, consider having the motor hi-pot tested for insulation breakdown. A winding that’s internally damaged can cause current to creep beyond normal levels even if it doesn’t outright short out.

How Overcurrent Protection Prevents Damage (and Why Not to Ignore It)

At first glance, an overcurrent or motor overload trip is a nuisance – an unexpected stoppage in production. But remember, these protective trips exist for a very good reason. When your VFD flashes “Overcurrent” or “Overload”, it is preventing a potentially catastrophic scenario.

If the drive didn’t shut off in those moments, one of two things (or both) would likely happen: the motor would overheat rapidly (damaging its insulation, possibly to the point of burning out), and/or the drive’s transistors (IGBTs) or fuses would blow from the excessive current. In other words, a VFD overcurrent fault is likely saving you from a much costlier failure.

That said, frequent overcurrent faults are telling you something is wrong in the system that needs attention. It could be as simple as a need for a parameter tweak, or as serious as a failing motor. Ignoring the warning and repeatedly resetting the drive is not a solution – it’s a recipe for equipment damage and unplanned downtime.

For example, if a motor is regularly tripping on overload, the cumulative heating can gradually bake the motor’s insulation. The next thing you know, a $50,000 motor is smoking. Or if a drive is repeatedly hitting instantaneous overcurrent due to a misconfiguration, the stress on its power electronics can eventually cause them to fail (imagine slamming into a brick wall of current repeatedly – eventually something cracks).

Don’t Ignore VFD Overcurrent Faults

The key takeaway: don’t just reset and ignore overcurrent faults. Treat them as valuable clues. The drive is effectively acting as a smart sentry, indicating that “something’s not right – please check.” By investigating and addressing the underlying cause (whether it’s mechanical, electrical, or programming-related), you not only clear the immediate fault but also improve the long-term reliability of your equipment.

In short, the VFD’s protection features are your friends. They sacrifice uptime in the moment to save your hardware from destruction. Listen to them, find the root cause, and your system will thank you with many hours of smooth operation.

Troubleshooting and Fixing VFD Overcurrent Faults

When you encounter an overcurrent or motor overload trip, a systematic approach to troubleshooting will save you time and frustration. Here are some guidelines to pinpoint the issue and resolve it:

Identify When The VFD Overcurrent Fault Occurs

Does it trip immediately when you start the motor, or only after running for a while? Perhaps it only happens at a certain speed or when a certain part of your machine operates. The timing gives clues. An instant trip on startup often points to a short or severe mechanical jam.

A trip after some time running might suggest a gradual overload or an overheating motor. Note the fault code and any patterns (e.g., always around 50 Hz, or always when you try to accelerate quickly).

Inspect The Motor And Load

Before diving into drive parameters, do a physical check. Can you turn the motor and driven equipment freely by hand (with power off, of course)? A stiff or stuck mechanism could be the culprit. Look for signs of mechanical stress: belt fragments, jammed gears, abnormal noise before shutoff, etc. Also, feel the motor – is it extremely hot?

Overload trips might leave the motor hot to the touch (use proper safety; if it’s too hot, let it cool first). If you suspect a jam, fix that issue (clear the blockage, repair the gearbox, realign the load) before anything else. The drive was just reacting to this problem.

Check For Electrical Faults

With the motor still isolated from running, perform some electrical tests. Measure phase-to-phase and phase-to-ground resistance on the motor with a multimeter or megger. You’re looking for very low resistance or continuity where there shouldn’t be (which indicates a short or ground fault). Inspect the motor terminal box – any burned smell or discolored wires? What about the cable from drive to motor – any cuts or crushed sections?

If you find an obvious electrical fault, that must be repaired (or the motor rewound/replaced) before you run the drive again. Also verify that all power connections (input and output) are tight. A loose output connection can mimic a short under load by sparking and causing spikes.

Review VFD Alarms And Settings

Most modern VFDs have a fault log that records the last few trips. Check if it’s consistently “OC at X Hz” or “OL trip after Y seconds”. This can reinforce what conditions are triggering it. While in the drive’s settings, double-check the motor data (voltage, FLA, etc.) and any overload settings as discussed.

Ensure nothing looks obviously misconfigured – like a motor current that’s way off, or a current limit that’s unusually low. If you’re not sure, you can even do a parameter reset to defaults for the drive and re-program from scratch (if you suspect some setting went awry).

Test Run Cautiously

After any adjustments (or after fixing a mechanical issue), try running the system under a controlled condition. If you changed acceleration times, see if a slower ramp gets you running. Monitor the motor’s current either via the drive’s display or with an ammeter clamp if possible. This can tell you if you’re still near the limit.

If the motor current at full load is, say, 98% of drive rating, you have almost no safety margin – consider that when evaluating solutions.

Implement The Fix For VFD Overcurrent Faults

Depending on what you found, the solution could be: adjusting a parameter (longer accel time, proper motor data entry, raising the overload threshold slightly if it was set too conservative), repairing mechanical parts (lubricating bearings, replacing a sheared keyway, etc.), addressing electrical issues (tightening connections, replacing a bad motor or cable), or upsizing/upspecing the drive or motor if they’re simply not adequate.

Often, it’s a combination of tweaks. The key is to verify after each change whether the fault still occurs. Tackle the most likely causes first, one at a time, so you know what ultimately resolves it.

Pro Tip

Many drives have built-in diagnostic info that can help. For example, some will display the current at trip or the time profile of the overload. Use those if available. Also, if your process can tolerate it, try running the motor uncoupled from the load (no mechanical load) as a test.

If the drive still trips with the motor spinning freely, you almost certainly have an electrical/drive issue (since no mechanical load is present). If it runs fine unloaded but trips when coupled, the problem is mechanical or load-related.

Upgrading Your VFD to Prevent VFD Overcurrent Fault Issues

Sometimes the ultimate “fix” is selecting a better-suited drive for the job. If your application inherently pushes a motor to its limits (or beyond), you’ll want a VFD that can handle those conditions gracefully. One solution is to choose a drive with a higher surge current capacity.

Many industrial VFDs advertise overload ratings – for instance, “150% for 60 seconds” or even “200% for 3 seconds.” These drives can tolerate short bursts of high current without tripping. This is ideal for heavy startup loads or occasional transients. By upgrading to a unit with a robust overload tolerance, you can often eliminate nuisance trips.

Look for VFDs that also offer advanced current control and protection features. Some modern drives have “auto-torque boost” or “stall prevention” logic that will automatically modulate the motor speed to avoid a trip. Essentially, instead of blindly pushing current until a fault, the drive will sense the impending overload and temporarily ease off (for example, by slightly reducing output frequency) to keep running without crossing the threshold.

This can be a game-changer in processes that experience brief overloads – the drive manages the situation without shutting down entirely.

Look For Auto-Tuning Features

Using the drive’s auto-tuning function can also help. Auto-tune measures the motor’s characteristics and refines the drive’s control algorithms (especially in sensorless vector mode). A well-tuned drive knows exactly how much current to give for a certain torque, which can prevent overcurrent spikes due to control inefficiency. If you haven’t performed an auto-tune, it might be worth doing (follow the manufacturer’s procedure, usually with the motor unloaded).

When selecting a new drive, pay attention to the duty class. If your environment or load is harsh, consider drives labeled for heavy-duty or industrial use, rather than general purpose. These often have beefier components (bigger IGBTs, better cooling, etc.) to handle stress. Also consider adding line reactors or filters if you have issues with input power quality – reactors can smooth out current spikes from the supply side and reduce nuisance tripping from minor surges.

Top Quality Brands Addresing VFD Overcurrent Faults

Top-quality brands like ABB, Hitachi, Lenze, and Eaton offer drive models with excellent overload handling and smart tuning features. For example, ABB’s ACS series drives and Hitachi’s SJ/P1 drives are known for their high surge capacity and advanced motor control algorithms. Lenze’s AC Tech (SMV series) drives and Eaton’s industrial drives (such as the PowerXL series) likewise provide robust overcurrent protection and adjustable trip settings.

These modern VFDs can adapt to demanding applications – some even let you set specific trip curves or enable automatic restart strategies for transient faults. The investment in a more capable drive can pay off quickly by keeping your process running without constant interruptions.

In summary, if you find that you’re “fighting” your drive’s limits regularly, it may be time to upgrade to a drive that better fits your needs. It’s not just about raw horsepower – it’s about the drive’s ability to handle the way you operate (fast starts, heavy loads, etc.). Choosing a VFD with a comfortable margin will give you more reliable performance and peace of mind.

Keep Your Motors Running – We’re Here to Help!

Understanding and addressing VFD overload and VFD overcurrent faults will go a long way toward maximizing the life and uptime of your equipment. By recognizing the common causes – from mechanical jams to misconfigured settings – you can take proactive steps to prevent trips before they shut you down. The fixes can be as straightforward as tweaking a parameter or as involved as upgrading hardware, but either way, the result is a more robust and reliable system.

Always remember: those fault alarms such as VFD overcurrent fault are telling you something. Taking a bit of time for preventive maintenance and proper tuning can save you from major headaches and costly downtime. Keep the drive’s environment and connections in good order, ensure your motor isn’t being pushed past its limits, and choose the right equipment for the job. These practices will help you avoid unexpected shutdowns and maintain smooth operations.

When It Might Be Time For Assistance With VFD Overcurrent Faults

However, if you’ve done all you can and that VFD still keeps tripping or the motor isn’t happy, it might be time for expert assistance or even a more capable drive. Precision Electric is here to support you. We have decades of experience in VFD troubleshooting, repair, and system design.

Our team can help diagnose stubborn overcurrent faults, repair or replace faulty drives and motors, and guide you in selecting a new VFD that can handle your application’s demands. Don’t let recurring drive trips grind your production to a halt – we’re just a call away and ready to help get you back on track.

Contact Precision Electric for professional VFD and motor solutions. You can reach us at 574-256-1000 or through our website’s contact page. We’ll gladly provide a consultation to keep your equipment running smoothly. With the right drive and proper care, you can put overcurrent faults behind you and trust that your VFD system will run reliably for years to come.
