Why Every Modern Plant Relies on a Servo Motor

Industrial production keeps accelerating. Consequently, designers require motion systems that stop on a dime, change direction instantly, and hold position exactly where commanded. A servo motor does all three. This closed‑loop, brushless machine pairs a high‑resolution encoder with a responsive servo drive to deliver repeatable, high‑torque motion in a compact frame. Although general‑purpose induction motors still dominate bulk power applications, engineers now select servo technology whenever accuracy, speed, and flexibility matter.

How a Servo Motor Works—and Why That Matters

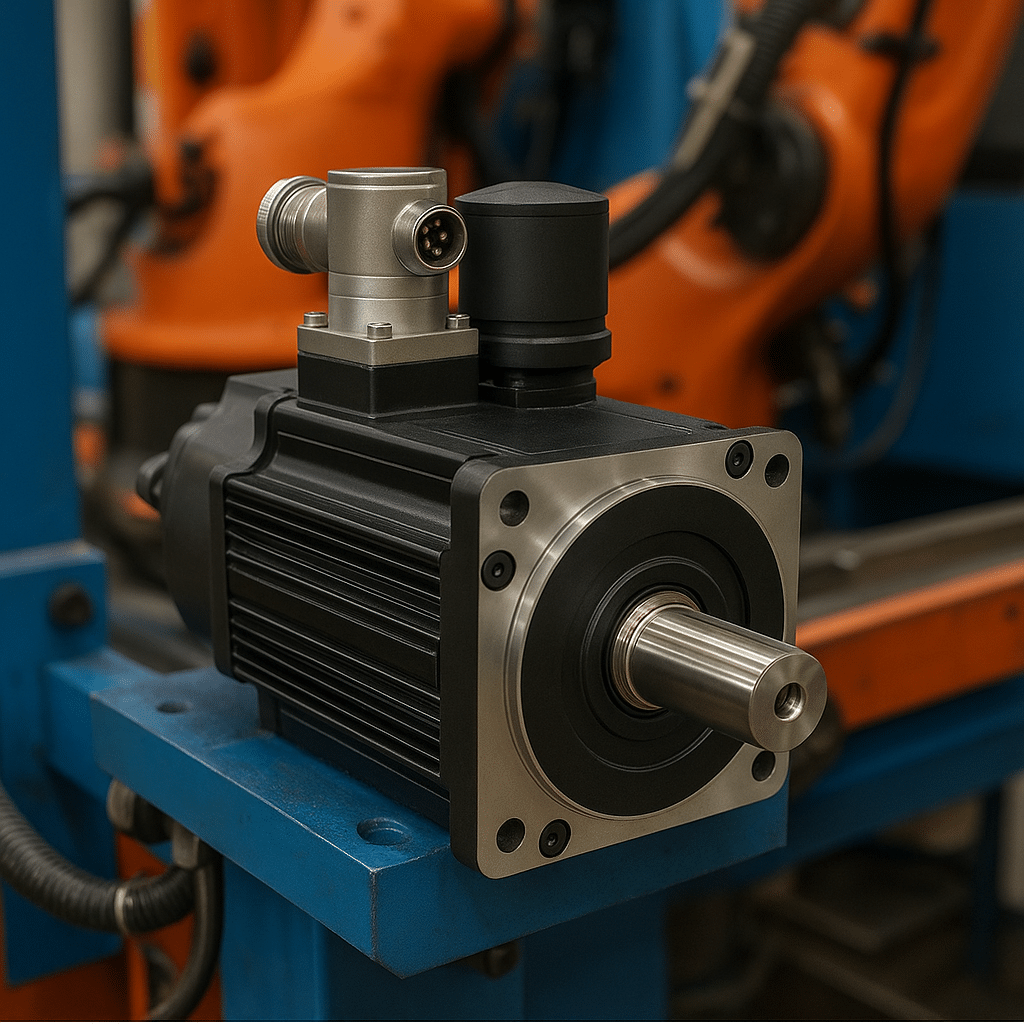

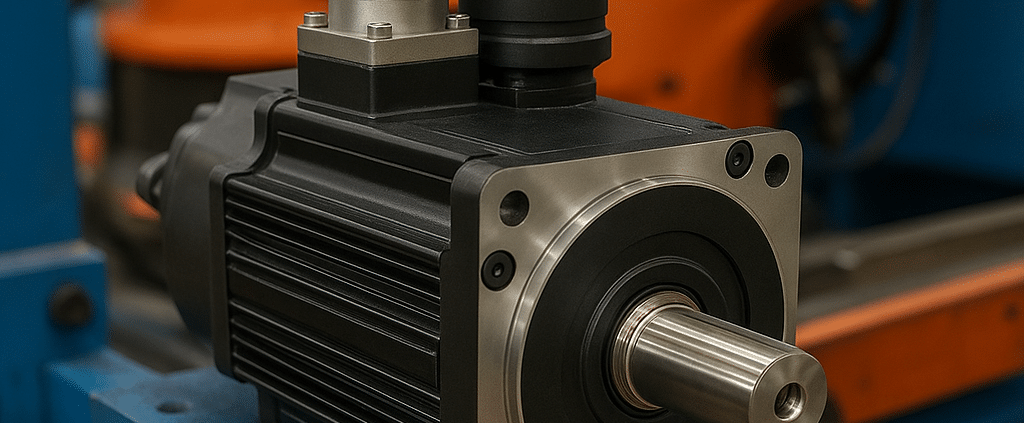

At the heart of every servo motor is a permanent‑magnet rotor, three‑phase stator, and a digital feedback device. The encoder (sometimes a resolver) reports position to the drive every fraction of a millisecond. Therefore, the drive energizes the windings with exactly the right current vector to deliver commanded torque. Because feedback is continuous, a closed‑loop motor corrects disturbances instantly and can hold full rated torque at zero speed—something a VFD‑fed induction machine cannot achieve. Moreover, peak torque that is two to three times continuous rating lets machines accelerate faster and shorten cycle times.

Modern brushless servo motors reach base speeds of 3 000 rpm or more; yet they still deliver steady torque at 5 rpm for precision positioning. Hitachi’s AD Series, for example, advertises a 500 Hz speed‑control bandwidth, enabling sub‑millisecond response. Because the rotor carries no windings, inertia stays low and efficiency stays high.

Key Specifications That Drive Selection

1. Torque ratings. Size by continuous stall torque and check that peak torque covers worst‑case acceleration loads.
2. Speed range. Choose a base speed that balances gearbox ratio and required linear velocity.
3. Feedback type. Absolute encoders remove homing routines, whereas incremental devices keep initial cost down.
4. Inertia match. Keep reflected load inertia within 10 × motor inertia; otherwise add a gearbox or belt reduction.
5. IP rating and options. Food plants often specify IP69K stainless housings, while machine‑tools accept IP65 cast‑aluminum frames.

For detailed sizing instructions, review our in‑house servo tuning checklist. It walks through motion profiles, RMS torque calculations, and safety margins, ensuring your servo motor is never under‑specified.

Servo Motor vs. Stepper vs. VFD‑Controlled Induction: A Quick Comparison

Stepper motors excel at low‑cost, low‑speed tasks; however, they lose torque rapidly above 500 rpm and can miss steps under shock load. Conversely, an industrial servo delivers constant torque over its full speed band and reports position errors to the controller, guaranteeing accuracy. Induction motors driven by VFDs handle high horsepower economically, yet they struggle to hold torque at zero speed unless over‑sized and fan‑cooled. Therefore, whenever precision, dynamic response, or energy efficiency top the priority list, a servo motor wins.

Meeting IEC and NEMA Standards With Confidence

Leading manufacturers certify their AC servo motors to IEC 60034 for temperature rise and ingress protection and to IEC 61800‑5‑2 for functional safety. Meanwhile, NEMA ICS 16 defines naming, feedback, and performance metrics in North America. When you source ABB’s BSM Series, you get cURus, CE, and ISO‑9001 documentation out of the box. Consequently, your machine qualifies for both UL field inspection and CE marking with minimal paperwork.

Real‑World Results: Five Proven Use Cases

Because proof beats theory, consider these projects:

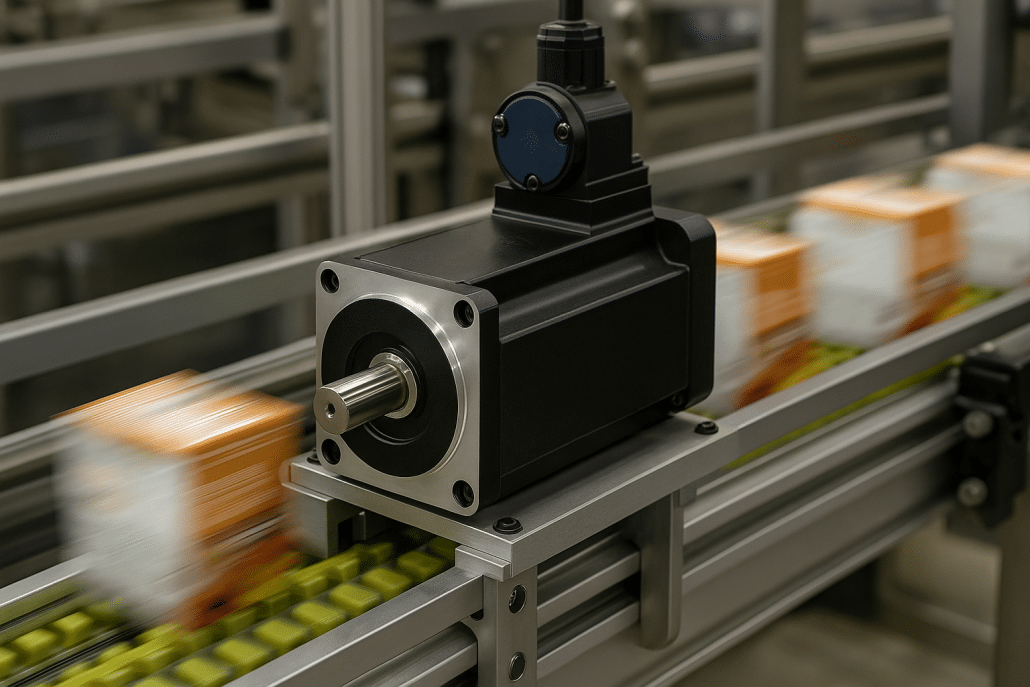

• Packaging line upgrade – Switching from pneumatics to servo motors raised carton throughput by 20 % while slashing mis‑seals. Yaskawa case data confirms positioning repeatability of ±0.1 mm.
• Semiconductor wafer prober – An Elmo Motion system lifted test speed 30 % through 2 kHz current‑loop bandwidth, saving one hour per lot.
• CNC rotary axis – Sanyo Denki’s low‑inertia model increased angular acceleration 20 % and cut non‑cutting time every cycle.
• Indexing conveyor – Replacing a constant‑run motor with a torque control motor halved energy use and eliminated clutch maintenance.
• Print registration – A Kollmorgen precision motor held color alignment within ±0.05 mm at full press speed.

Best Practices for Selecting and Maintaining Your Servo Motor

First, run sizing software and validate inertia ratios. Next, choose an encoder resolution that fits accuracy targets but avoids excess data bandwidth. Additionally, use shielded motor and feedback cables, keep power and signal runs separate, and terminate shields correctly. During commissioning, enable the drive’s auto‑tune, then fine‑tune proportional, integral, and derivative gains to minimize settling time. Finally, schedule routine vibration checks and keep fins clean to extend bearing life.

Need a refresher on fault tracing? Our cornerstone guide on VFD over‑voltage faults details oscilloscope methods that apply equally to servo drives. Likewise, the article covering over‑current trips explains how to spot reflected inertia problems, and our deep dive into ground‑fault detection shows correct shield terminations.

Recommended Products and Categories

Precision Electric stocks the full range of motion control motors and accessories you need:

• AC Variable‑Frequency Drives for large induction motors.
• Input Line Reactors to protect sensitive servo drives.
• Output Load Reactors that smooth PWM waveforms.
• ABB Servo Solutions ready to ship from stock.
• Yaskawa Sigma‑7 Motors for ultra‑high dynamics.

Still deciding? Review our obsolete‑drive replacement guide for retrofit tips that equally apply when upgrading to encoder motors. Additionally, our cooling‑system checklist helps you keep cabinets within spec.

Conclusion: Small Motor, Huge Impact

When accuracy, flexibility, and uptime determine profit, a servo motor offers unbeatable value. By combining fast feedback, robust standards compliance, and proven best practices, you can boost throughput and reduce scrap in almost any machine. Therefore, now is the perfect time to evaluate where positioning motors can enhance your production line.
