Description

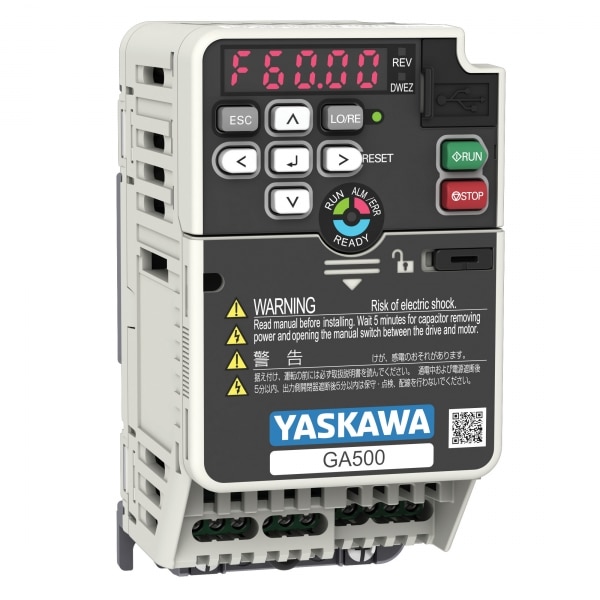

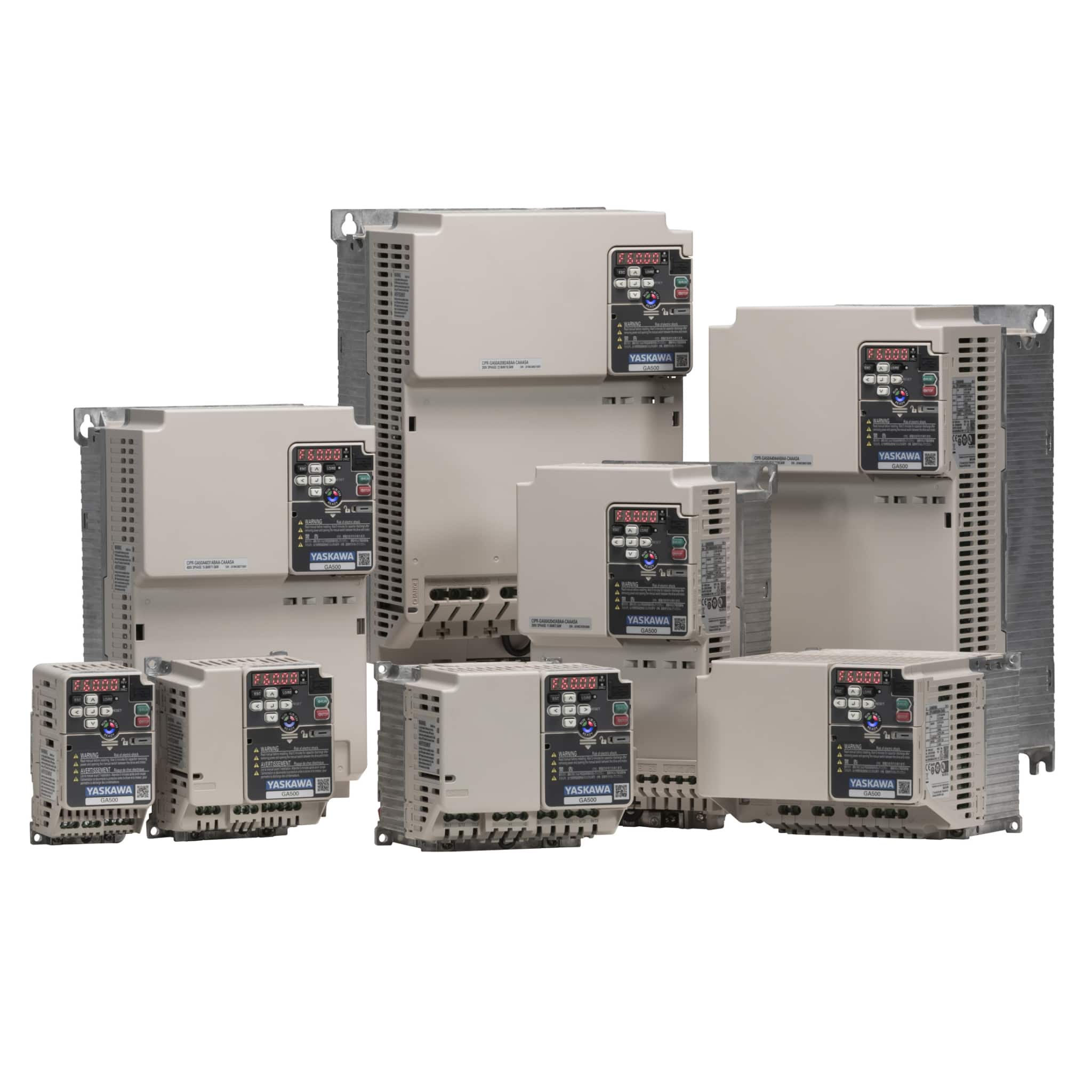

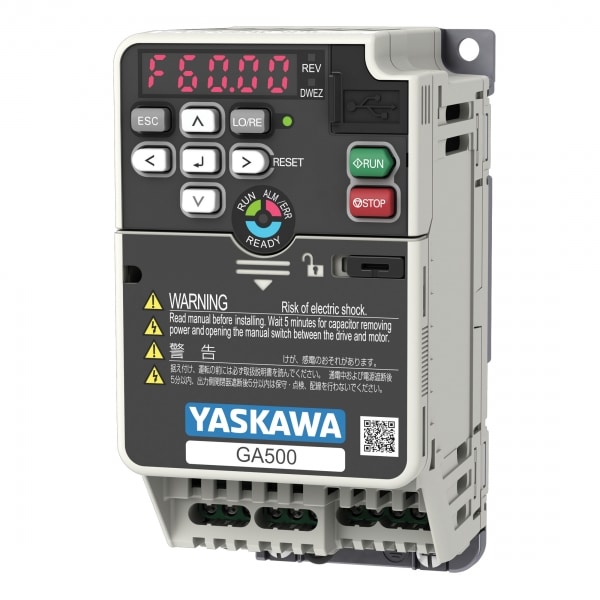

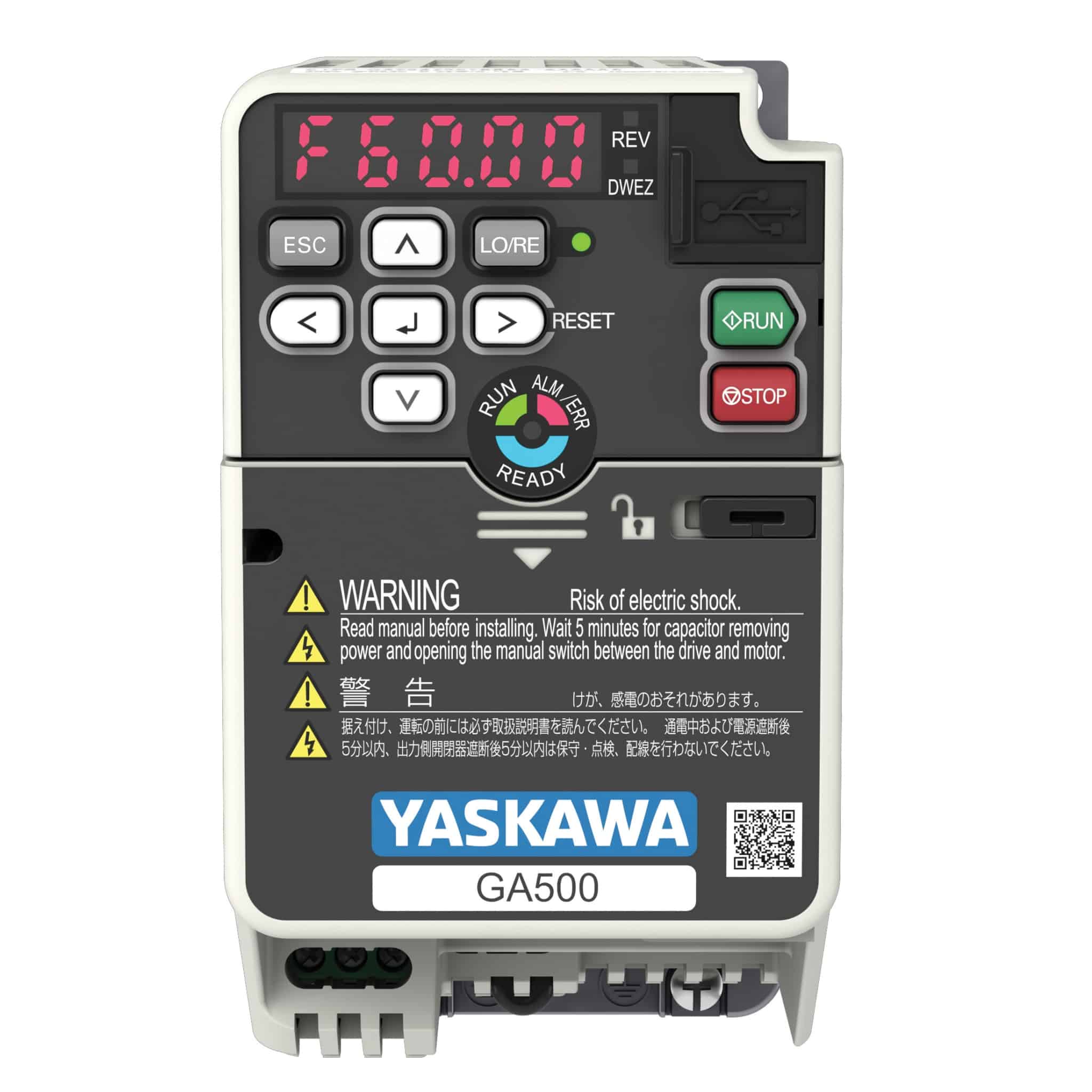

Manufactured all over Europe, GA500 is Yaskawa's answer to the demands for a easy to use, sustainable and flexible drive. For this reason, each of the drives have a wide power/voltage range and are coated to withstand harsh environments. Notably, both normal duty and heavy duty drives can withstand 110% and 150% overload respectively for up to 60 seconds. As a result, the GA500 is favorable for both normal and heavy duty applications.
The GA500 precisely controls induction, permanent magnet, and synchronous reluctance motors providing versatility to run a variety of applications with just one drive. GA500 supports 200 V to 480 V input for single and 3-phase voltages.
Besides the robust performance, the GA500 is available in the IP20 enclosure. As a result, systems that don't need protection against touch by fingers or liquid protection will find the GA500 as ideal. In addition to this, the flexible design of the GA500 enables reliable use under a variety of environment conditions.
Installation of the GA500 is made simple with the keyhole mounts as well as the optional ring kit and DIN rail. Parameter configuration is done via the integrated keypad and display, which allows parameter setup and control of the drive. The built in braking transistor, optional EMC filter, and 24 VDC power supply also mean reduced external components during installation.
Flexibility of the GA500 is also empowered by the optional accessories, including a network communications adapter, a EMC filter, LCD keypad attachment, LCD keypad, Bluetooth keypad, AC reactors, DC chokes, and external heatsink attachment. Installers can also program the drive with the DriveWizard and DriveWorksEZ software along with the DriveWizard mobile app that turns a smartphone or tablet into a interface for a GA500 drive.
Key features of the GA500:
- Program Without Power
- Parameter Backup/Copy
- Built-in EMC filter
- Low ambient operation (-10°C)
- IP20/Protected Chassis, IP20/UL Type 1 enclosure
GA50U2004ABA GA500 Features
1. GA50U2004ABA DriveWizard
DriveWizard Industrial and the DriveWizard mobile app can both be used to interact with a GA500 drive. DriveWizard Industrial is for PC and the DriveWizard mobile app is for a smartphone or tablet.
- DriveWizard Industrial
- Manage your parameters online or offline
- Create configurations offline, then later connect and download them to the GA500
- Connect via USB, and interface with the GA500 even without main power
- Monitor using a dashboard or dynamic variables
- Create reports for exporting and emailing
- DriveWizard Mobile App
- Scan drive QR codes for each access for drive information and status
- Intuitive parameter editing with help and search function
- Custom parameter and monitor lists
- Parameter backup/verify with or without main power applied to the drive
- Yaskawa Drive Cloud Service
- Export to DriveWizard Industrial

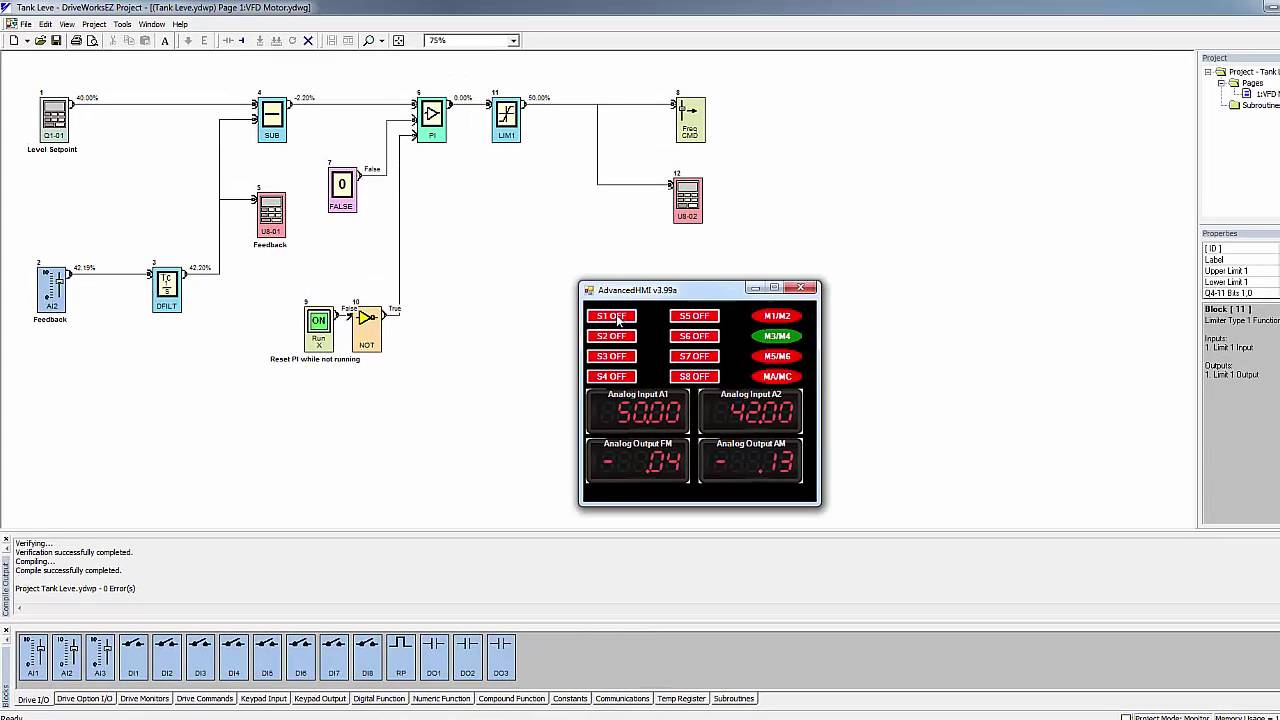

2. GA50U2004ABA DriveWorksEZ
DriveWorksEZ allows the user to:
- Create simple custom logic and eliminate and external controller
- Drag-n-drop graphical interface
- 400+ function blocks
- Up to 100 connections
- Offline simulation mode for testing without the risk of an application malfunction
- Protection of intellectual property with locked projects
Other GA50U2004ABA GA500 Features
1. Input Ratings
- Supply Voltage
- 200 to 240 V+10%/-15%
- 380 t0 480 V +10%/-15%
- Supply Frequency
- Overload Capacity
- 110%/1min (Normal Duty)
- 150%/1min (Heavy Duty)
2. Output Ratings
- Output Power
- 240 V, Single-phase: 1/6 to 5 HP (0.1 to 3.7 kW)
- 240 V, Three-phase: 1/6 to 30 HP (0.1 to 22 kW)
- 480 V, Three-phase: 1/2 to 40 HP (0.2 to 30 kW)
- Output Voltage Accuracy
- Output Frequency
- 0 - 590 Hz (special software for up to 1000 Hz)
3. Ambient Conditions
- Temperature
- Storage: -40 to +70°C (short-term temperature during transportation)
- Operating: -10 to +50°C (IP20/Protected Chassis), -10 to +40°C(IP20/UL Type 1), up to +60°C with derating
- Altitude
- Up to 1000m without derating, up to 4000m with derating
- Humidity
- 95% RH or less (non-condensing)
- Shock
- 10 to 20 Hz: 9.8 m/s^2
- 20 to 55 Hz: 5.9 m/s^2
4. Enclosure
- Ingress Protection
- IP20/Protected Chassis
- IP20/UL Type 1
5. Programming
- Keypad
- Multi-directional buttons
- Optional LCD keypad
- Optional Bluetooth keypad
- Display
- Built-in multi language LED text display
- LED status ring
- PC
6. Control Specifications
- Control Method
- V/F Open Loop (IM/PM)
- Advanced Open Loop (PM)
- EZ Open Loop Vector
- Motor Control
- Induction Motor (IM)
- Interior or Surface Permanent Magnet Motor (IPM/SPM)
- Synchronous Reluctance Motor (SynRM)
- Safe Torque Off (STO)
- Braking
- Build-in braking transistor
7. Fieldbus Connectivity
- Built-in
- Modbus RTU
- Optional
- CANopen
- CC-Link
- DeviceNet
- EtherCAT
- Ethernet/IP
- Ethernet/IP Dual Port
- MECHATROLINK-II
- MECHTROLINK-III
- Modbus TCP
- Modbus TCP dual port
- PROFIBUS-DP
- PROFINET
- LONWORKS
8. I/O Specifications
- (7) Multi-function digital inputs (24 VDC)
- (2) Multi-function analog inputs (0 +/-10 VDC, 4-20 mA)
- (1) Multi-function pulse input
- (2) Safe Torque Off (STO inputs)
- (1) Fault relay output (form C)
- (2) Multi-function photocoupler outputs
- (1) Multi-function analog output (0 - 10 VDC, 4 - 20 mA)
- (1) Multi-function pulse output
- (1) RS-485 (Modbus RTU)
9. Application Features
- PID Control
- The PID control function creates the options to adjust the proportional gain, integral time, and derivative time that has an effect on the bias between the target value and the feedback value to match the target value to the detected value. Use this function to adjust the drive output to accurately match the flow, pressure, and temperature in the application match the target value.
- Setpoint Selection
- Sleep Mode
- EMC Filter
- Eliminates the need for external components with additional wiring, thereby saving additional space inside the control panel
- Speed Search
- The speed search function detects the actual speed of a coasting motor, then restarts the motor before the motor stops. Use speed search with these conditions:
- Continue operation after momentary power loss
- Switch from commercial power supply to drive power
- Restart a coasting fan
- Torque Detection
- The overtorque/undertorque detection function prevents damage to machinery and loads.
- Overtorque is when there is too much load on the machine. If the motor current or output torque is at the overtorque detection level for the overtorque detection time, the drive will output an alarm and turn off the output.
- Undertorque is when a load suddenly decreases. When the motor current or output torque is at the undertorque detection level for the undertorque detection time, the drive will output an alarm and turn off the output.
- The undertorque detection function can detect these conditions:
- Machine belt cuts
- Unusual operation of the electromagnetic contactor on the drive output side
- Clogged output side air filters in fan and blowers
- Damage to blade tips and broken string
- Dwell Function
- The dwell function momentarily holds the output frequency at start and stop. This prevents motor speed loss when you start and stop heavy loads. It's also enabled when backlash on the machine side causes sudden movement at the start of acceleration and deceleration.
- At the start of acceleration, the drive uses the output frequency and acceleration time set for the dwell function to automatically operate at low speed to minimize the effects of backlash. Then, the drive can accelerate again. The dwell function operate the same for deceleration.
10. Maintenance & Diagnostics
- DriveWizard/DriveWizard Mobile
- Program/app for diagnostics
- Data Logging
- LCD Keyboard is capable of backing up and data logging information up to 32 GB in size
- Monitoring
- Fault tracing
- Fault history
11. Standards Compliance
- UL61800-5-1
- EN61800-2
- IEC/EN61800-5-1
- ISO/EN13849-1 Cat. III PLe, IEC/EN61508 SIL3 (2 Safety inputs, 1 EDM output)
