VFD Programming Guide: Faster Setup, Fewer Faults

Estimated reading time: 6 minutes

Variable frequency drives (VFDs) save enormous energy and deliver precise motor speed, yet many technicians still groan when they see a flashing cursor on a drive keypad. The root cause is almost always VFD programming because it is the art of translating real‑world requirements into hundreds of device‑specific parameters. Our latest cross‑brand study shows the wrong interface or manual can add hours of downtime and thousands in lost production. Consequently, this mobile‑friendly guide distills that whitepaper into clear actions you can take today.

Why VFD Programming Is Difficult

Every drive performs the same electrical trick — converting fixed mains power into variable‑frequency output. However, each manufacturer names, orders and hides parameters and handles variable frequency drive programming differently. Numeric codes such as P101 or A002 look harmless until a stressed technician tries to locate “Accel Time 1” and realizes the manual lists 400 similar codes.

Additionally, many drives ship with multiple access levels; basic mode displays only 10 % of settings while the rest lurk behind passwords. If the passcode is missing it’s usually because the keypad becomes a roadblock instead of a tool.

Translation errors add a surprising layer of confusion. One early Lenze i550 manual rendered “Enable Coast Stop” as “Build Up Bank,” causing operators to wonder if they needed an external capacitor. In Hitachi documentation, “Restriction” meant “Password lock,” which misled several integrators in our survey.

Consistency problems also plague parameter sets. Two drives might both protect against over‑current, yet one calls the limit “Ix,” the other “I Limit.” Without a cross‑reference, even experts hesitate because understanding these root causes is the first step toward leaner, safer VFD programming.

Brand‑by‑Brand Interface Comparisons

ABB — Plain‑Language Menus

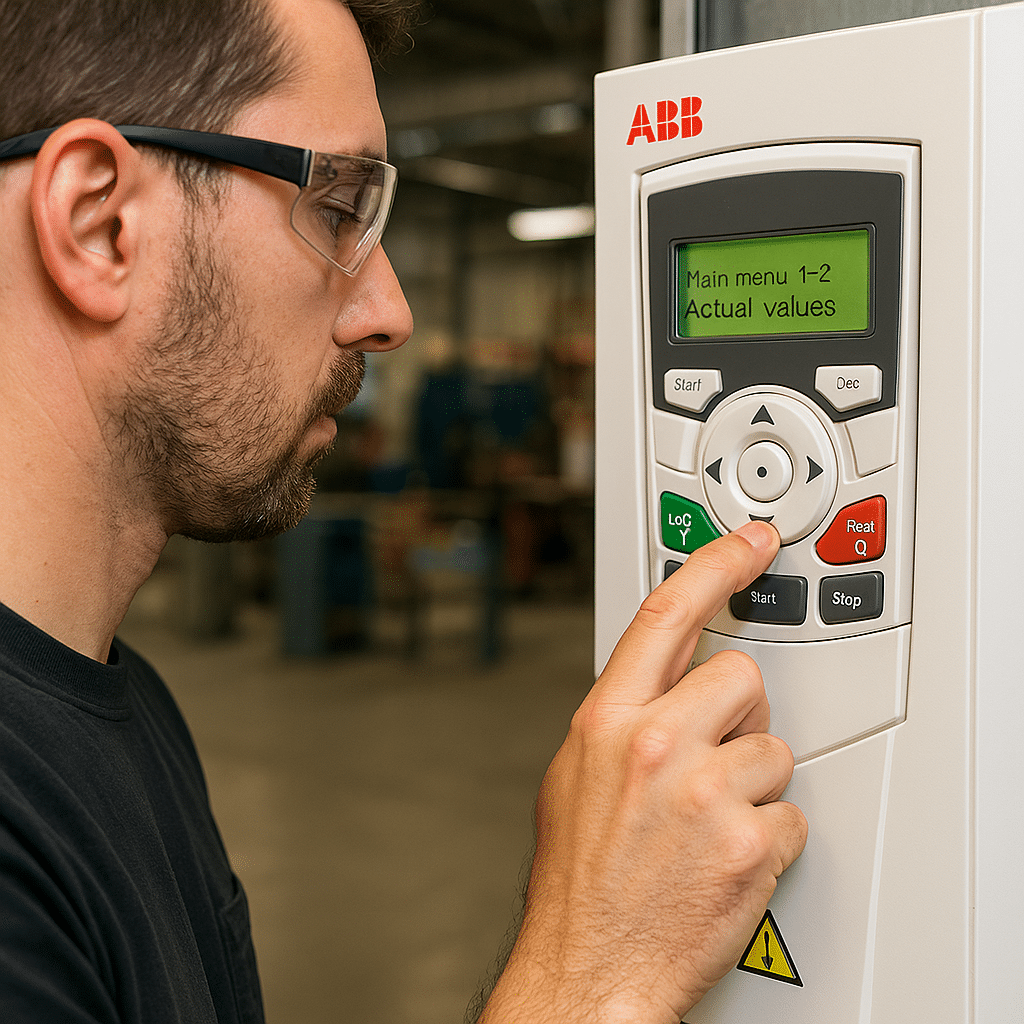

ABB’s alphanumeric display spells out parameters in English and offers a menu that shows only values changed from factory defaults. Their free Drive Composer wizard basically guides users through motor data and I/O mapping in minutes. Because the interface is descriptive, technicians can commission a conveyor without opening the manual.

Lenze AC Tech — Numeric P‑Codes

Lenze SMVector drives rely on a two‑digit LED display and numeric P‑codes. Users must enter 225 after power‑up to pass the locked “PASS” prompt before any change is possible. The hardware is robust, yet constant code look‑ups lengthen every adjustment.

Hitachi — Hidden Behind B037

Out of the box, Hitachi WJ200 units hide most settings. Unless B037 is set to 00 nothing beyond basic frequency is accessible. As a result, crews misdiagnose perfectly good hardware. Unfortunately, early manuals failed to highlight this critical step.

Eaton — The “Byzantine” Menu Tree

Eaton’s PowerXL series uses a deep category tree. Common parameters such as start‑command source may be three clicks down within “Diagnostics → Control → Inputs.” Field teams report spending extra hours tracing this tree under production pressure.

Danfoss — Feature‑Rich, Manual‑Heavy

Danfoss VLT and VACON drives include every feature imaginable but document them in guides that exceed 300 pages. The nested numbering system (for example 3‑41) makes cross‑referencing slow unless technicians use the paid MCT‑10 software.

Solutions & Best Practices For VFD Programming

1. Unlock advanced menus first. Store default passwords (ABB 375, Lenze 225, Hitachi B037 = 00, Eaton Level 2 code) in your maintenance binder. Unlocking early exposes every setting and prevents rabbit‑hole diagnoses.

2. Use vendor software. Tools such as ABB Drive Composer or Danfoss MCT‑10 list parameters in searchable trees and export backups. When time permits, connect a laptop rather than rely on small keypads.

3. Build cross‑brand cheat sheets. Create a simple table that maps acceleration time, current limit and reference source across your installed brands. Also, keeping laminated copies at each panel cut programming time by up to 60 %.

4. Schedule refresher training. Invite factory engineers for the first unit or at yearly intervals. This is because a four‑hour session often prevents dozens of future support calls.

5. Document every change. Many drives log only the current parameter value. Export a CSV after commissioning and store it in version control. If a future fault appears, you can compare files and see exactly which setting drifted.

6. Label the panel exterior. A small laminated tag listing model, firmware, unlock code and network address prevents frantic manual searches during a midnight shutdown.

Real‑World Case Study: Four‑Hour Delay Turned Twenty‑Minute Fix

A frozen‑waffle plant recently planned an overnight swap and VFD setup from an obsolete 10 HP drive to an Eaton PowerXL DG1. The electrician copied the wiring, powered up and watched an “E‑Stop Active” alarm flash. Because the DG1 lists alarms by text, the team assumed a field input was open, yet every contact measured closed. After midnight frustration set in, Precision Electric support suggested opening the DG1’s Diagnostics → Inputs screen.

Input X3 reported “External Interlock.” The quick‑start guide showed that, by default, X3 demands a jumper. Five minutes and one wire later the line restarted. Overall equipment effectiveness jumped from an 82 % baseline to 90 % once nuisance stops disappeared.

Recommended VFD Programming‑Friendly Products

When interface clarity matters, choose drives designed for fast VFD programming. Precision Electric stocks:

• AC Variable Frequency Drives
• ABB ACS580 & ACS880
• Hitachi WJ200 Series
• Lenze i550 & SMVector
• Input Line Reactors

Need guidance on selection? Call our engineers and reference this guide for priority support.

Troubleshooting & Resources

Bookmark these cornerstone tutorials so your team can solve the most common drive issues without delay:

• VFD Overvoltage During Deceleration
• VFD Overcurrent Faults
• VFD Will Not Start — Wiring Checks
• GFCI Breaker Trips with Lenze Drives

For brand‑specific manuals, download the official guides: Eaton DC1 Access Levels, Danfoss Top Ten Support Calls and Lenze SMV Quick‑Start.

Future Trends in Drive Interfaces

Manufacturers have taken note. The newest ABB ACS480 lets technicians clone parameter sets with a smartphone via Bluetooth® and displays QR codes next to active faults for instant manual lookup. Danfoss is rolling mobile NFC tags into its VLT Compact line so engineers can download an entire parameter file before touching a screwdriver. Similarly, Lenze’s i550 now supports a free EasyStarter cloud backup, eliminating the paid dongle. These improvements aim to make VFD programming as quick as PLC downloads.

Until every legacy panel is upgraded, keeping the best documentation, cheat sheets and software tools near the shop door remains your fastest path to stress‑free drive work.

Conclusion

VFD programming does not need to be a black art. Choose drives with intuitive menus, unlock hidden parameters early, rely on PC tools and maintain concise cheat sheets. These practices cut downtime, protect motors and improve plant efficiency.

Take the next step by downloading our full 14‑page whitepaper. Inside you will find brand‑specific parameter maps, password tables and a printable quick‑start checklist that you can tape inside every enclosure. The time you invest today will pay dividends the first time a drive faults at 2 a.m.
