Description
The ACS880 series represents a top range of single drives by ABB that is engineered for simplicity and compatible with a wide range of industrial applications. The range of ACS880 drives is well suited in industries like pulp and paper, mining, chemicals, metals, power plants, material handling, cement, oil and gas, sawmills and marine.
The range of ACS880 series is developed with precision in mind to meet the stringent demand of applications like cranes, winches, winders, extruders, conveyors, compressors, mixers, fans and pumps. They offer reliability and optimized performance when driving various types of AC motors.
You’ll find that configuring the ACS880 series is relatively easy with the aid of an intuitive control and PC based tools. The drives also feature direct torque control to deliver the much-needed precision in open and closed-loop control.
There are little chances of damaging the ACS880 series of drives during setup, as they are built with advanced safety features. These features allow integrators to configure the drives with ease and without worries.
The ACS880 series boasts a wide range of supported connectivities. They can easily be integrated into the major industrial communications network. This allows the drives to be easily monitored from a single control location.
With industrial solutions leaning towards a greener implementation, the ACS880 series is optimized for energy saving without compromising their performances. The information of the energy saving can be gathered for audit and improvisation purposes.
The key to ensuring a long lifespan of single drives is regular maintenance and servicing. The ACS880 drives are designed for easy servicing. Besides that, the memory unit of the drives is easily removable to facilitate commissioning and replacement.
Technical documentation for ABB Drives is available in our
Technical Library.
Superior Drive Performance:
ACS880-31-077A-5 - Modes Of Operation:
- V / Hz (Constant or Variable)
- Variable Torque Control
- Open-Loop Vector Control
- Closed-Loop Vector Control (with Encoder Option)
ACS880-31-077A-5 - Performance Features:
- Enclosure classes IP20, IP21 and IP55 for different environments
- Compact design for easy installation, commissioning and maintenance

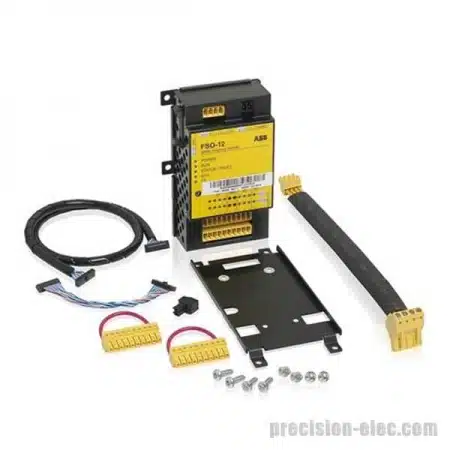

- Integrated safety including safe torque off (STO) as standard and the optional safety functions module, (TÜV Nord certified)
- Supports various motor types including synchronous reluctance motors
- Intuitive control panel with USB connection
- Removable memory unit for easy maintenance
- Drive composer PC tool for commissioning and configuration
- Primary control program - common software used throughout the ACS880 drive series
- Control unit supporting a wide range of fieldbuses, feedback devices and input/output options
- Coated boards as standard
- Controllable cooling fan
- Incoming air temperature measurement for protecting the drive from different temperature related failure mechanisms
- Built-in braking chopper, option for frame sizes R5 to R9
- EMC filter option
- du/dt filter option for motor protection
- Built-in choke
- Supporting optimized cabinet mounting with option (P940, +P944)
- Flange mounting option
ACS880-31-077A-5 - Input Ratings:
- Input voltage range
- 208-240 V
- 380-500 V
- 525-690 V
- Input voltage tolerance
- Phase
- Frequency
- Short circuit rating (UL 508c)
- 100,000 rms symmetrical amperes up to 600 V when input cables protected by class T
or similar type fuses
ACS880-31-077A-5 - Output Ratings:
- Horsepower (ACS880-01, Wall Mount)
- 0.75 - 350 HP @ 480 VAC
- 0.75 - 100 HP @ 230 VAC
- 5 - 250 HP @ 575/690 VAC
- Horsepower (ACS880-07, Cabinet-built)
- 60 - 1700 HP @ 480 VAC, 3 PH
- 50 - 3000 HP @ 575 VAC, 3 PH
- 50 - 3000 HP @ 690 VAC, 3 PH
- Horsepower (ACS880-17, Cabinet-built Regenerative Single Drives)
- 250 - 1950 HP @ 480 VAC, 3 PH
- 250 - 3300 HP @ 575 VAC, 3 PH
- 250 - 4250 HP @ 690 VAC, 3 PH
- Horsepower (ACS880-37, Cabinet-built Low Harmonic Single Drives)
- 250 - 1950 HP @ 480 VAC, 3 PH
- 250 - 3300 HP @ 575 VAC, 3 PH
- 250 - 4250 HP @ 690 VAC, 3 PH
- Overload capacity
- Heavy duty = 150% for 60 seconds every 5 minutes
- Light duty = 110% for 60 seconds every 5 minutes
- Frequency
- Voltage
- 0 to maximum input voltage (RMS)
- Motor types
- Asynchronous AC induction motors
- Permanent magnet synchronous motors and
- AC induction servomotors
ACS880-31-077A-5 - Protective Features:
- Overcurrent
- DC overvoltage
- Overtemp
- Drive heatsink above operating temperature, max ambient temperature exceeded
- Short circuit
- Short on motor output terminals
- Undervoltage
- Low voltage on drive input
- Loss of reference
- Analog input programmed for 4-20 ma but signal less than 4 ma
- Motor overtemp
- Excessive estimated motor temperature
- Loss of keypad
- Drive will trip if under keypad control and keypad communication is lost
- Motor stall
- Motor cannot achieve commanded speed due to excessive load
- Ground fault
- Ground fault detected in motor or motor cabling
- Motor phase fault
- Loss at one of the motor phases
ACS880-31-077A-5 - Environmental Ratings:
- Temperature
- 0 to 40°C (32 to 104°F).
- 0 to 55°C (32 to 131°F) w/ derate.
- No frost allowed.
- Cooling
- Enclosure (ACS880-01, Wall Mount)
- UL type 1 (IP21)
- UL type 12 (IP55)
- Enclosure (ACS880-07, Cabinet-built)
- UL Type 1 (IP22)
- UL Type 1 filtered (IP42)
- UL Type 12 (IP54)
- Enclosure (ACS880-17, Cabinet-built Regenerative Single Drives)
- UL Type 1 (IP22)
- UL Type 1 filtered (IP42)
- UL Type 12 (IP54)
- Enclosure (ACS880-37, Cabinet-built Low Harmonic Single Drives)
- UL Type 1 (IP22)
- UL Type 1 filtered (IP42)
- UL Type 12 (IP54)
- Altitude
- Sea level to 3300 ft. (1000 m) Derate 1% per 330 ft. (100 m) up to 13,128 ft. (4000 m)
- Humidity
- 0 to 95% RH non-condensing
- Vibration
- Max. 1 mm (0.04 in.) (5 to 13.2 Hz), max. 7 m/s2 (23 ft/s2) (13.2 to 100 Hz) sinusoidal
ACS880-31-077A-5 - Keypad:
- Display
- Keys
- 8 key keypad with tactile response
- Functions
- Output status monitoring
- Digital speed control
- Parameter setting and display
- Diagnostic and fault log display
- Motor run
- Local/remote toggle
- Graphical monitoring
- Remote mount Keypad may be mounted up to 9 ft. using appropriate cable (see Options for kit)
- Trip - Last three faults stored in fault history
ACS880-31-077A-5 - Control Specifications:
- Switching frequency
- Accel/decel
- Speed control accuracy 10% of motor slip, DTC, no encoder
- Skip frequencies
- Three configurable bands 0-max speed
- PC setup software
- Drive composer
- Drive composer pro
- Maximum output frequency
- Selectable operating modes
- 2-Wire
- 3-Wire
- Motor Potentiometer
- Hand/Auto
- PID
ACS880-31-077A-5 - Input / Output Specifications:
- Analog inputs
- Two differential current or voltage
- -10 to 10 V, Rin = 200 kΩ
- -20 to 20 mA, Rin = 100 Ω
- Resolution 11 bit + sign bit
- Analog outputs
- Two current outputs
- 0 to 20 mA, load < 500 Ω
- Frequency range 0 to 300 Hz
- Resolution 11 bit + sign bit
- Digital inputs
- Six digital inputs
- 15 V...24 VDC with internal or external supply
- Input impedance Pull-up or pull-down (PNP or NPN) (DI1 to DI5); NPN (DI6) 2.0 kΩ
- Filtering .04 ms hardware filter, digital filtering up to 8 ms
- Digital outputs
- Three relay outputs
- Form C
- Maximum switching voltage 250 VAC/30 VDC
- Maximum continuous current 2 A/30 VDC or 250 VAC
ACS880-31-077A-5 - Safety:
- Safe torque off (STO)
- E-stop cat 0
- Emergency stop category 0 (coast to stop) available as option (Cabinet-built drives only)
- E-stop cat 1
- Emergency stop category 1 (ramp to stop) available as option (Cabinet-built drives only)
ACS880-31-077A-5 ACS880 Drives Variants
The ACS880 drives are available in different variants that are optimized for their respective applications.
ACS880-31-077A-5 ACS880 Industrial Drives
These drives are built with both standard and optional industrial features to support almost any AC motors in the market, including permanence permanent magnet motors and synchronous reluctance motors. The drives have a wide range of supported connectivities and easily configurable. They are available in wall-mounted or cabinet housing with varying power capacity as follow:
- ACS880-01 - Wall mounted, Power range 0.55 to 250 kW
- ACS880-07 - Cabinet-built, Power range 45 to 2800 kW
ACS880-31-077A-5 ACS880 Regenerative Drives
The ACS880 regenerative drive series is optimized for cost savings by capturing and utilizing the braking energy of the motor before. The drives turned what would have been wasted heat into reusable energy for other equipment in the power distribution network. They are available in different mounting and power capacity.
- ACS880-11 - wall-mounted, Power range 2.2 to 110 kW / 380 to 500 V
- ACS880-17 - cabinet-built , Power range 45 to 3200 kW
ACS880-31-077A-5 ACS880 Ultra Low Harmonic Single Drives
The ultra-low harmonic single drives achieve unity power factor by successfully reducing the harmonics present in the drive input. This done solely by the internal harmonics mitigation module, without needing any external filters or special transformers. Besides that, the active supply unit of the drive ensures full motor voltage even the input voltage drops below the nominal level.
- ACS880 - 31 - wall-mounted, Power range 2.2 to 110 kW / 380 to 500 V
- ACS880 - 37 - cabinet-built, Power range 45 to 3200 kW
ACS880-31-077A-5 ACS880 Features
ACS880-31-077A-5 Connectivities
The ACS880 single drives are equipped with popular industrial connectivities that enable them to be integrated with ease into existing automation network. It supports the popular Fieldbus protocol that enables different industrial devices to communicate. Besides, the drives can be extended with I/O modules to further enhance its capability.
ACS880-31-077A-5 Integrated STO

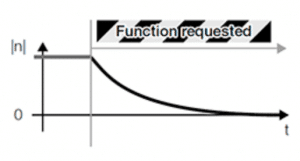

Each of the ACS800 series is built with safety in mind. They are equipped with the STO or Safe Torque Off, a common safety feature that is becoming more prevalent in the US. The STO ensures that no torque-generating energy drives the motor and prevents unintentional start-up. Customers do not need to install separate safety components with this built-in feature.
ACS880-31-077A-5 Direct Torque Control (DTC)
The ACS800 series uses DTC, an enhanced direct torque control technique for greater accuracy in motor control. Instead of regulating the motor current, DTC controls the flux and torque of the motor directly to provide high static and dynamic speed accuracy. This also eliminates the need for additional encoders for speed and position feedback in most applications.
(14.39 MB)
(16.19 MB)
