Product Overview
The i550 series is the latest simple, yet powerful range of frequency inverters manufactured by Lenze. These frequency inverters are designed for applications such as pumps, fans, and conveyors, traction, winding, forming, tool and hoist drives. They function within the power range of 0.25 to 132 kW.
Built with simplicity in mind, the i550 series of frequency inverters feature slim designs measuring from 60mm x 130mm. They are designed to fit into control cabinets easily. System installers can expect a hassle-free installation process and the potential of expansion as various plug-on modules can be added for enhanced functionality.
Lenze has built the i550 series with the future in mind. It complies with the EN 50598-2 a standard of energy efficiency factor on power drive systems and motor starter that takes effect in 2020. The frequency inverter features the VFC-ECO energy-saving function to minimize power consumption.
Besides the basic functions of a frequency inverter, units from the i550 series are built to work with a wide range of communication interfaces. This includes CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, PROFIBUS, PROFINET, POWERLINK, and IO-Link. These communications can be activated by installing the relevant plug-on module.

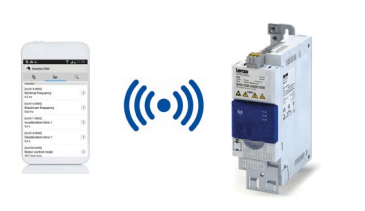

The i550 series of frequency inverters are versatile in setup and parameter configurations. Technicians can utilize the keypad or smartphone app to access the setup menu to configure various motor and application functions on the frequency inverter.
Key features of the i550 series.
- Space saving design: 60 mm wide, 130 mm deep, also zero-clearance mounting.
- Innovative interaction options enable better set-up times than ever.
- The wide-ranging modular system enables various product configurations depending on machine requirements.
- i500 is recommended for applications for pumps, fans and conveyors, traction, winding, forming, tool and hoist drives
I5CA5P02000VA1000S i550 Series Features
[PRODUCT SKU] 1. i550 Setup Methods
The i550 series of frequency inverter has multiple avenues to set up the underlying parameter structures. The keypad is optimized for simple setups. Technicians can also use the smart keypad app for configuring simple applications or use the EASY starter tool for applications involving motor potentiometer or sequence control.
I5CA5P02000VA1000S 2. i550 Ease Of Installation
Installing i550 series frequency inverters is an efficient process. The frequency inverters are built with keyhole mounting and pluggable terminals to maximize efficiency. Without complicated procedures, system installers can save time and cost during the installation.
I5CA5P02000VA1000S 3. i550 Diagnostic
Faults and alerts on the i550 series frequency inverters can be tracked in several ways. These events are stored in the frequency inverters internal buffer and can be accessed by the EASY starter tool or the smartphone app. The built-in LEDs also serve as quick visual alerts for any faults that occur.
I5CA5P02000VA1000S i550 Series Other Features
I5CA5P02000VA1000S 1. Adjustable motor controls for three-phase AC motors
- V/f characteristic control linear/square-law (VFC plus)
- Sensorless vector control (SLV)
- Energy saving function (VFC-ECO)
- Servo control (SC-ASM) with feedback
- Sensorless vector control for synchronous motors (up to 22 kW)
I5CA5P02000VA1000S 2. Motor Functions
- Flying restart circuit
- Slip compensation
- Energy saving function (VFC-Eco)
- DC braking
- Oscillation damping
- Skip frequencies
- Automatic identification of the motor data
- Braking energy management
- Holding brake control
- Voltage add-function
- Rational Energy Ride Through (backup operation in case of mains failure)
- Speed feedback (HTL encoder)
- Brake resistor control (brake chopper integrated)
- DC-bus connection (400 V devices)
I5CA5P02000VA1000S 3. Application functions
- Process controller (PID)
- Process controller - sleep mode and rinse function
- Freely assignable favorite menu
- Parameter change-over
- S-shaped ramps for smooth acceleration
- Motor potentiometer
- Flexible I/O configuration
- Access protection
- Automatic restart
- OEM parameter set
- Sequence control
I5CA5P02000VA1000S 4. Monitoring
- Short circuit
- Earth fault
- Device overload monitoring (i*t)
- Motor overload monitoring (i²*t)
- Mains phase failure
- Stalling protection
- Motor current limit
- Maximum torque
- Ultimate motor current
- Motor speed monitoring
- Load loss detection
- Motor temperature monitoring (PTC and thermal contact)
I5CA5P02000VA1000S 5. I/O Extension
- Plug-in spring terminal
- External 24-V supply
- Choice of negative or positive logic (PNP/NPN)
- Standard I/O - 5 digital inputs, 1 digital output - 2 analog inputs, 1 analog output or
- Application I/O - 7 digital inputs, 2 digital outputs - 2 analog inputs, 2 analog outputs
I5CA5P02000VA1000S 6. Approvals
- CE, UL, CSA, EAC, RoHS2, IE2 in accordance with EN 50598-2
I5CA5P02000VA1000S 7. Interfaces
- External 24 V supply
- PTC/thermal contact input
- HTL incremental encoder (100 kHz)
- CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, PROFIBUS, PROFINET, POWERLINK, IO-Link
- Integrated brake chopper
- DC bus connection
